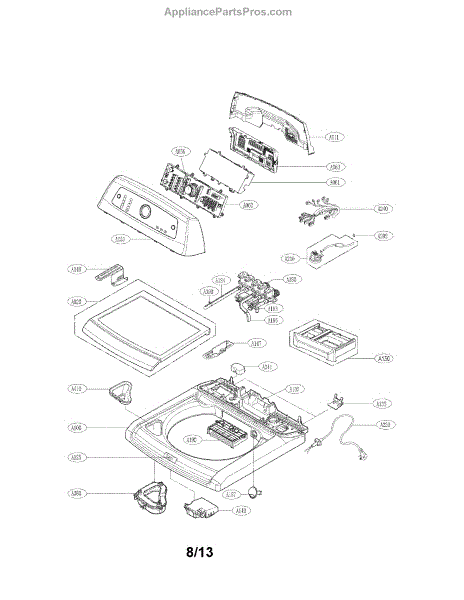

Parts for Kenmore 796.31513210 (79631513210, 796 31513210): Top Cover Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This Main PCB Power Control Board Assembly is the appliance's central electronic control module, restoring control of functions and user-interface signals when the original board fails. Designed as a direct replacement assembly for compatible units. What it does:

• Manages power and logic for the appliance's control circuits and user interface.
• Can resolve symptoms such as blank or unresponsive displays, unresponsive controls, or erratic electronic behavior.
• Works with existing wiring harness and connectors when matched to the correct replacement board.

• Disconnect power to the appliance before beginning any repair to avoid shock or damage.
• Handle the PCB by its edges and avoid static discharge; use ESD protection if available.
• Remove access panels and label or photo connectors before unplugging; reconnect exactly as removed.

The Lid Switch and Lock Assembly is an OEM component specifically designed for LG washing machines. It contains both the switch that detects when the lid is closed, as well as the metal lock mechanisms that securely engage the lid during active cycles. This switch contains a 47-inch wire harness with 6-pin plugs.

Symptoms of a bad lid switch and lock assembly include:

• The washer not starting or agitating with the lid open
• Inability to fully close or lock the washer lid
• Error codes related to sensed lid position issues

Causes of failure involve wear of lock moving parts combined with mechanical and electrical degradation over thousands of uses. Continuous hinge motions and detergent/cleaner exposure take their toll.

This Lid switch is also compatible with Kenmore units reliant on LG parts.

This bracket assembly secures internal components to the appliance frame, restoring stable support and alignment for panels or assemblies. Replacing a damaged bracket helps stop rattling and prevents misalignment that can affect operation. What it does:

• Provides a secure mounting point for panels, control boards, or internal assemblies
• Restores proper alignment to reduce vibration, noise, or rubbing parts
• Prevents loose components that can cause intermittent contact or wear
• Re-establishes structural support after impact, corrosion, or bracket failure

• One bracket assembly

• Verify power is disconnected before starting any repair
• Inspect mounting screws and adjacent parts; replace any damaged fasteners
• Tighten to manufacturer torque where specified and confirm proper alignment

This bracket assembly secures and supports internal appliance components, restoring proper alignment and stability to parts that have shifted or come loose. It provides a direct replacement to maintain safe, reliable operation. What it does:

• Provides a sturdy mounting point to keep panels, modules, or assemblies properly positioned
• Helps eliminate rattling, misalignment, or loose component movement
• Restores intended structural support after impact or wear
• Works as a direct-fit replacement to return original fit and function

• One bracket assembly

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate tools and keep fasteners for a secure fit; replace damaged screws as needed
• Inspect surrounding components and wiring for damage before reassembly

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement nozzle assembly directs and focuses the spray or dispense flow inside the appliance for reliable cleaning and dispensing performance. It restores proper spray pattern and helps maintain even coverage where required. What it does:

• Directs water or dispense flow to the target area for effective cleaning or dispensing
• Restores consistent spray pattern to improve wash or rinse coverage
• Can resolve symptoms like weak or misdirected spray, uneven cleaning, or reduced dispensing performance
• Designed to fit into the OEM nozzle mounting and work with existing seals and connections

• Disconnect power and shut off water supply before servicing
• Replace only with the exact OEM-design nozzle assembly to ensure proper fit and function
• Inspect surrounding seals and clips during installation; replace if damaged

The Water Inlet Valve is an OEM replacement part specific to LG washing machines. It is an electronic solenoid valve located near the water supply inlet ports that controls the flow of water into the washer tub. The inlet valve precisely regulates water levels during different phases like filling, washing, rinsing, and spinning cycles.

Causes of a bad water inlet valve can include worn or faulty electronic components, mineral buildup obstructing valve movement, or damage to seals and diaphragms.

Symptoms of a bad water inlet valve include:

• Inability to properly fill the washer tub during cycles
• Water leaking or flooding from the valve area
• Erratic water temperature or varying fill levels between loads
• Cycles failing to advance due to inadequate or unregulated water flow

This OEM LG part is also compatible with Sears/Kenmore models.

This inlet hose channels household water into the appliance during the fill cycle. Replacing a cracked, brittle, or leaking hose restores a secure, leak-resistant path that helps prevent puddles and fill-related interruptions. What it does:

• Routes incoming water from the inlet valve into the appliance's internal water path
• Helps maintain a watertight connection when properly secured with clamps
• Typical failure signs: dripping or puddling under the unit, visible cracks/kinks/bulges, or lingering dampness
• A restricted or leaking hose can contribute to long fill times or incomplete cycles

• 1 inlet hose

• Disconnect power and turn off the water supply before servicing
• Place towels or a shallow pan to catch residual water
• Note the original routing and clamp locations; install the new hose the same way without twists or kinks
• Fully seat hose ends and secure clamps; restore water and run a brief fill to check for leaks

Detergent housing assembly that holds and routes detergent to the washer dispenser, helping ensure proper detergent flow and reducing leaks or dispenser jams. Fits into the dispenser area to replace cracked, warped, or damaged housing components. What it does:

• Houses and channels liquid or powdered detergent into the dispenser and wash chamber
• Restores proper detergent release when the original housing is cracked, broken, or warped
• Helps stop leaks and detergent buildup around the dispenser area
• Works with the dispenser drawer and related seals to maintain correct flow

• Disconnect power and turn off the water supply before starting service
• Use basic hand tools and follow the washer service manual or OEM diagram for disassembly/reassembly
• Inspect and replace any worn seals or gaskets at reassembly to prevent leaks

The Water Level Pressure Switch is an OEM replacement part for LG washing machines. It is an essential component that monitors and detects the water level within the washing machine tub during the wash cycle.

Symptoms of a bad water level pressure switch:

• Washing machine not filling with water or not stopping when the desired water level is reached
• Excessive water intake, leading to overfilling and potential leaks
• Error codes or indicators related to water level issues
• Washing machine not advancing to the next cycle due to incorrect water level detection

Causes of a bad water level pressure switch can include mechanical failure, electrical malfunctions, or blockages or debris preventing accurate water level readings.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

This filter assembly is the appliance's line noise filter. It conditions incoming AC power and suppresses electrical interference to protect sensitive controls and help restore stable, reliable power when the original filter has failed. What it does:

• Suppresses EMI/RFI on the AC line to reduce electrical noise reaching the control system
• Helps stabilize power to boards, relays, and motors
• Common failure symptoms: no power, intermittent power, tripped breaker or blown line fuse, burning smell or visible scorching at the old filter
• Also known as a line filter, EMI filter, or noise filter

• 1 filter assembly

• Disconnect power to the appliance before servicing; capacitors in some products can retain a charge
• Note wire locations; transfer leads to identical terminals on the new filter and secure the ground connection
• Mount the assembly firmly in the original location to prevent vibration or wire strain
• After replacement, inspect related fuses and wiring if the old filter showed signs of overheating or surge damage

The Dispenser Assembly is an OEM part for LG washing machines. This part dispenses the appropriate amounts of detergent, fabric softener, or other laundry additives at the right time during the wash cycle.

Causes of a bad Dispenser Assembly can include clogging or buildup of residue, damage to the dispensing mechanisms or components, or issues with the electronic controls that regulate the dispensing process.

Symptoms of a bad washer Dispenser Assembly include:

• Improper dispensing of detergent or fabric softener
• Leaks or drips from the dispenser area
• The dispenser drawer not opening or closing properly
• Failure of the dispenser to dispense at the correct time during the cycle

This OEM LG part is also compatible with some Kenmore models.

This clamp assembly secures a hose or tubing connection to maintain a watertight seal and reduce vibration. Replacing a worn or damaged clamp helps stop leaks and prevents hoses from slipping loose during operation. What it does:

• Holds a hose or tube firmly in place to maintain proper sealing at the connection point.
• Prevents leaks caused by loose, cracked or corroded clamps.
• Reduces vibration and rattling from unsecured hoses.
• Common symptom: visible leaking, water pooling, or a loose hose connection.

• Disconnect power and shut off water supply before starting any repair.
• Use the correct pliers or screwdriver for the clamp type; avoid damaging the hose.
• Inspect the mating hose and seal; replace any cracked or hardened hoses before reinstalling.
• Do not overtighten—tighten just enough to secure the hose without cutting or deforming it.

This cover cap is a small plastic trim piece that snaps into place to protect and finish an appliance opening or fastener, restoring a clean, finished appearance and keeping dirt out of the recess. What it does:

• Covers exposed fasteners or openings to improve appearance and prevent debris buildup
• Helps protect internal components from dust and small particles
• Restores a worn or missing trim piece for a finished look
• Fits into a corresponding recess and secures by snapping into place

• Installation is generally push-fit; align the cap with the opening and press until it snaps into place
• Use a plastic pry tool if removal is needed to avoid scratching surrounding surfaces
• Disconnect power to the appliance before removing panels or working near electrical components
• Only replace parts that match your appliance's OEM specifications
