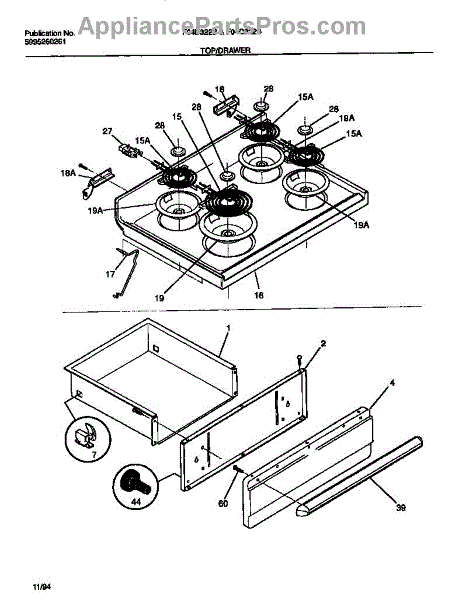

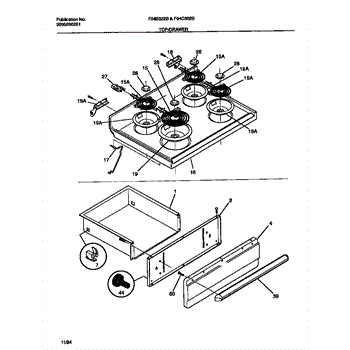

Parts for Frigidaire F04B322BDA: 04 - Top / Drawer Parts

The Rear Drawer Glide is an OEM part for Frigidaire ovens and ranges. It is designed to provide smooth movement for the oven's rear drawer. The rear drawer glide allows the drawer to slide in and out with ease, providing convenient access to storage space or broiler pans. This is the glide that attaches to the rear of the oven drawer. For front glide that attaches to the body use 3051162. Two front and two rear are used for each stove. One for each corner.

Causes of a bad rear drawer glide can include normal wear and tear over time or accidental damage. When the glide becomes defective, it can lead to difficulties in smoothly opening or closing the drawer.

Symptoms of a bad rear drawer glide include:

• Difficulty in sliding the drawer in or out.
• Uneven movements or sticking of the drawer.
• Excessive noise or scraping sounds when operating the drawer.
• The drawer not staying securely closed or aligned.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Main top support rod.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This body-side spacer installs on the cabinet side of the door or lid hardware. It sets the correct stand-off and alignment so the handle or latch feels solid and sits flush for a clean, secure fit. What it does:

• Positions and supports door/lid hardware on the cabinet/body side
• Maintains proper spacing to help prevent rubbing or scuffing of the panel
• Helps keep the handle or latch tight and aligned
• Common symptoms: loose or wobbly handle/latch, uneven alignment, visible gap or scuff marks at the mounting point

• Includes 1 body-side spacer

• Disconnect power to the appliance before servicing
• Support the handle/latch, remove the cabinet-side mounting screws, place the spacer, realign hardware, and reinstall screws snugly
• Reuse the original fasteners; avoid overtightening to prevent cracking the spacer or stripping threads
• Check door operation and alignment before finishing

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

The Front Drawer Glide is an OEM replacement part for Frigidaire ranges and ovens. It facilitates the smooth opening and closing of the storage drawer typically located at the bottom of the range.

Symptoms of a faulty Front Drawer Glide include:

• Difficulty in opening or closing the drawer smoothly
• The drawer becoming stuck or jammed in its track
• Excessive noise or grinding sounds when operating the drawer
• Visible signs of wear, damage, or misalignment in the glide mechanism

Causes of needing to replace the front drawer glide can include normal wear and tear over time, physical impact or mishandling, or exposure to excessive heat or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and oven models.

This small push-in plug button caps the opening in an oven bottom to keep the cavity clean and finished-looking. It prevents food and debris from falling into the oven base and restores a secure, even interior surface. What it does:

• Covers and seals the hole in the oven bottom to prevent debris buildup
• Helps maintain a finished appearance and reduces hotspots around openings
• Stops loose items from dropping into the oven base and interfering with components
• Simple, low-profile cap designed for a snug, friction-fit installation

• Turn the oven off and allow it to cool completely before installing
• Press the plug button firmly into the opening until it seats flush
• Use a non-marring tool if needed to avoid scratching the oven surface
• Replace with the correct OEM part if the plug does not fit securely or is damaged
