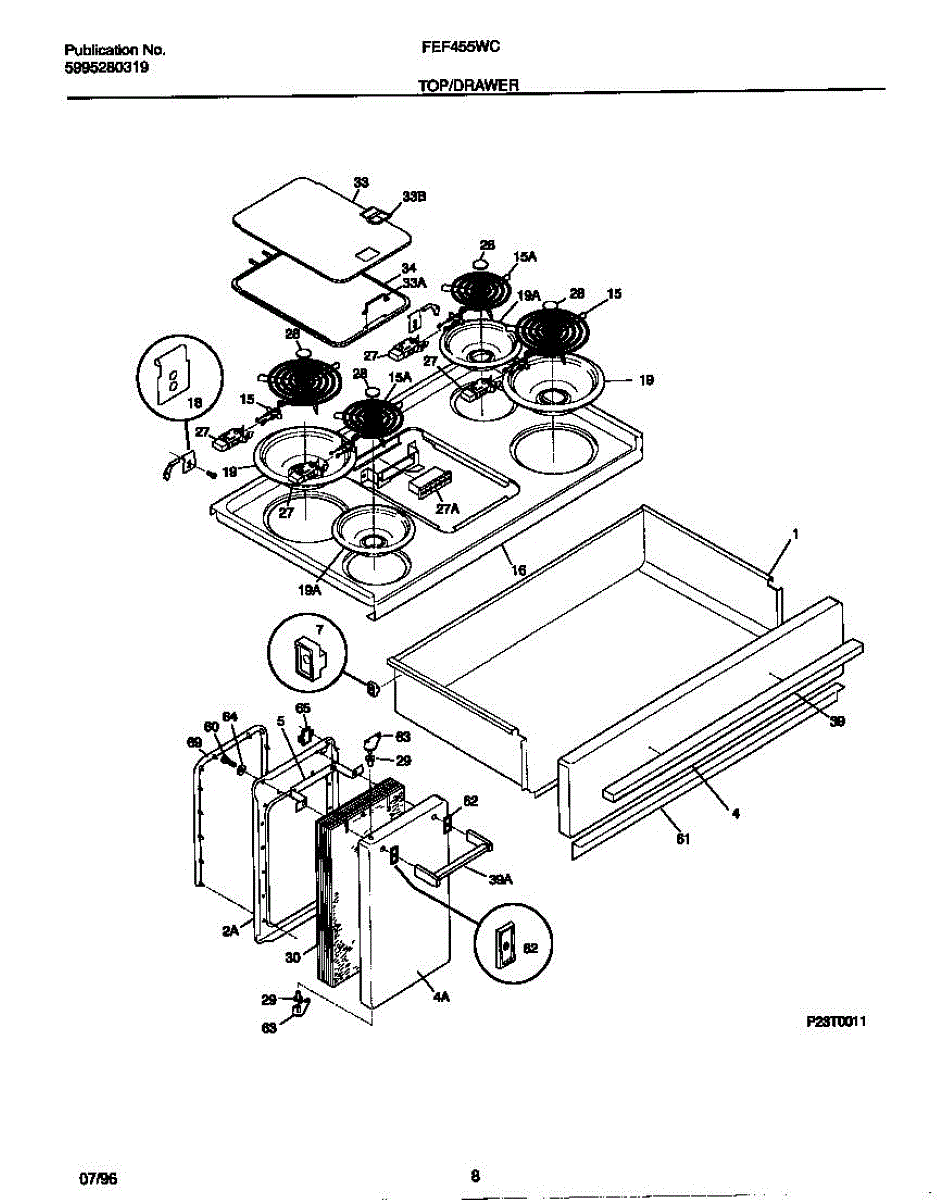

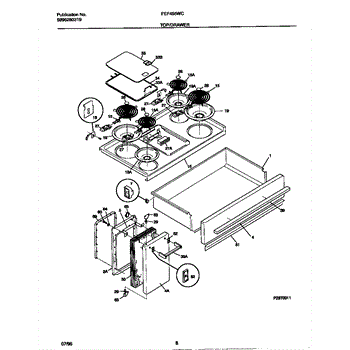

Parts for Frigidaire FEF455WCBB: 04 - Top / Drawer Parts

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This left hinge pin secures and guides a refrigerator door's pivot at the hinge assembly, restoring proper alignment and smooth opening. Use it to stop door sag, eliminate catching, and help the seal close evenly. What it does:

• Fits into the left hinge assembly to act as the pivot point for the door
• Keeps the door aligned so it opens and closes smoothly
• Prevents door sag and rubbing that can cause gaps or uneven sealing
• Common symptoms this part helps with: door won't stay closed, door leans or drags, noisy or stiff hinge movement

• One left-side hinge pin

• Support the door before removing hinge fasteners to prevent injury or damage
• Remove items from the door and, if present, disconnect any electrical connectors on the door first
• Use proper tools and keep track of hinge screws/washers during reassembly

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This terminal mounting bracket secures the griddle's electrical terminal/terminal block to the appliance chassis, keeping wiring stable and properly positioned for safe operation. Durable stamped metal designed for factory fit and routing. What it does:

• Holds the griddle's electrical terminal/terminal block in place to prevent strain on connections
• Keeps wiring routed away from heat and moving parts to reduce wear and interference
• Maintains proper alignment for a secure electrical connection and reliable operation
• Commonly used when replacing a bent, broken, or missing bracket found during control or wiring repairs

• One terminal mounting bracket

• Disconnect power to the appliance before servicing to avoid shock or injury
• Install in the original mounting location using existing fasteners; secure all wiring to the bracket
• Inspect terminal block and wire insulation when reassembling; replace any damaged components

This terminal block provides the appliance's main power connection point, replacing a worn or damaged power-connection block to restore a secure electrical hookup and reliable operation. What it does:

• Secures the incoming power cord to the appliance and provides the electrical connection to internal wiring
• Prevents loose or arcing connections that can cause intermittent power or scorch marks
• Commonly replaced when the cord connection is burned, melted, or wires are loose
• Helps restore normal power delivery when the appliance does not receive consistent voltage

• One terminal block assembly

• Disconnect all power at the breaker or fuse box before servicing
• Confirm wiring colors and terminal positions match original setup before reconnecting
• Tighten terminal screws securely but avoid over-torquing; ensure all wires are fully seated

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

This handle cover protects and finishes the end of a refrigerator door handle, restoring appearance and covering mounting hardware for a clean look. It's a simple cosmetic replacement that helps prevent dirt buildup and wear. What it does:

• Replaces a cracked, faded, or missing door handle end cap
• Covers exposed screws and mounting points for a neater door finish
• Helps keep dirt and moisture out of the handle mounting area
• Restores the original appearance of the door handle

• Basic screw or snap-on installation; handle may need loosening or removal to install
• Turn off power to the appliance only if required by your model's service instructions
• Use proper tools and avoid overtightening fasteners to prevent cracking

This griddle handle secures and lets you lift or move a removable griddle surface safely and easily. It restores a firm grip so you can position or remove the griddle without touching hot metal. What it does:

• Attaches to the griddle edge to provide a stable, ergonomic grip
• Enables safe lifting, positioning, and removal of the griddle
• Helps prevent hand contact with hot surfaces during use or cleaning
• Fits the griddle designated for compatible Frigidaire ranges

• One griddle handle

• Ensure appliance and griddle are completely cool before installing
• Fasten with the original screws or hardware; do not overtighten
• If screws or clips are missing or damaged, replace them with OEM-specified hardware

A replacement 10-24 x 5/8 screw used to fasten interior and exterior appliance components. Simple, direct-fit hardware that restores secure mounting where a worn or missing machine screw is causing loose panels or trim. What it does:

• Secures panels, brackets, and trim pieces to prevent rattling and misalignment
• Replaces stripped, rusted, or lost screws that cause loose or vibrating parts
• Restores proper attachment for components that won't stay in place
• Works wherever a 10-24 x 5/8 machine screw is required

• One 10-24 x 5/8 screw

• Use the correct driver and steady pressure to avoid stripping the head or threads
• Tighten until snug; avoid over-tightening which can damage mating parts
• Disconnect power to the appliance before working on electrical or moving components
• Replace the receiving nut or insert as needed for a secure fit
