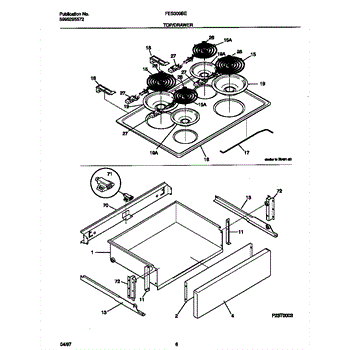

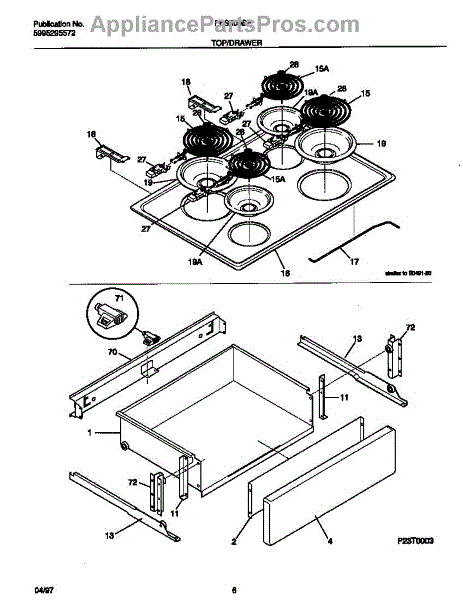

Parts for Frigidaire FES300BEBC: 04 - Top / Drawer Parts

This replacement drawer body restores a smooth-sliding storage bin in your appliance. Integrated rollers let the drawer glide on its tracks, keeping items organized and easy to access when the original is cracked, warped, or difficult to open.

• Forms the storage bin and supports items within the compartment
• Built-in rollers enable smooth travel along the drawer rails/tracks
• Helps resolve sticking, popping off track, rough movement, or broken tabs
• Restores proper fit and slide action for everyday use

• Empty and remove the damaged drawer; transfer any reusable front trim or inserts from the old drawer if needed
• Clean and inspect the rails/tracks; align the rollers with the track openings and slide in level until fully seated
• Do not force the drawer—re-align if resistance is felt to avoid damaging tabs or rails
• Avoid lubricants; wipe tracks and rollers with mild soap and water only

This replacement drawer liner restores a clean, smooth surface inside the refrigerator drawer to protect stored items and make cleaning easier. It's a direct-fit internal liner used where a damaged or stained liner needs replacing. What it does

• Provides a smooth, protective surface for a refrigerator drawer to contain spills and prevent direct contact with the drawer bottom
• Helps drawers slide and seat correctly when the original liner is warped, cracked, or missing
• Makes routine cleaning easier—wipes clean with mild soap and water
• Restores interior appearance when the factory liner is stained or damaged

• One drawer liner

• Remove the drawer from the cabinet per the owner's manual before replacing the liner
• Typically drops or snaps into the drawer cavity; no special tools required for most installs
• Clean both liner and drawer opening with mild detergent and dry before installation

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This clip secures the appliance's terminal block to the chassis, keeping wiring stable and preventing strain on electrical connections. It's a small, durable mounting clip used where the terminal block needs a fast, reliable hold. What it does:

• Holds the terminal block firmly to the appliance frame to reduce wire movement and wear
• Helps maintain safe, stable electrical connections by preventing strain on terminal wires
• Prevents the terminal block from shifting during use or service
• Compatible with standard terminal block locations that use a push-in or snap-mount clip

• One terminal block mounting clip

• Always disconnect power before accessing or servicing electrical components
• Remove access panels and locate the terminal block; clip typically snaps into a chassis slot or aligns with an existing mounting boss
• Handle wiring and terminals gently to avoid loosening connections; verify all wires are secure after reinstall

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit
