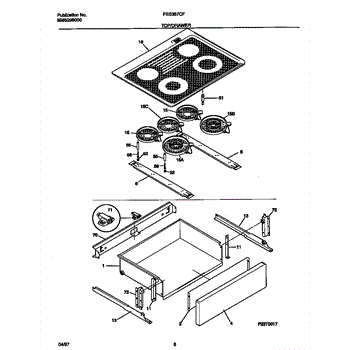

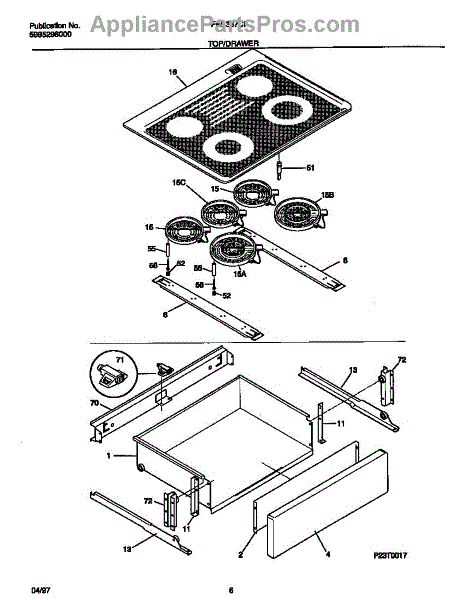

Parts for Frigidaire FES387CFBA: 04 - Top / Drawer Parts

This replacement drawer body restores a smooth-sliding storage bin in your appliance. Integrated rollers let the drawer glide on its tracks, keeping items organized and easy to access when the original is cracked, warped, or difficult to open.

• Forms the storage bin and supports items within the compartment
• Built-in rollers enable smooth travel along the drawer rails/tracks
• Helps resolve sticking, popping off track, rough movement, or broken tabs
• Restores proper fit and slide action for everyday use

• Empty and remove the damaged drawer; transfer any reusable front trim or inserts from the old drawer if needed
• Clean and inspect the rails/tracks; align the rollers with the track openings and slide in level until fully seated
• Do not force the drawer—re-align if resistance is felt to avoid damaging tabs or rails
• Avoid lubricants; wipe tracks and rollers with mild soap and water only

This replacement drawer liner restores a clean, smooth surface inside the refrigerator drawer to protect stored items and make cleaning easier. It's a direct-fit internal liner used where a damaged or stained liner needs replacing. What it does

• Provides a smooth, protective surface for a refrigerator drawer to contain spills and prevent direct contact with the drawer bottom
• Helps drawers slide and seat correctly when the original liner is warped, cracked, or missing
• Makes routine cleaning easier—wipes clean with mild soap and water
• Restores interior appearance when the factory liner is stained or damaged

• One drawer liner

• Remove the drawer from the cabinet per the owner's manual before replacing the liner
• Typically drops or snaps into the drawer cavity; no special tools required for most installs
• Clean both liner and drawer opening with mild detergent and dry before installation

This is a 9 inch, Dual 700 and 2100 watt, radiant heating element. Includes limit switch.

This is a 100 watt, 120 volt surface warming element. Includes limiter.

This dual surface element restores steady, selectable heat to a cooking zone on your electric range or cooktop. It provides two heating areas in one burner position so you can match heat output to small or larger cookware.

• Heats cookware by energizing the inner ring alone or both inner and outer rings together
• Helps resolve issues such as a surface burner not heating, only one ring heating, or intermittent/uneven heat
• Replaces a cracked, blistered, or visibly damaged element to restore reliable performance

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element from beneath the cooktop; photograph wire locations for reference
• Carefully transfer any brackets, clips, or attached limiter from the original element if required
• Avoid touching the element surface; secure all connections and test both inner and dual settings after reassembly

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This drum roller supports the dryer drum and helps it turn smoothly, reducing friction and noise. Replacing a worn roller restores quieter operation and helps prevent drum wobble and uneven tumbling. What it does:

• Supports the rotating drum so it spins freely and evenly.
• Reduces squeaks, grinding noises and excessive vibration from a worn wheel.
• Helps prevent drum wobble that can lead to uneven drying or wear on other components.
• Works with the drum shaft/bearing system to maintain proper drum alignment.

• Disconnect power (and gas, if applicable) before starting any service.
• Remove the dryer drum to access and replace the roller—follow your model's service manual or OEM instructions.
• Inspect adjacent rollers, bearings and the shaft for wear while the drum is removed.
