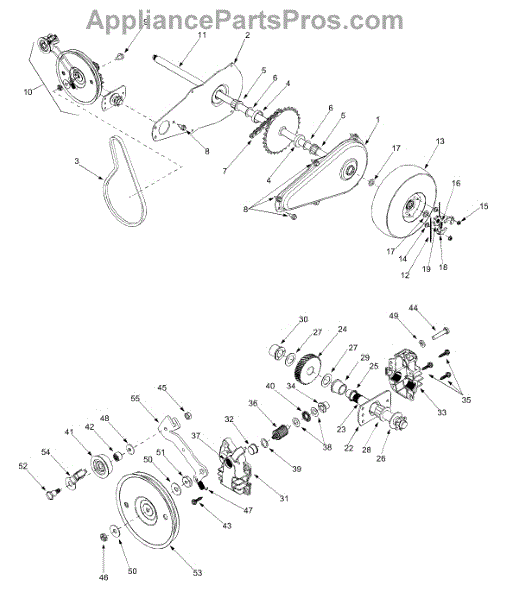

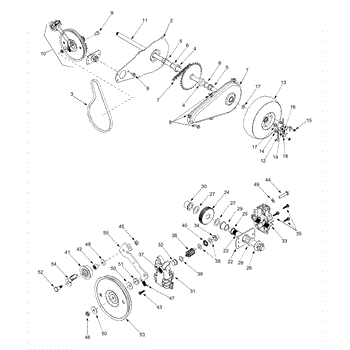

Parts for White Outdoor 24A-203B190 / 2002: Transmission Assembly Parts

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

This genuine wheel assembly is designed as a replacement for use on select models of outdoor chippers. The wheel is secured onto the shaft axle to allow the unit to roll properly during use. Without the wheel intact, the unit will not be able to operate. The wheel is a durable rubber and plastic part, but it could be subject to damage or wear over time, including flat spots or a full crack in the plastic that requires a replacement.This OEM wheel is manufactured to exact standards by Troy-Bilt and will resolve the issue when replaced on select compatible models. It is also designed for use with select units from MTD and Yard Man, and is sold as an individual piece. Hardware and other parts are sold separately. To replace the wheel, a wrench and screwdriver will be needed to help secure the new wheel to the shaft axle assembly. Since parts differ between machines, refer to the owner's manual for exact replacement instructions. Wear gloves when working on power equipment and always disconnect the power to the machine before beginning repairs.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This is a pawl that can serve as a replacement for some mower models, as well as chippers and shredders. The pawl attaches to the ratchet pawl plate. The pawl is essential for starting the engine. When the starter turns, the pawl is forced outward and locks onto the flywheel, allowing the engine to start. When the starter rope is let go, the springs pull back the ratchet pawls. If there is damage to the pawl, the engine will not start.The piece is made from durable metal, and it is built to last. However, it can start to wear down over time. Additionally, there is the potential that it could corrode. If there are issues with the pawl, replace them as soon as possible to ensure their machine continues to operate properly.This pawl can work with select models from MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Husky. The piece is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

This replacement part is a ratchet. This is a genuine replacement part made by MTD. This part has ridges on the edges and is used to help certain parts rotate or turn in the proper direction. A new ratchet might be needed if the user hears unusual noises coming from inside the machine. This can be due to a ratchet being out of place or damaged. A ratchet could become worn down over time and might not be able to operate as smoothly as before. Work gloves are recommended during this repair as the part can be sharp and possibly dangerous. Be sure the engine is turned off before beginning this repair. This part is a genuine OEM replacement part to ensure proper fit. This ratchet is sold individually and is sourced directly from the manufacturer.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

This extension spring is a genuine OEM replacement part sourced directly from the manufacturer. It is used on many lawn mowers and other lawn and garden machines. Extension springs are used on the deck handle to lift the deck up and down. It attaches to the deck on one end and the deck handle on the other. As the handle is lifted up and down, the spring provides tension that holds the deck to the machine while at the same time stretching to allow the up and down movement. If the spring is not functioning correctly, the deck may not go up and down as smoothly or at all. Springs don't normally break; however, over time with repeated use, they may stretch beyond use or rust and not stretch at all. Routine maintenance and visual inspection will reveal this and repairs can be made before damage to the mower occurs.Extension springs cannot be repaired, they have to be replaced. Make sure the mower is turned off and parked on a level surface before beginning. The machine needs to be cool to prevent burns. Always wear gloves when replacing parts.This extension spring is made of heavy duty metal and is sold as an individual part. It is compatible with riding mowers, lawn mowers, and other machinery manufactured by MTD, Craftsman, and others.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.
