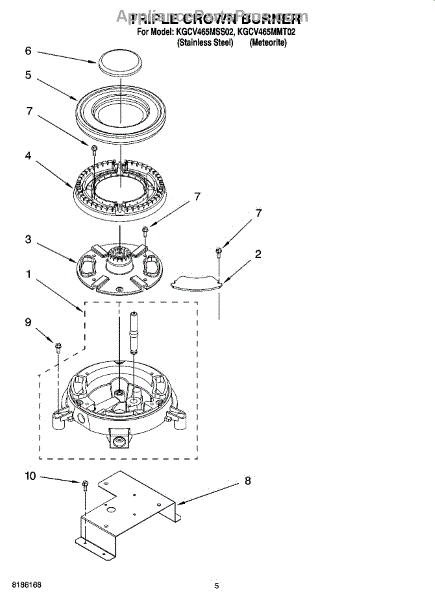

Parts for Kitchenaid KGCV465MSS02: 03 - Triple Crown Burner Parts

This internal triple crown burner head replaces the inner burner component that supports the burner cap and helps shape the flame for consistent cooking. It restores proper burner function when the inner head is damaged or warped. What it does:

• Directs gas flow to the burner ports to produce an even flame across the triple-C burner pattern
• Helps maintain stable flame for simmering and normal cooking heat
• Can resolve low, uneven, or fluctuating flame caused by a damaged or warped internal head
• Works with the matching burner cap and base to ensure correct flame distribution

• Disconnect power to the cooktop and shut off the gas supply before servicing
• Handle parts carefully to avoid bending ports or damaging mating surfaces
• Verify correct fit and orientation before reassembly; replace any other damaged burner components as needed

This replacement burner head restores the proper flame shape and heat distribution on gas cooktops with a triple-crown external burner design. It helps improve ignition and even cooking across pots and pans. What it does

• Directs and shapes the gas flame for even heat across cookware.
• Replaces damaged, corroded, or warped burner head surfaces that cause uneven heating.
• Can resolve weak, irregular, or misdirected flames and intermittent ignition at the burner.
• Works as part of the burner assembly to maintain safe, consistent combustion.

• Turn off gas supply and electrical power to the appliance before servicing.
• Remove grates and burner cap, then lift off and replace the burner head; ensure proper alignment before reassembly.
• Inspect other burner components (cap, base, or orifice) for damage or debris that may affect performance.

This screw secures panels, brackets, and internal components in your appliance, keeping assemblies tight and aligned. Replacing worn or missing hardware helps prevent vibration and rattling and restores a solid fit after service or everyday use.

• Fastens sheet-metal panels, brackets, and internal parts to the cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, corroded, or stripped screws
• Supports safe, secure reassembly during repairs

• Disconnect power; for gas appliances, also shut off the gas supply before beginning
• Support parts being removed so components aren't stressed or misaligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves when working around sharp metal edges

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.
