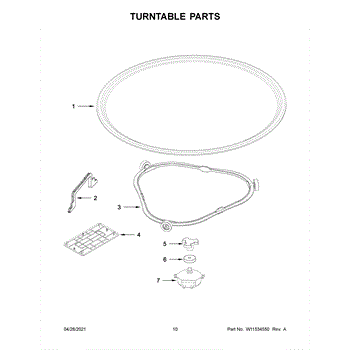

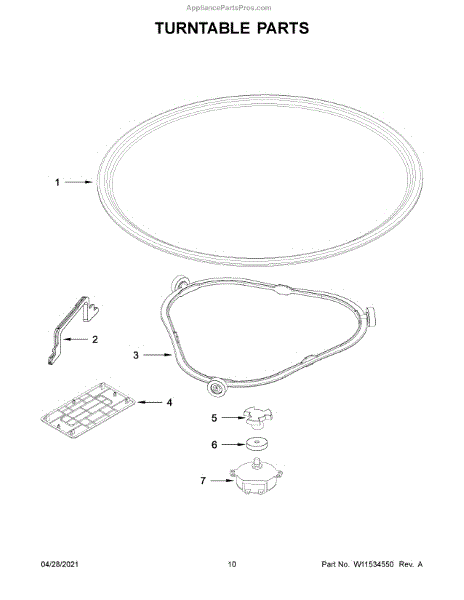

Parts for Kitchenaid KMBT5011KSS01: Turntable Parts

*** Note: This glass tray has 3 triangles to engage the coupler. In some cases, the factory used a tray that has 3 partial-circles. For that glass tray use part# 4393799. ***

The Glass Tray is an OEM part for Whirlpool built-in microwaves. This heat-resistant glass plate helps distribute incoming microwave energy evenly throughout cooking cycles.

Causes include normal thermal stress cracks from rapidly changing microwave temperatures daily. Accidental impact damage is also possible if rack assemblies are mishandled.

Symptoms of a problematic glass tray include:

• Inconsistent or inadequate microwaving of certain foods
• Hotter or cooler areas noticed depending on placement
• Visible corrosion, cracks or pitting of the tray surface over time
• Sparking, arcing or strange noises from inside the microwave cavity

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This foam seal cushions and fills gaps around the cabinet or door trim to reduce vibration, block drafts, and help prevent moisture and dust intrusion. It restores a snug fit where worn or missing foam allows movement or air leaks. What it does

• Provides a compressible barrier between panels or trim to reduce rattles and vibration.
• Helps block drafts and limits dust, moisture, and light infiltration at seams.
• Restores proper spacing and alignment for doors or panels that rely on foam padding.
• Commonly replaced when foam is crushed, torn, or missing.

• One foam seal.

• Disconnect power and empty the area if the repair requires panel or door removal.
• Remove all old foam and adhesive; clean surfaces thoroughly before installing the new seal.
• Press or align the foam into place; use approved adhesive if the OEM specifies glue or clips.
• Verify a proper seal and operation before returning the appliance to service.

This inlet cover protects and secures the washer's water inlet area, helping keep connections stable and preventing debris from entering the inlet assembly. It restores the inlet housing's fit and finish after damage or wear. What it does:

• Covers and protects the water inlet area and fittings from debris and accidental contact
• Keeps inlet hoses and valves properly aligned for reliable water flow
• Helps prevent water spray or leakage caused by loose or damaged inlet openings
• Useful when original inlet housing is cracked, broken, or missing

• One inlet cover

• Disconnect power and water supply before starting any repair
• Replacement typically requires removing the control console or top panel to access the inlet area
• Handle plastic components gently to avoid cracking; use proper fasteners and seals

The Motor Spacer is an OEM part for Whirlpool microwaves. It is designed to support and position the turntable motor, ensuring it stays aligned and functions correctly. This spacer helps maintain the stability of the turntable, allowing even and consistent heating of food.

Causes of a bad motor spacer can include wear and tear over time, physical damage from heavy use, or misalignment due to accidental impacts. Regular inspection and maintenance can help identify issues before they lead to motor malfunction.

Symptoms of a bad motor spacer include:

• The turntable not rotating properly
• Unusual noises coming from the turntable area
• Inconsistent heating or cooking of food
• The turntable being unsteady or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Turntable Motor is an OEM part for Whirlpool microwaves. This motor is responsible for rotating the microwave turntable, ensuring even heating of food by allowing it to rotate during the cooking process. It is located beneath the turntable and engages with the turntable coupler to facilitate smooth rotation. Installation of this motor may need a Torx driver. If a small stud is present in the center of the Torx screw, a security torx bit will be necessary for the replacement of those screws.

Causes of a bad turntable motor can include wear and tear from regular use, electrical failures, or physical damage due to overloading or mishandling. These issues can result in the turntable not rotating properly, leading to uneven heating.

Symptoms of a bad turntable motor include:

• Turntable not rotating
• Uneven cooking or heating of food
• Unusual noises coming from the motor area
• The microwave displaying error codes related to the turntable

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
