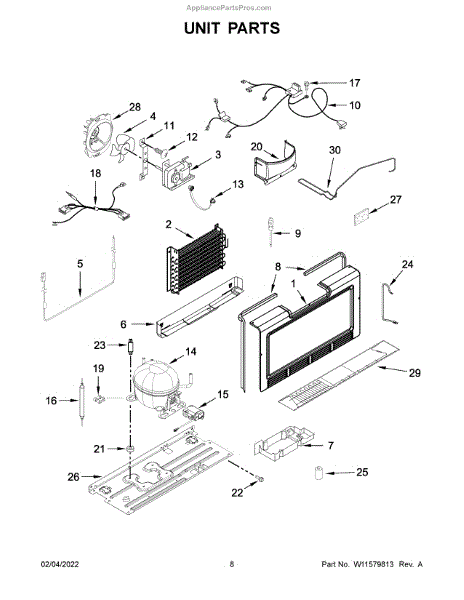

Parts for Gladiator GAFZ30FDGB04: Unit Parts

This wire harness routes power and signals between the appliance control and key components to restore reliable electrical connections. Replacing a damaged harness helps stop intermittent operation and missing controls caused by frayed or broken wires. What it does:

• Provides the main multi-connector wiring link between the control and components
• Carries power and signal lines needed for controls and motors to operate
• Restores continuity when wires are broken, chafed, or connectors are loose
• Helps resolve symptoms such as intermittent or non-responsive controls and erratic operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Handle connectors gently; do not force mismatched plugs
• Route and secure the harness away from moving parts and heat sources

The Invrtr-box is an OEM component compatible with Whirlpool refrigerators. Located inside the refrigerator cabinet, usually behind side paneling, this box houses the electronic inverter that regulates power to key components like the compressor.

Symptoms of a bad inverter box include:

• Refrigerator failing to cool/freeze properly
• Compressor not running regularly or making strange noises
• Difficulty maintaining set temperatures
• Randomly tripping breakers or power issues

Causes can be gradual wear of internal electronic modules over many years of use. Damage from impacts during repairs/installations is also possible.

This OEM replacement is compatible with models including Kenmore, KitchenAid, Maytag, and more for a direct-fit installation.

This Drier Tube is an OEM part for Whirlpool Refrigerators. It plays a role in filtering and drying the refrigerant. Wear, leaks, or clogs can cause issues with this part.

What Causes a Bad Refrigerator Drier Tube:
Wear, leaks, or clogs within the tube can affect the refrigeration process or cause leaks.

Symptoms of a Bad Refrigerator Drier Tube:

• Insufficient cooling or freezing
• Refrigerant leaks or hissing sounds
• Excessive moisture around the tube area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement clip secures small appliance components in place to prevent rattling and part separation. It restores proper alignment so panels, trim, or internal assemblies stay firmly fastened during normal use. What it does:

• Fastens and retains panels, trim, or small assemblies to the appliance frame
• Prevents parts from shifting, vibrating, or causing operational noise
• Helps maintain proper alignment of connected components
• Commonly replaced when clip is cracked, missing, or no longer holds

• One replacement clip

• Disconnect power (and gas if applicable) before servicing the appliance
• Use needle-nose pliers or a flat tool to remove and install the clip; avoid excessive force
• The clip seats fully in its mounting slots and secures the mating part

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This drive coupler connects the washer motor to the transmission so the agitator or drum turns smoothly. It's a direct-replacement part that restores drive engagement when the original coupler is worn or damaged. What it does

• Transfers motor rotation to the transmission/agitator so the tub agitates or spins.
• Commonly replaced when the washer won't agitate, spin, or makes grinding or clunking noises.
• Resists normal wear from torque and repeated use; failure causes slipping or loss of drive.
• Helps prevent further damage to the motor or transmission when replaced at first signs of wear.

• One drive coupler

• Disconnect power and water supply before beginning any repairs.
• Access typically requires removing the cabinet or front panel; follow the manufacturer service manual.
• Inspect motor shaft and transmission input for damage when replacing the coupler.
• If transmission or motor splines are damaged, replace the damaged assembly rather than relying on a new coupler.
