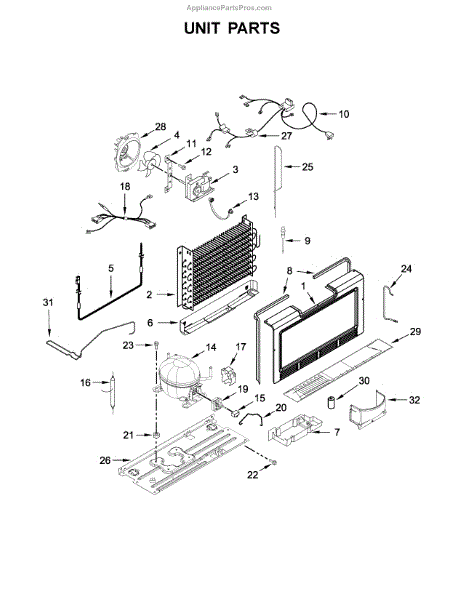

Parts for Whirlpool WZF34X18DW01: Unit Parts

The Evaporator Coil is an OEM part for Whirlpool refrigerators. It is responsible for absorbing heat from the refrigerator interior as refrigerant passes through its fine tubes and fins. Cool air is then circulated through convection to maintain consistent temperatures.

Causes of a bad evaporator coil can include mineral deposits or frozen moisture clogging fins over time, physical damage to tubes, or corrosion of metal surfaces.

Symptoms of a bad evaporator coil include:

• Inability to decrease interior temperatures sufficiently
• High energy bills due to inefficient heat transfer
• Abnormal ice buildup inside due to poor airflow
• Warm or lukewarm areas inside the refrigerator compartment

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, KitchenAid, and some GE models.

This evaporator fan motor drives the fan that circulates chilled air across the evaporator coils and through the cabinet, helping maintain even, stable temperatures and consistent cooling performance.

• Moves air across the evaporator coils and through the vents for uniform cooling
• Helps the refrigerator recover temperature after door openings
• Common symptoms of a failing motor: fresh food section warmer than the freezer, little or no airflow from vents, fan not running with the door switch pressed, or loud/abnormal fan noise
• Supports overall system efficiency by keeping air moving around stored items

• Disconnect power to the appliance before servicing
• Transfer and reuse the original fan blade, bracket, grommets, and screws if your model uses them
• Clear any frost or obstructions from the fan shroud and surrounding area before reassembly
• After reassembly, restore power and press the door switch to confirm the fan runs and airflow is present

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan catches and channels stray water to help protect floors and the appliance base from leaks and spills. It's a simple replacement that restores proper drainage and reduces visible pooling under the machine. What it does:

• Collects and directs small leaks or condensation away from the cabinet and floor
• Helps prevent water damage to subflooring and surrounding cabinetry
• Stops visible pooling under the appliance that can cause corrosion or staining
• Works with the appliance's drain path to route water to the drain system

• Disconnect power and shut off water supply before starting any repair
• Remove access panels per manufacturer instructions to reach and replace the pan
• Inspect surrounding seals and hoses for damage; replace if needed to stop leaks
• After installation, restore power/water and run a short cycle to check for proper drainage and leaks

This replacement door gasket creates an airtight seal for the refrigerator fresh-food compartment to help maintain proper cooling and reduce frost buildup. It restores door sealing to help the appliance run more efficiently. What it does

• Seals the fresh-food compartment door to keep cold air in and warm air out
• Helps reduce frost and moisture buildup inside the compartment
• Supports consistent internal temperature for safer food storage
• Can improve energy efficiency when the door seal is compromised

• Disconnect power to the appliance before starting any repair.
• Remove the old gasket per the manufacturer's instructions; inspect the door surface for damage or debris.
• Warm and flex the new gasket as needed to ease installation; ensure the gasket is seated evenly in the door channel.
• After installation, check the door for a secure, even seal; adjust alignment if necessary.

This wire harness assembly routes electrical power and signals between a range of appliance components to restore reliable connections and operation. Replaces a damaged or failing harness to stop intermittent power or communication faults. What it does:

• Provides the electrical connections between controls, motors, sensors and other components.
• Restores consistent power and signal flow when wiring is burned, broken or corroded.
• Can stop intermittent operation, components that won't start, or circuits that trip.
• Helps prevent further damage from shorted or frayed wiring when replaced promptly.

• Disconnect all power (unplug or switch off breaker) before servicing to avoid shock.
• Inspect connectors, pins and insulation; replace the harness if any wires or terminals are damaged.
• Route and secure wiring per the service manual; avoid pinching or tight bends that stress wires.

This clip is a small mounting retainer that secures appliance panels and components to keep parts aligned and reduce vibration. It restores a snug fit for trim, panels, and harnesses so covers stay in place and operate quietly. What it does

• Holds trim, panels or wire harnesses in position to prevent rubbing and rattling
• Keeps access panels and covers aligned for a proper seal and finish
• Prevents electrical harnesses or hoses from sagging or contacting moving parts
• Stops intermittent scraping or vibration noises caused by loose fittings

• Disconnect power to the appliance before replacing the clip to avoid shock or injury
• Replacement typically requires basic hand tools (flat screwdriver, pliers) to remove the old clip and snap the new one into place
• Inspect surrounding trim, fasteners and harnesses and replace any additional damaged clips as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A small rubber grommet that cushions and protects wiring or hoses where they pass through sheet metal or plastic openings. Replaces a worn or damaged grommet to help prevent chafing and reduce vibration-related noise. What it does

• Cushions and protects wires, hoses, or tubing from sharp edges
• Helps prevent abrasion that can cause fraying or electrical shorts
• Reduces vibration and rattling where components pass through panels
• Commonly replaced when the original shows cracking, tearing, or visible wear

• One rubber grommet

• Disconnect power before accessing internal wiring or panels
• Remove the damaged grommet and press the replacement into the opening until fully seated
• Use blunt tools or a cloth to avoid cutting or distorting the new grommet

This wiring harness routes power and signals between appliance components to restore reliable electrical connections and operation. It replaces a damaged or faulty harness to help eliminate intermittent faults and poor component response. What it does:

• Connects control board, switches, sensors and other electrical components so they can communicate and receive power.
• Restores interrupted circuits that can cause components to not run or respond intermittently.
• Helps resolve symptoms like components that won't power on, erratic operation, or electrical connection failure.
• Provides the proper connector and wire layout to maintain correct routing and secure mating of plugs.

• Disconnect power to the appliance before inspecting or replacing the harness to avoid shock or short circuits.
• Inspect connectors and wire insulation for damage; replace harness if any terminals, pins or wiring are corroded or broken.
• Route and secure the harness along original clips or channels to prevent abrasion or contact with hot/moving parts.

This start device is the compressor start relay that helps the refrigerator compressor start reliably so the appliance can cool properly. It replaces a failed relay to restore normal compressor startup behavior. What it does:

• Provides the initial electrical boost to the compressor motor during startup
• Helps the compressor overcome inertia so the refrigeration cycle can begin
• Commonly used when a compressor hums or won't start but power is present
• Addresses symptoms such as no cooling, frequent clicking from the compressor area, or a compressor that runs briefly then stops

• One (1) start device / compressor start relay

• Disconnect power to the appliance before accessing electrical components
• Replace only with the correct part number or direct OEM equivalent
• Inspect compressor terminals and wiring for heat damage; replace damaged wiring as needed

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This fan scroll is the molded blower housing that channels airflow from the appliance's blower wheel for efficient air movement and cooling. It restores directed airflow to help the appliance vent and operate quietly. What it does:

• Directs airflow from the blower wheel through the appliance to improve ventilation and cooling
• Helps maintain proper airflow for heating, drying or cooling cycles
• Reduces air leaks and vibration-related noise when intact and properly seated
• Worn or cracked scrolls can cause reduced airflow, overheating, rattling or poor performance

• Disconnect power before beginning any repair to avoid shock or injury
• Handle carefully—edges and mounting tabs may be sharp or brittle on older parts
• Ensure the blower wheel is correctly seated in the scroll and mounting tabs align before securing panels
• After installation, verify proper airflow and listen for unusual noises; re-tighten fasteners if needed

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively
