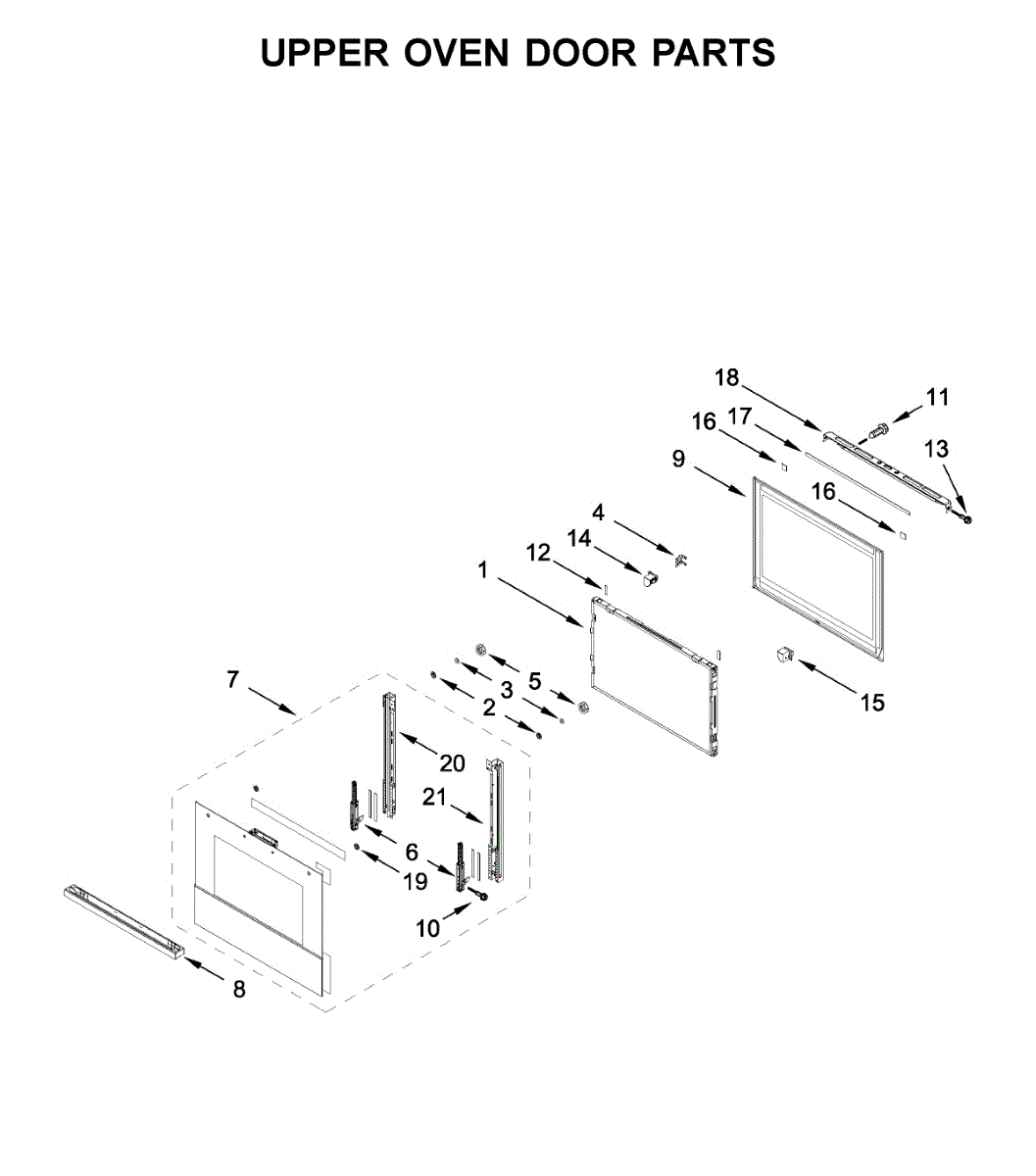

Parts for Jenn-Air JJW3830IM01: Upper Oven Door Parts

The outer door glass is an OEM replacement part for Whirlpool ranges. This glass panel serves as a protective layer for the inner components of the oven door. It helps insulate the oven cavity, keeping the heat inside during cooking while preventing the external surface of the door from becoming too hot to touch.

Causes of a bad oven door include:

• Accidental impacts or mishandling
• Cracked or shattered glass
• Fogging or condensation between the glass layers

A damaged or worn-out outer panel can occur due to accidental impacts, scratches, or regular wear and tear. If you notice dents, scratches, or discoloration on the door panel, it may be time to replace it.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This small bumper cushions contact points inside your appliance to prevent metal-to-metal contact. It helps reduce noise, protect finishes, and keep moving parts stopping smoothly and aligning as designed.

• Absorbs impact so doors, drawers, or racks stop quietly instead of slamming
• Protects painted/enamel surfaces from chips, scratches, and premature wear
• Helps maintain proper spacing and alignment where specified by the manufacturer
• Replace if missing, cracked, flattened, or if new rattling/clunking noises appear

• Disconnect power; turn off water supply if applicable
• Allow any hot surfaces to cool before starting
• Gently remove the old bumper; clean the mounting area
• Press-fit or seat the new bumper fully; installation method can vary by model—follow your service documentation

The Door Glass is an OEM part for Whirlpool ranges. It forms the inner layer of the oven door, providing insulation and protection against high temperatures during cooking. The oven door inner glass ensures heat is contained within the oven cavity, allowing for efficient and even cooking. It also acts as a barrier, preventing any spills or debris from entering the space between the inner and outer glass layers.

A bad oven door inner glass can occur due to accidental impact, extreme temperature changes, or regular wear and tear. If you notice symptoms such as cracks, shattered glass, or compromised insulation, it may be time to replace this part.

Symptoms of a bad oven door inner glass include:

• Cracks or shattered glass
• Compromised insulation
• Difficulty in maintaining consistent cooking temperatures

Restore your Whirlpool range by replacing the damaged or worn oven door inner glass with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Glass Spacer is an OEM part for Whirlpool ovens. This part helps maintain the structural integrity of the oven door, preventing heat escape, and ensuring the door glass remains securely in place during the oven's operation.

Causes of a bad Oven Door Glass Spacer can range from wear and tear over time, leading to degradation or loss of the spacer, to improper installation that may cause the spacer to dislodge or fail to provide adequate support.

Symptoms of a malfunctioning Oven Door Glass Spacer include:

• Loose or rattling oven door glass
• Uneven gaps around the door glass, indicating misalignment
• Heat leaking from around the oven door, potentially affecting cooking performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool microwaves. It is a small yet vital component that joins together other parts of the microwave to create a cohesive machine. The screw is responsible for tightly securing internal components like the magnetron tube, control panel, and outer case during operation.

Symptoms of a bad screw include:

• Loose or detached internal microwave components
• External parts like the door or casing that will not stay aligned or attached
• Overheating or arcing due to poor grounding from loose screws
• Component malfunctions if mounting positions are compromised

Causes of a bad screw can include wear and tear that causes stripping or loosening over time, or damage from handling that results in breaking or bending.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This door plastic bracket secures the appliance door to the cabinet, keeping the door aligned and stable so it closes properly and seals. A simple replacement for worn, cracked, or broken door support hardware. What it does

• Holds the door in the correct position and connects the door assembly to the cabinet.
• Restores proper door alignment to reduce gaps, scraping, or uneven closing.
• Stops rattling or rocking caused by a cracked or broken bracket.
• Helps the door latch and seal correctly so the appliance can operate safely.

• One door plastic bracket (LW) as shown.

• Disconnect power (and water if applicable) before starting any repair.
• Access may require removing the door or inner door panel; keep track of fasteners.
• Inspect surrounding screws, clips, and the mating surface; replace any damaged fasteners.

This replacement door plastic bracket secures the appliance door to the cabinet hinge so the door opens and closes smoothly and stays aligned. It restores proper door support and reduces sagging or uneven gaps. What it does:

• Provides a secure mounting point between the door and hinge assembly
• Supports door weight to prevent sagging and misalignment
• Helps the door close flush to maintain an effective seal
• Reduces rattling or excessive movement during operation
• Common symptom: door feels loose, hangs unevenly, or doesn't latch properly

• One door plastic bracket

• Disconnect power (and water if applicable) before starting any repair
• Remove the door per manufacturer instructions to access the bracket; keep track of screws and any spacers
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results
• If the part fits tightly, avoid forcing it; use appropriate tools and follow OEM torque guidelines

This top vent spacer positions and supports the exhaust components at the top outlet so the duct aligns and seals correctly. Proper spacing helps maintain airflow and reduces vibration or rattling during operation. A damaged or missing spacer can cause misalignment and air leaks.

• Spaces and stabilizes the top vent/adapter in the factory location
• Helps create a consistent seal at the top duct connection to prevent leaks
• Reduces vibration and noise from a loose or misaligned top vent
• Replace if cracked, missing, deformed, or if the top vent is loose, misaligned, or leaking air

• Disconnect power and disconnect any ducting before servicing
• Support the unit as needed to safely access the top vent area
• Install the spacer in the original orientation; reuse original fasteners when applicable
• After reassembly, verify the vent path is aligned and all joints are sealed before restoring power

This vent gasket seals the appliance vent opening to prevent air leaks and maintain proper exhaust flow. It helps reduce drafts and keeps heated or moist air moving through the vent path where intended. What it does:

• Seals the exhaust/vent connection to prevent air and moisture leaks
• Helps maintain correct airflow for efficient drying/heating performance
• Reduces noise and drafts caused by gaps around the vent opening
• Protects cabinetry and surrounding areas from vent moisture

• Disconnect power (and gas if applicable) before starting any repair
• Remove access panels as needed to reach the vent flange; replace gasket and align for an even seal
• Use proper fasteners and avoid over-tightening to prevent gasket damage

The Trim-Vent is an OEM part for Whirlpool built-in wall ovens. Positioned around the opening, it provides an attractively finished border while also directing steam away from surrounding cabinetry.

Symptoms of a bad trim-vent include:

• Warped or swollen cabinetry surfaces near the oven
• Mold or mildew stains appearing on neighboring wood
• Drafts of hot air leaking around the oven opening
• Gaps exposing unfinished insulation or framing

As the critical edge between the oven and enclosure, trim vents endure constant heat and moisture exposure during cooking cycles. Causes of failure are typically cracked seals or loose fasteners no longer preventing leaks.

Replacing with this OEM vent restores safe and attractive integration of the range into the surrounding space. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore built-in wall ovens.

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer
