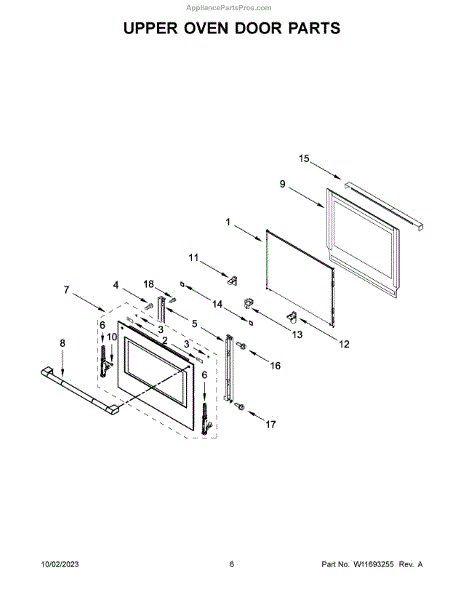

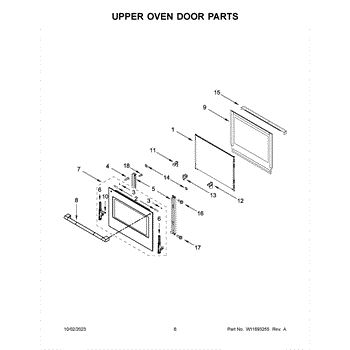

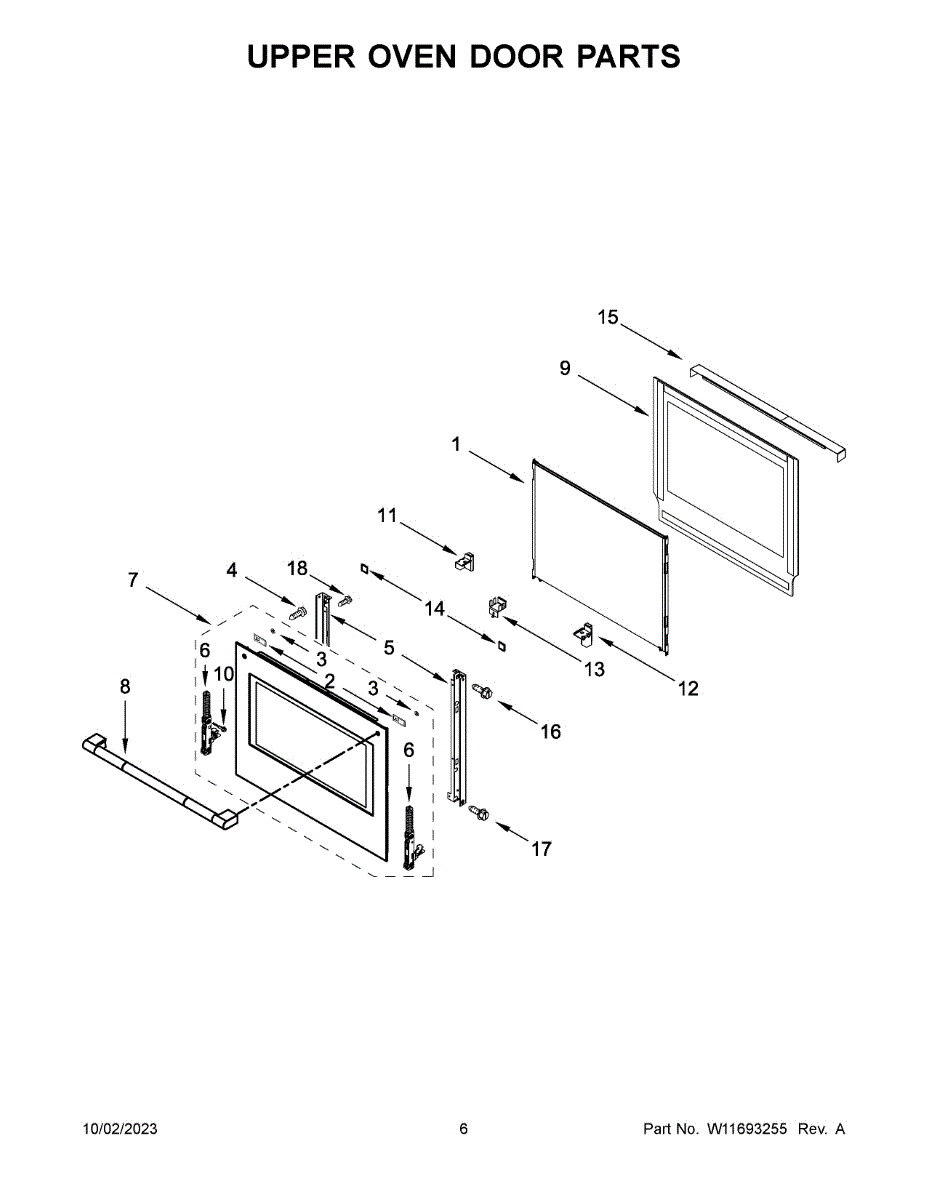

Parts for Jenn-Air JJW3830LL01: Upper Oven Door Parts

A small mounting spacer that keeps appliance parts correctly spaced for proper alignment and smooth operation. Replaces a worn or missing spacer to help reduce rubbing and improve fit between components. What it does:

• Maintains correct distance between panels or assemblies for proper alignment
• Prevents parts from rubbing, chafing, or binding during operation
• Helps reduce vibration and noise caused by misaligned components
• Supports secure fastening of panels, brackets, or assemblies

• One spacer

• Disconnect power to the appliance before starting any repair
• Access may require removing a panel or trim—keep fasteners organized
• Install in the same orientation and location as the original; do not force or deform the spacer
• Tighten fasteners snugly but avoid over-tightening which can compress or damage the spacer

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer

This is a direct-fit door handle that restores a secure, easy-to-grip door opening surface and replaces a cracked, loose, or damaged handle. It returns proper function and improves the appearance of the door. What it does:

• Provides a sturdy handhold for opening and closing the appliance door
• Replaces handles that are cracked, broken, loose, or missing
• Prevents further wear or damage to the door edge and latch area caused by a failing handle
• Restores safe, reliable operation and improves the appliance's look

• Disconnect power (unplug appliance or turn off circuit) before beginning work
• Remove any trim or fasteners covering the handle per your model's diagram
• Handle hardware may be reused if undamaged; replace any stripped screws
• Do not overtighten fasteners—tighten until snug to avoid cracking the handle

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This top vent spacer positions and supports the exhaust components at the top outlet so the duct aligns and seals correctly. Proper spacing helps maintain airflow and reduces vibration or rattling during operation. A damaged or missing spacer can cause misalignment and air leaks.

• Spaces and stabilizes the top vent/adapter in the factory location
• Helps create a consistent seal at the top duct connection to prevent leaks
• Reduces vibration and noise from a loose or misaligned top vent
• Replace if cracked, missing, deformed, or if the top vent is loose, misaligned, or leaking air

• Disconnect power and disconnect any ducting before servicing
• Support the unit as needed to safely access the top vent area
• Install the spacer in the original orientation; reuse original fasteners when applicable
• After reassembly, verify the vent path is aligned and all joints are sealed before restoring power

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit
