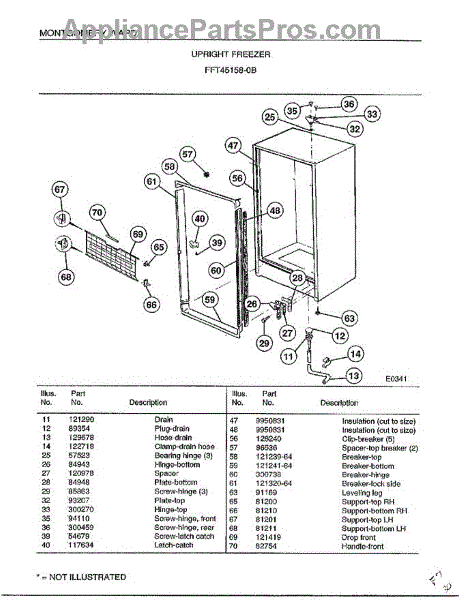

Parts for Frigidaire 45158B: Upright Freezer Page 5 Parts

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This flat washer is a small hardware spacer that helps distribute fastener load and protect mating surfaces for appliance assemblies. It provides a stable, flush bearing surface to keep screws and bolts seated securely. What it does:

• Distributes clamping force from screws or bolts to reduce surface damage
• Helps maintain even, secure connections and prevents pull-through
• Acts as a spacer to ensure proper clearance and alignment of parts
• Can reduce vibration-related loosening when used with the correct fastener

• Disconnect power and water to the appliance before servicing
• Match washer size and thickness to the original part for proper fit
• Place washer between fastener head and mating surface; avoid overtightening
• If missing corrosion or wear is present on fasteners, replace the fastener and washer together

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This top support (left) is a molded mounting bracket that secures the refrigerator cabinet or inner liner at the cabinet's upper-left corner to restore proper alignment and stable fit of the top section. It replaces a cracked, broken or missing upper-left support. What it does:

• Provides a secure mounting point for the refrigerator upper cabinet/liner to prevent sagging at the top left corner
• Restores correct alignment for doors and trim that may bind or gap due to a failed support
• Reduces vibration or noise caused by a loose/compromised upper corner connection
• Helps maintain a tight seal and proper operation by supporting structural components

• Designed to install in the refrigerator upper-left cabinet/liner; follow OEM disassembly steps
• Inspect surrounding clips/screws and replace any damaged fasteners
• Always unplug the appliance or disconnect power before servicing
