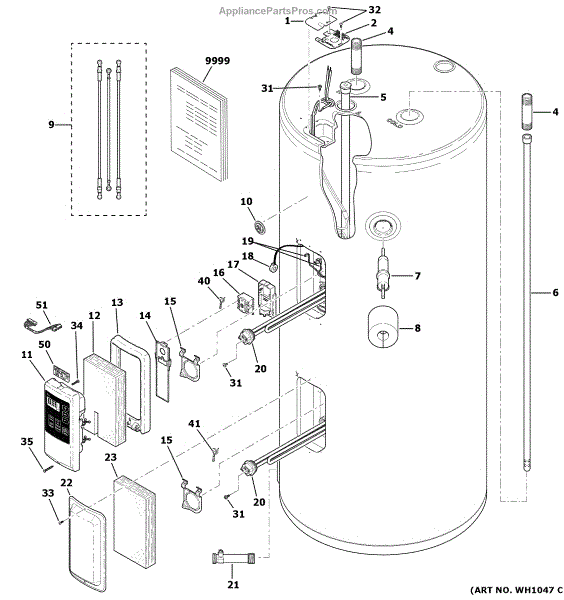

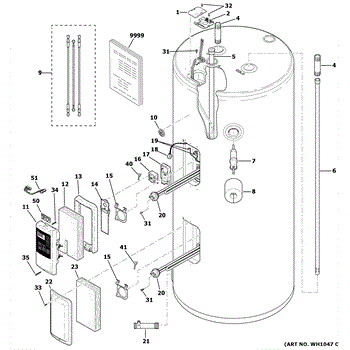

Parts for Ge GE40S10BLM01: Water Heater Assembly Parts

This badge is the small decorative nameplate used on the appliance exterior to display the manufacturer's emblem. It restores factory appearance and covers the original mounting location for a clean, finished look. What it does

• Replaces a damaged, faded, or missing exterior emblem to restore the appliance's original look
• Snaps or adheres into the existing badge location for a factory-correct appearance
• Helps identify the appliance visually without affecting function
• Common symptom: missing, scratched, or peeled badge on the appliance front

• One replacement badge/nameplate (exact fit for the listed part number)

• Installation is typically simple: align badge with mounting location and press into place; adhesive backing or snap clips may be used depending on model
• Clean mounting surface before installing to ensure good adhesion
• Use gentle pressure; avoid sharp tools that could scratch the finish
• If clips break during removal, replace clips only if explicitly listed as included

This electronic control assembly operates the oven's front control and display, restoring normal user inputs and timed cooking functions. It replaces a faulty control to help the oven accept settings, show the display, and run timed cycles reliably. What it does:

• Receives button/touchpad inputs and manages oven heating cycles and timers
• Controls oven temperature signals to the bake/ broil systems (allows programmed cook functions)
• Often used when the display is blank, buttons don't respond, or oven functions fail to start
• Works with the console to show time, temperature, and error codes

• One electronic control assembly

• Disconnect power at the breaker before replacing the control to avoid shock
• Handle the control by the housing; avoid static discharge and rough handling of the circuit board
• Keep mounting screws and wire connectors secure; verify connectors are fully seated before powering up
• Some ovens may require a short setup or clock reset after installation

This replacement heating element warms the water inside an electric water heater's tank. It helps restore consistent hot-water performance, and the gasket seals the element connection to help prevent leaks at the tank wall. What it does:

• Converts electrical energy into heat to raise and maintain water temperature
• Supports recovery after hot-water use
• Common failure symptoms: no hot water, not enough hot water, or slow recovery
• A worn or flattened gasket can cause seepage around the element port

• 1 heating element and 1 gasket

• Disconnect electrical power at the breaker; verify no voltage at the element
• Shut off cold water supply and drain the tank below the element level
• Remove old element, clean the sealing surface, install new gasket and element, and tighten securely
• Refill tank fully and purge air from hot-water lines; check for leaks; restore power only after the tank is full to avoid dry-firing

This is a 10-32 x 1/2 screw with a hex washer-style head used to fasten appliance panels and components securely. It replaces missing or damaged fasteners to restore proper fit and reduce vibration. What it does:

• Secures panels, brackets, and trim to the appliance frame
• Provides a low-profile, washer-style bearing surface for even clamping
• Helps stop rattling and movement caused by loose or missing screws
• Designed for use where a 10-32 thread and 1/2" length are specified

• Disconnect power and water before servicing the appliance
• Use the correct 10-32 driver or socket to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Replace with the exact screw size and type for safe, proper fit

This 10-32 x 1/2 in pan head screw secures panels and small components on appliances, giving a flush, finished hold and corrosion resistance from its zinc plating. Ideal when replacing a missing, loose, or stripped fastener. What it does:

• Fastens panels, brackets, and internal components with a 10-32 thread
• Pan head provides a low-profile, rounded bearing surface for trim and covers
• Zinc plating helps resist rust and wear in typical appliance environments
• Replaces missing or damaged screws that cause loose panels, rattling, or poor alignment

• Use the correct 10-32 driver (Phillips or slotted as originally used) and start threads by hand to avoid cross-threading
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Disconnect power and follow appliance safety instructions before servicing interior components
• Replace all matching fasteners for even fit and security

This Wi-Fi & Bluetooth control board restores wireless connectivity so your appliance can pair with smart devices and communicate with apps or hubs. It replaces a failed or unresponsive wireless module to re-enable remote monitoring and control. What it does:

• Provides Wi-Fi and Bluetooth radio functions for appliance app connectivity and smart features
• Enables remote diagnostics, notifications, and appliance-to-app communication when supported
• Replaces boards that show no wireless connection, intermittent pairing, or failed network registration
• Works as the appliance's primary wireless interface; does not include separate display or main control board functions

• One Wi-Fi & Bluetooth control board with instructions

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Follow manufacturer instructions for board handling and ESD-sensitive components
• Verify wiring harness connections and antenna leads are secured and routed per OEM guidance

This wire harness connects the appliance's Wi-Fi board to the control electronics, providing the signal and power pathways needed for wireless communication. Replaces a damaged or worn harness to restore reliable connectivity between modules. What it does:

• Carries power and signal between the Wi-Fi board and main control board
• Ensures proper connector alignment and secure electrical contact
• Can prevent intermittent Wi-Fi failures caused by loose, frayed, or broken wires
• Supports normal communication needed for remote diagnostics and smart features

• One wire harness as shown

• Disconnect power before servicing to avoid shock or damage
• Inspect connectors and mating sockets for damage; replace if corroded
• Route harness without sharp bends or pinch points; secure with original clips or ties
