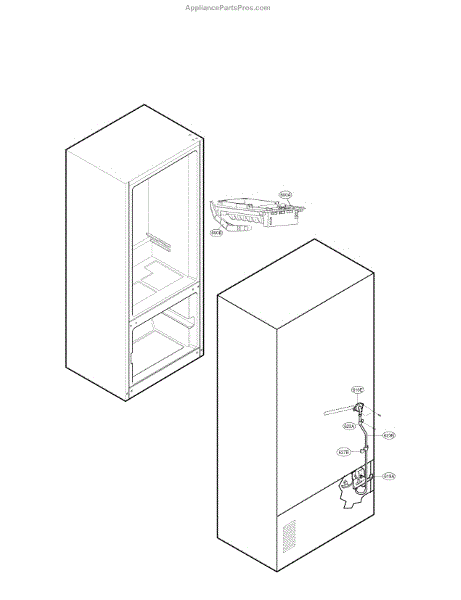

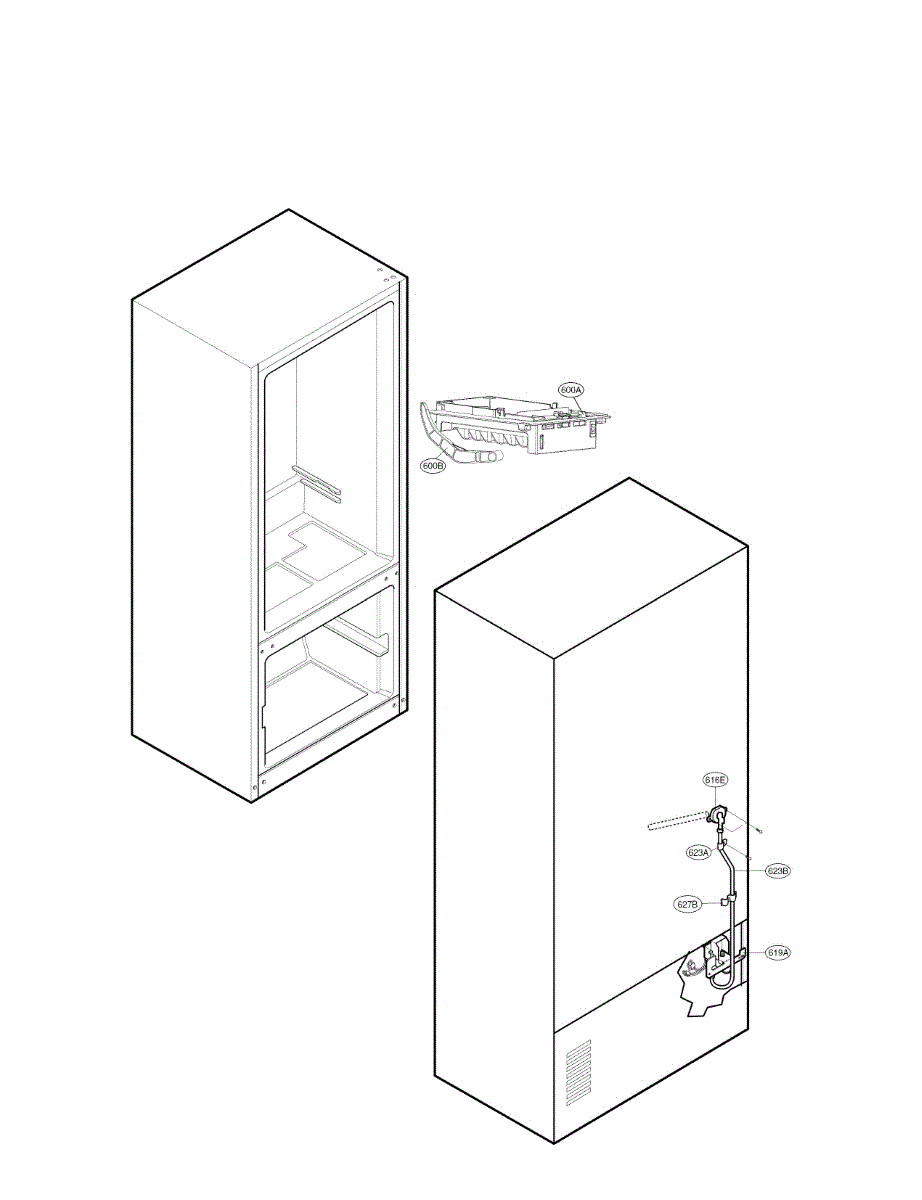

Parts for Lg LFC21776ST/04: Water And Ice Parts

This ice maker lever is the mechanical arm that controls ice production by interacting with the ice maker's on/off and level-sensing mechanism. Replacing a broken or missing lever restores proper operation and helps prevent overfilling or no-ice conditions.

• Acts as the ice maker's shut-off arm to regulate ice production
• Lowers to allow ice making; raises to stop when the bin is full
• Common symptoms: ice maker won't stop making ice, no ice when arm is stuck up, broken/missing lever, lever won't stay in position
• Helps ensure consistent, reliable ice production control

• Disconnect power and shut off water before service
• Remove the ice bin to access the ice maker; gently release the lever from its pivots/linkage
• Note lever orientation; transfer and reuse any original springs, clips, or fasteners
• Reinstall components, restore power, and verify free up/down movement of the arm

This water line holder secures and routes the refrigerator's plastic water tube so it stays protected and out of the way. Replacing a damaged holder helps prevent kinks and leaks and keeps water flowing to the dispenser and icemaker.

• Anchors and guides the water tube along the cabinet/door to prevent rubbing and kinking
• Helps maintain proper water flow to the dispenser and ice maker
• Replace if the holder is cracked, missing, or the tube won't stay seated
• Symptoms can include leaks or drips near the hinge/backs, slow or no dispensing, or visibly loose tubing

• Disconnect power and turn off the household water supply before servicing
• Access the holder (often behind a hinge cover, kick plate, or rear panel)
• Note tube routing, then release/remove the old holder and seat the tube in the new holder; reuse existing hardware if present
• Restore water and power; check for leaks and normal dispenser/ice operation

This water valve assembly controls water flow into the appliance, restoring proper fill and water shutoff for reliable operation. Replaces a worn or leaking valve to help stop unwanted filling or leaking during cycles. What it does:

• Opens and closes to allow incoming water when the appliance calls for a fill
• Stops water flow when fill is complete to prevent overfilling and leaks
• Can fail in ways that cause no fill, continuous filling, slow fill, or visible leaks
• Works with the appliance's control system and inlet hoses to regulate hot/cold flow

• One water valve assembly

• Turn off power and shut off both hot and cold water supplies before starting
• Drain residual water from hoses and disconnect inlet lines carefully to avoid spills
• Replace with the same valve orientation and secure all hose fittings and electrical connectors
• After installation, restore water and power, then run a short fill cycle and check for leaks

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten
