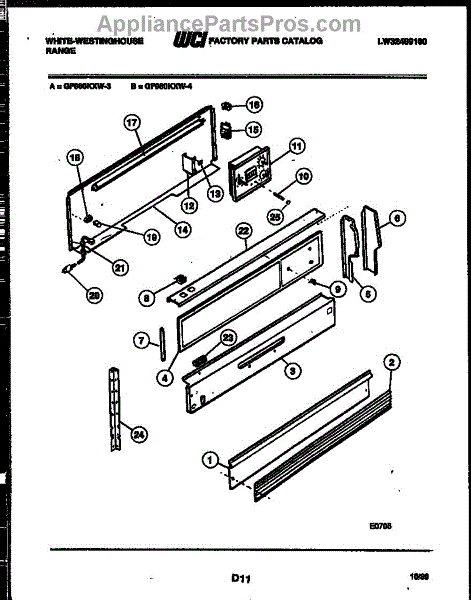

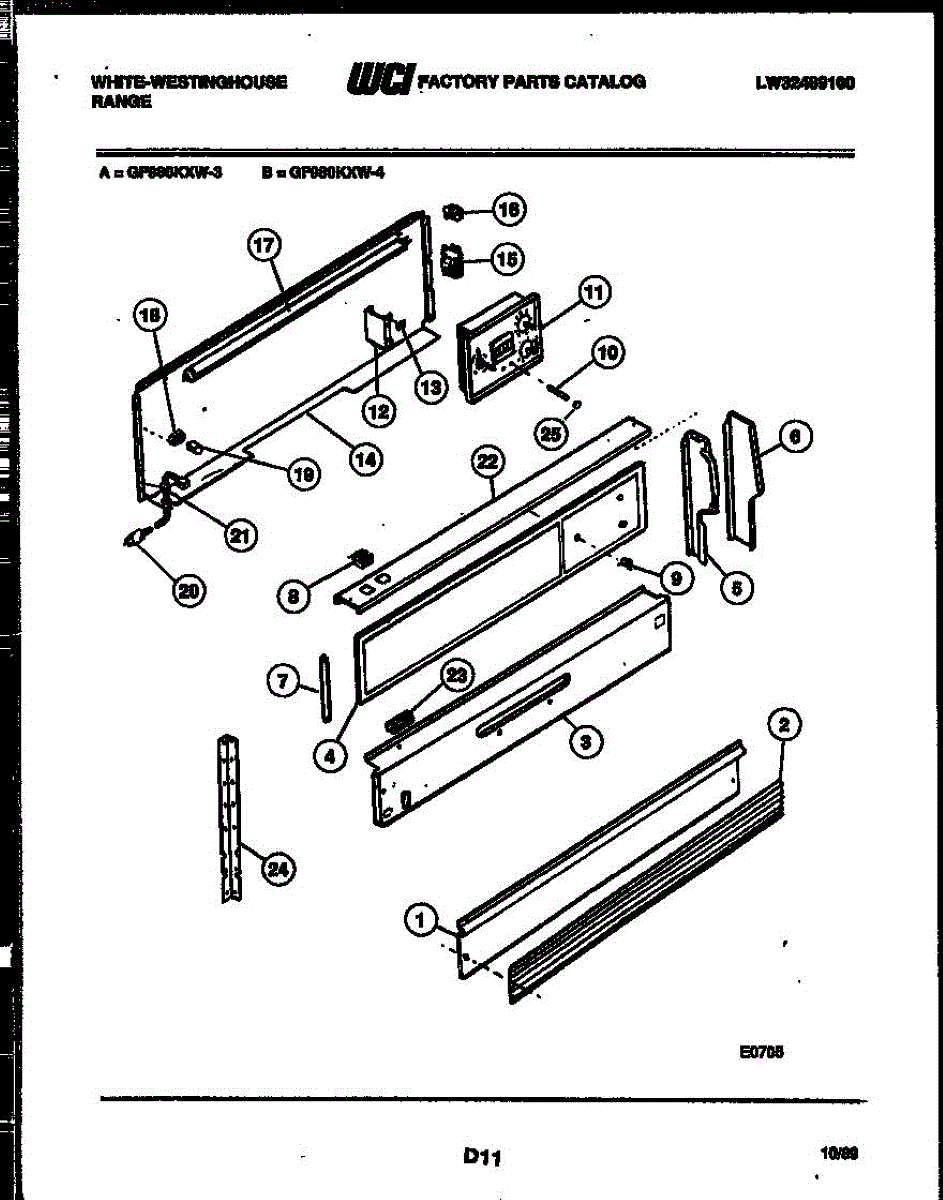

Parts for Frigidaire GF980KXD4: 02 - Backguard Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This terminal block secures and connects incoming power wires to the appliance's internal wiring, restoring a reliable electrical connection for safe operation. Fits applications that use a 3-terminal power connection. What it does:

• Provides a durable connection point for incoming line, neutral and ground conductors
• Replaces damaged, cracked or loose terminal points that can cause intermittent power or burning smell
• Secures wiring to the heating element or control harness to maintain consistent power delivery
• Helps prevent arcing or poor contact from worn terminals when installed correctly

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Verify wiring colors and terminal positions before removal; take a photo for reference
• Use appropriate insulated tools; tighten terminal screws securely but avoid over-torquing
• If corrosion or damaged wiring is present, replace affected wires or connectors as needed

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly
