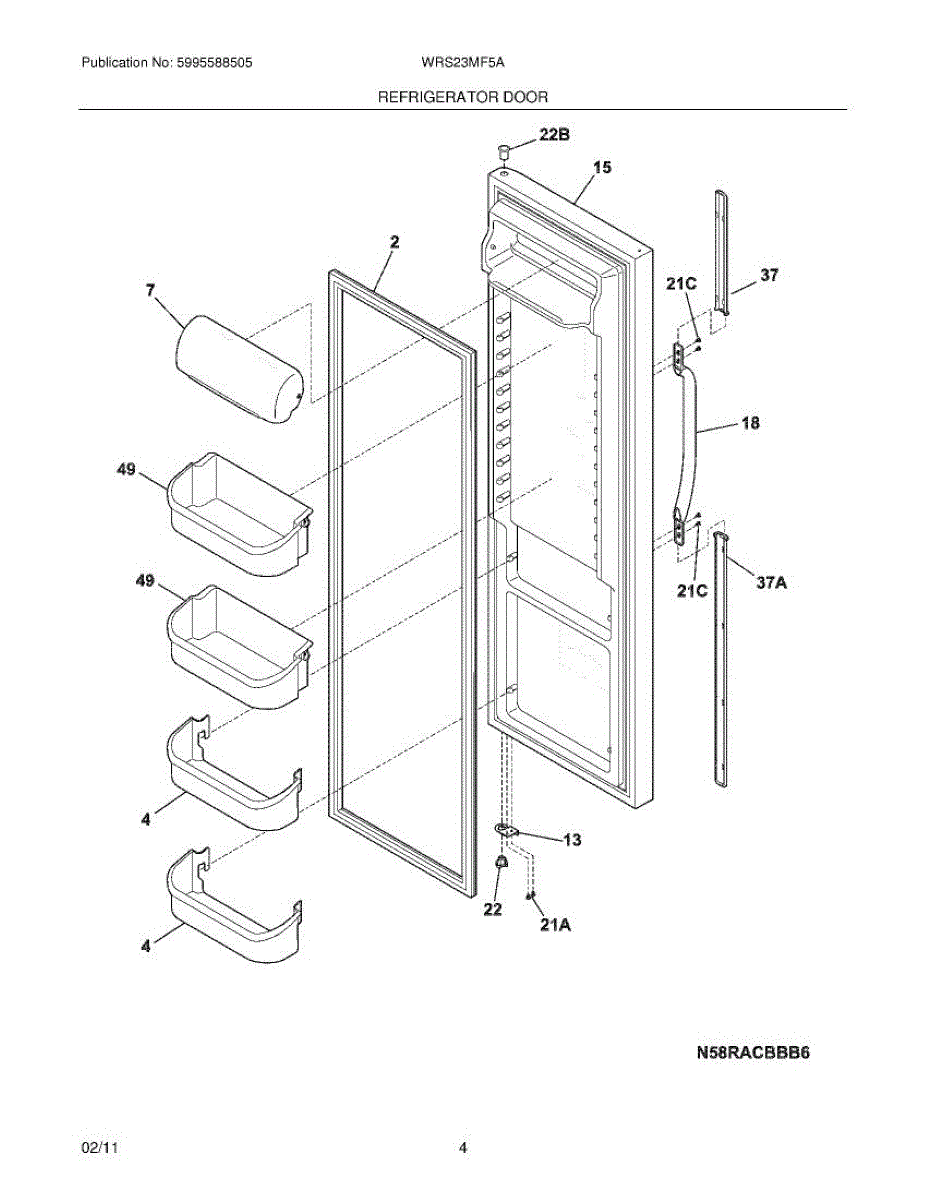

Parts for White Westinghouse WRS23MF5ASY: 05 - Refrigerator Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This door gasket seals the perimeter of the appliance door to keep cold air in and humid air out. Replace a torn, warped, or leaky gasket to restore stable temperatures, reduce frost/condensation, and help the unit run efficiently. What it does:

• Creates an airtight seal between the door and cabinet
• Helps maintain proper temperature and humidity inside the compartment
• Reduces frost buildup and condensation around the door opening
• Common failure signs: tears, gaps, warping, hard or cracked rubber, door not closing flush, warm spots

• 1 door gasket

• Unplug the appliance and clear items from the affected door.
• Condition the new gasket to remove shipping kinks by laying it flat and warming it (soak in warm water or use gentle, low heat).
• Remove the old gasket; on some models you may need to loosen liner-retainer screws to release it.
• Fit the new gasket into the channel, working from the corners; ensure it seats evenly all around and verify a uniform seal.

The Door Bin is an OEM part for Frigidaire refrigerators. This part attaches to the inside of the refrigerator door, offering additional storage space for bottles, jars, and other condiments. Designed for ease of installation and removal, the door bin enhances the refrigerator's storage capacity and organization, allowing for quick access to frequently used items.

Over time, door bins can become cracked, warped, or broken due to overloading, accidental impacts, or general aging. This can compromise their ability to securely hold items, leading to potential spills or damage to stored goods.

Symptoms of a bad Door Bin include:

• Visible cracks or breaks in the bin
• The bin sagging or not attaching securely to the refrigerator door
• Difficulty in sliding the bin in or out, or it not fitting properly
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dairy Door is an OEM replacement part for Frigidaire side-by-side refrigerators. As the access point to the dedicated dairy compartment, the door is designed with precision seals to maintain optimal humidity levels inside. This helps keep dairy and other perishable items fresh longer.

Causes of a bad dairy door can include worn or damaged seals, dents or impacts warping the door frame, or issues with the electronic components that control humidity levels.

Symptoms of a bad dairy door include:

• Excessive frost or ice buildup inside the dairy compartment
• Difficulty opening and closing the door smoothly
• Warm or dried-out dairy products despite a cold refrigerator interior
• Moisture leaks around the door seals

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore side-by-side models.

This refrigerator door stop limits how far the door swings open. Replacing a worn or broken stop restores the correct opening range, protecting the hinge and nearby cabinets while keeping door movement smooth and controlled.

• Mounts at the hinge to limit door swing and prevent overextension
• Protects the door, hinge, and adjacent cabinetry from impact damage
• Helps maintain proper door alignment and smooth operation
• Typical symptoms: door opens too far, bangs into surroundings, or the stop is visibly cracked/missing

• Disconnect power and clear items from the door before starting
• Support the door; remove hinge cover/fasteners and the damaged stop
• Install the new stop in the same orientation; tighten screws securely
• Reassemble and test the door swing to ensure it stops smoothly

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This hinge bearing supports and guides the refrigerator door as it pivots on the hinge, reducing friction and wear. Replacing a worn bearing restores smooth, quiet door movement and proper alignment for a reliable seal.

• Provides a low-friction pivot surface between the hinge pin and the door
• Helps support door weight and maintain alignment for proper gasket contact
• Common symptoms of a worn bearing: squeaking or popping, door sagging or binding, and doors that don't close smoothly or seal consistently
• Reduces hinge wear to help extend hinge life

• Disconnect power and remove items from the door for safety and easier handling
• Support the door, remove hinge cover and fasteners, and lift the door off the hinge
• Remove the worn bearing and install the new bearing in the same orientation on the hinge pin or seat
• Reinstall and align the door; tighten hardware and verify smooth movement and proper gasket seal

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

For crome decorative band at the end of the trim piece use part number 218676004.

Snap in

The Gallon Door Bin is an OEM replacement part for Frigidaire refrigerators. It is a spacious storage compartment designed to be mounted on the refrigerator door, providing convenient access to frequently used items. This bin measures approximately 13" wide and 7-1/4" deep.

Causes of a faulty gallon door bin can include physical damage, such as cracks or breaks, or issues with the mounting mechanism that secures it to the door.

Symptoms of a need to replace the gallon door bin:

• Cracks, chips, or other visible damage to the bin
• Difficulty in opening or closing the refrigerator door due to the bin's positioning
• Loose or unstable mounting, causing the bin to detach or fall off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.
