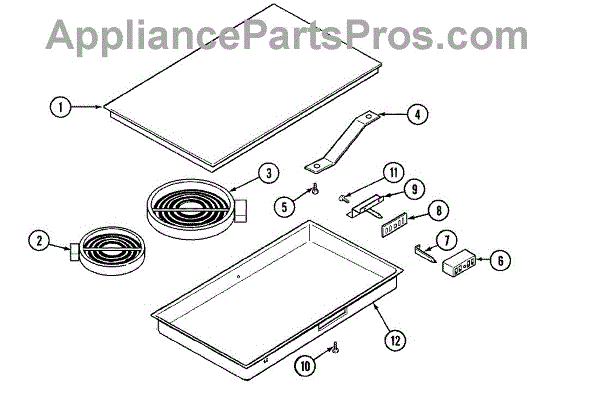

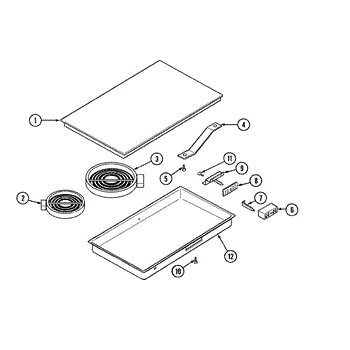

Parts for Jenn-Air AR140B: 01 - Accessories (Glass Cartridge) Parts

This part has been discontinued and we no longer have any in stock.

This surface heating element restores reliable heat to a cooktop burner. Replace a failed or damaged element to bring back even, responsive heating performance and consistent temperature control for everyday cooking.

• Converts electrical power into heat for one cooktop burner
• Common fix for a burner that won't heat or only heats intermittently
• Can address uneven heating or erratic cycling at a set temperature
• Appropriate when the element shows visible damage or burned spots

• Disconnect power at the breaker and allow the cooktop to cool completely
• Access varies by model; lifting the cooktop or removing the glass top may be required
• Handle the element carefully and avoid stressing the heating surfaces
• Move wires one at a time to matching terminals; ensure all connections are secure before reassembly

This surface heating element restores reliable heat to an electric range or cooktop's top burner. Replace a failed or damaged element to bring back even, responsive heating for everyday cooking. What it does:

• Supplies heat to the selected surface burner when the control is turned on
• Can correct no-heat, weak or intermittent heat, or overheating due to internal failure
• Replaces elements with visible damage such as breaks, burn marks, or hot spots
• Helps restore consistent temperature control across the cooking zone

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model; note wire locations and any brackets before removal
• Transfer wires and any retaining hardware to the new element in the same positions
• Avoid stressing the element or insulation; ensure it sits level and clear of glass/trim before reassembly

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This plastic terminal block insulator protects the dryer's power terminal area by covering exposed connections and helping prevent accidental shorts or arcing. Replaces a cracked or melted insulator to restore basic electrical protection at the terminal block. What it does:

• Covers and insulates the terminal block to reduce risk of electrical shorts and arcing
• Keeps wiring routed and separated at the power connection point
• Helps prevent damage from heat or contact that can lead to melting or sparking
• Commonly replaced when the original insulator is cracked, burned, or deformed

• Always disconnect power (unplug or shut off house circuit) before servicing electrical components.
• Inspect terminal block and wiring for heat damage; replace damaged wires or terminals as needed.
• Ensure terminals are cool and dry before reinstalling the insulator; seat it fully over the block for proper protection.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Size: 8-32 x 1/4 inch.
