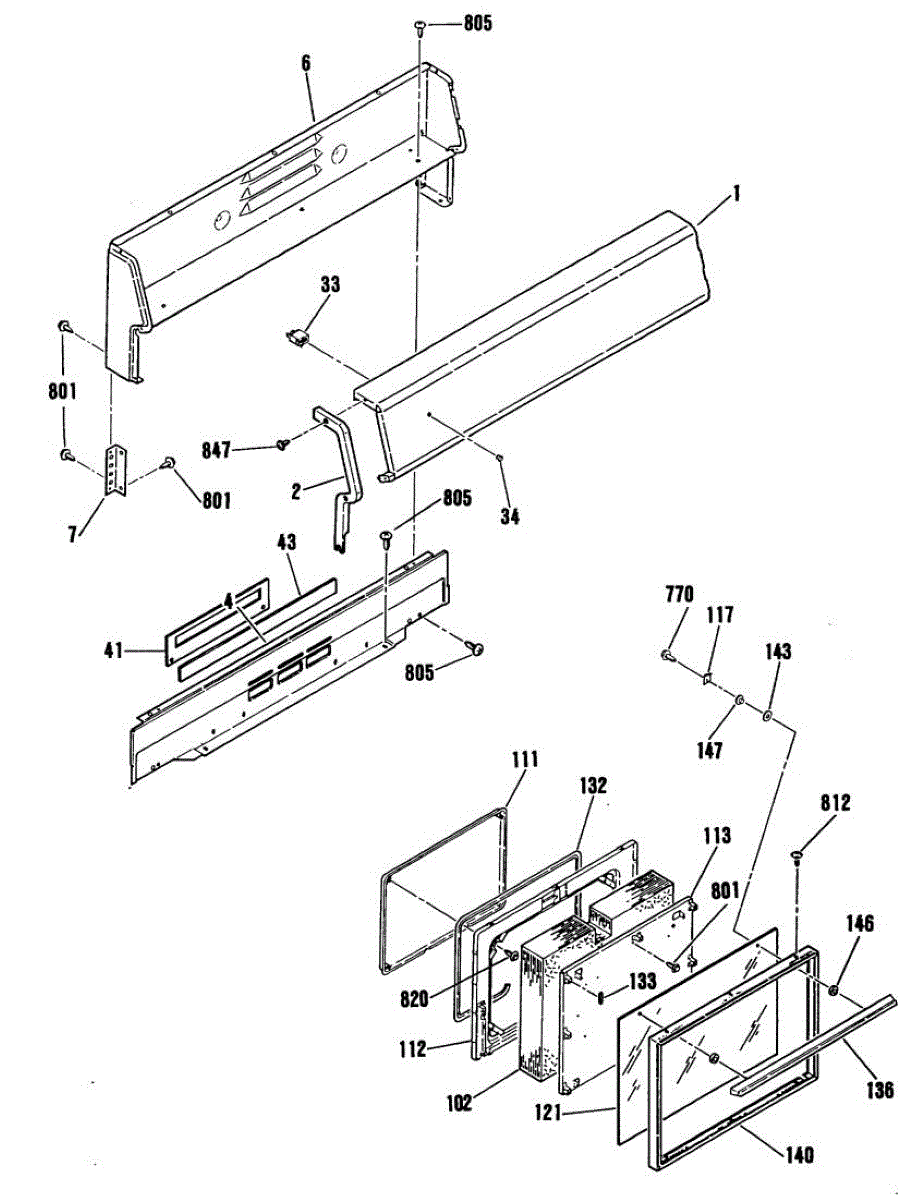

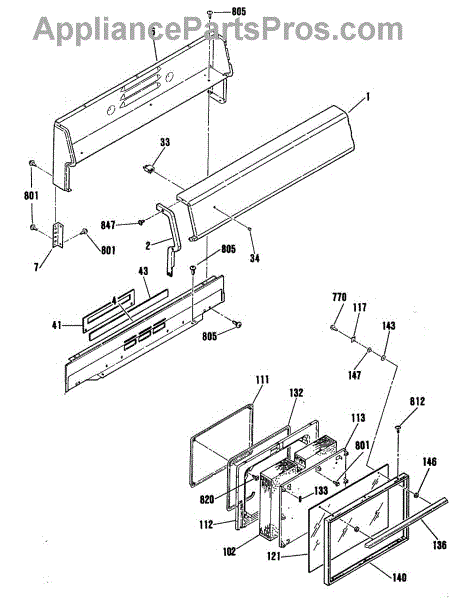

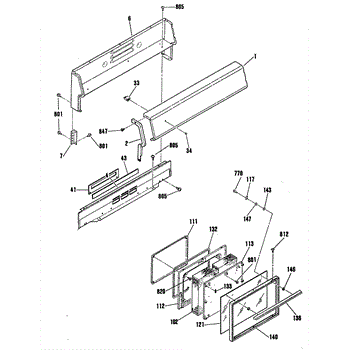

Parts for Ge RGB740GES1WH: 01 - Section1 Parts

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This replacement oven door gasket forms the heat-resistant perimeter seal around the door opening. Restores a tight seal to retain heat, support accurate temperatures, and reduce warm-air leakage for better baking performance.

• Creates the compressible seal between the oven cavity and door to keep heat in
• Helps the oven preheat efficiently and maintain even temperatures
• Reduces warm air and odors escaping around the door edge
• Common failure signs include fraying, flattening, gaps, longer preheat, or uneven baking

• Disconnect power and allow the oven to cool completely; wear gloves
• Open the door and remove the old gasket from its retainers/channels, noting clip locations and orientation
• Clean the groove/retainer; starting at the top center, press the new gasket in evenly without stretching and seat corners fully
• Close the door and check for uniform contact around the perimeter

This part has been discontinued and is no longer available.

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

ST10-16 X 7/16"

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

Package of 12

Nickel
