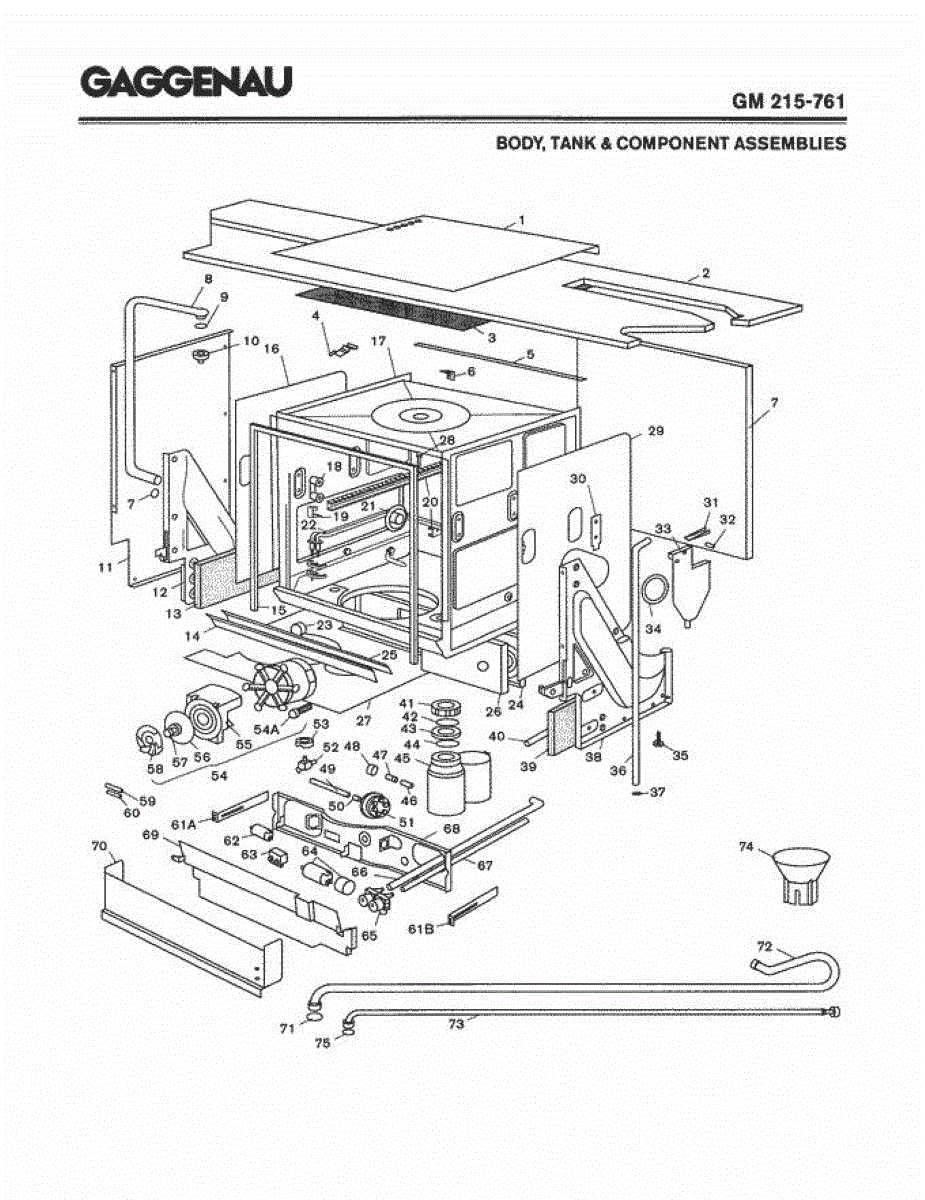

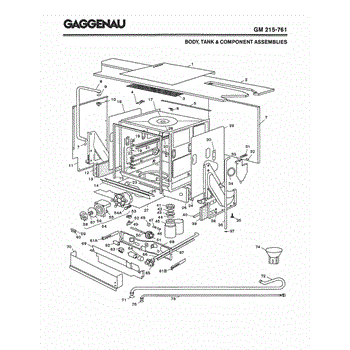

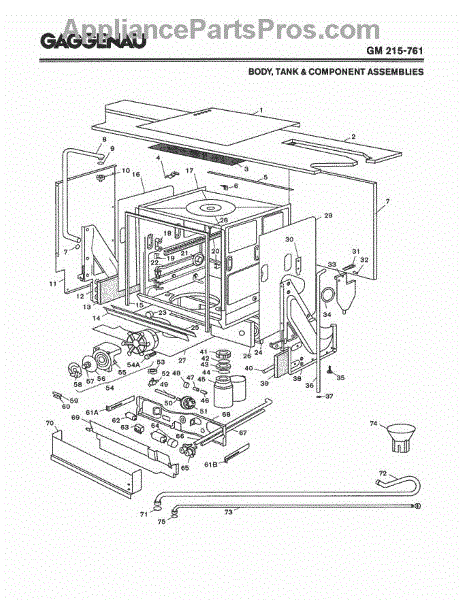

Parts for Gaggenau GM215-761: 01 - Body, Tank & Component Assemblies Parts

This door latch is the latch/lock assembly that secures the appliance door and completes the safety interlock so cycles can start. It restores proper door closure and helps the unit detect a closed door. What it does:

• Secures the door in the closed position so the appliance can operate
• Engages the door interlock so the control recognizes a closed door
• Commonly used when the door will not stay closed, or cycles won't start due to a faulty latch
• Helps prevent leaks by holding the door tightly against the gasket

• Disconnect power before starting any repair to avoid shock or injury
• Inspect door strike and latch alignment; replace or realign as needed
• Basic hand tools are typically required; handle the door carefully to avoid damage
• After installation, verify the door latches securely and the appliance starts normally

This upper orifice is the replacement gas jet that meters fuel to the oven's upper/broil burner, restoring correct burner flow and flame shape for reliable cooking performance. Ideal for worn, clogged, or damaged orifices. What it does:

• Controls the gas flow to the oven's upper/broil burner for proper flame size and heat output
• Replaces a cracked, corroded, or clogged orifice that can cause weak or uneven flames
• Helps resolve symptoms like burner that won't light, low flame, or irregular burning
• Matches OEM form and fit to maintain safe burner operation when correctly installed

• One upper orifice (quantity: 1)

• Shut off the appliance and gas supply before servicing; follow all safety procedures
• Inspect nearby fittings and seals; use correct thread engagement and torque when installing
• After installation, check for gas leaks and proper ignition/combustion before normal use

This is a small black replacement pin used to secure internal components on compatible Bosch appliances. It restores proper alignment and movement where the factory pin has worn or broken. What it does:

• Secures and aligns moving parts or assemblies that rely on a press-fit or pivot pin
• Stops slop or misalignment caused by a worn or missing pin
• Helps restore normal operation of the affected mechanism without replacing larger assemblies
• Commonly used where a compact, non-corroding pin is needed

• Disconnect power to the appliance before starting any repair
• Handle small parts carefully; keep track of orientation and retainers for reassembly
• Use appropriate hand tools or pliers; avoid excessive force that could damage surrounding components

This door latch/lock assembly secures the dishwasher door and signals the control to start and run cycles, restoring proper door closure and safety interlock operation. Fits common Bosch dishwasher front-door latch applications. What it does:

• Secures the dishwasher door shut during operation to prevent leaks and allow cycle start
• Engages the door switch/interlock so the control recognizes a closed door
• Helps stop the washer if the door is opened mid-cycle for user safety
• Resolves symptoms like a dishwasher that won't start, stops mid-cycle, or shows door/lock error codes

• Disconnect power and water to the appliance before beginning repair
• Remove the dishwasher door inner panel to access the latch; handle trim and fasteners carefully
• Verify wire connector orientation and test operation before reassembling the door panel

This spring-style hose clamp secures flexible water hoses and drain lines to fittings to help prevent leaks and maintain proper connections. It's a simple replacement for worn or weakened clamps to restore a tight hose seal. What it does

• Applies even spring tension around a hose to hold it firmly on a barbed fitting
• Helps stop common symptoms like leaking at hose connections or loose hoses during operation
• Restores proper hose seating after corrosion, deformation, or loss of clamping force

• One spring-style hose clamp

• Use pliers designed for spring clamps to expand the clamp, then slide into position and release carefully
• Inspect the hose and fitting for damage; replace hose if cracked, brittle, or badly deformed
• Disconnect power and water supply before servicing to avoid electrical shock or flooding
• Dispose of the old clamp and any damaged hose pieces safely

This left-side rack rail guides a dishwasher rack along its track for smooth in-and-out movement, restoring proper rack alignment and stable loading. Use when the rack slips, binds, or rides unevenly. What it does:

• Guides the dishwasher rack along the left side for consistent travel and alignment
• Helps prevent the rack from falling off the track or shifting during cycles
• Reduces scraping, binding, or noisy rack movement caused by a damaged rail
• Restores proper rack positioning so dishes load and unload securely

• One left-side rack rail

• Disconnect power and shut off water before beginning any repair
• Inspect matching right rail and rack rollers; replace any damaged components for best function
• Installation typically requires removing the lower rack and snapping or fastening the rail into place; retain all hardware

This right-side rack rail guides a dishwasher rack for smooth sliding and stable support. Replaces a worn or broken rail to restore proper rack movement and prevent the rack from sticking or falling. What it does

• Guides the right side of the upper or lower rack so it slides in and out smoothly.
• Replaces a cracked, bent, or worn rail that causes uneven rack travel or a rack that drops.
• Helps keep the rack aligned to prevent dishes from shifting or contacting the door.
• Works with the existing rollers or glides to restore normal rack operation.

• One right-side rack rail (single piece as described).

• High-level replacement; disconnect power and water supply to the appliance before beginning any work.
• Handle edges carefully; support the rack while removing and installing the rail to avoid damage.
• Use basic hand tools and follow the appliance manufacturer's service instructions or an OEM parts diagram.

This part has been discontinued by the manufacturer and is no longer available.
