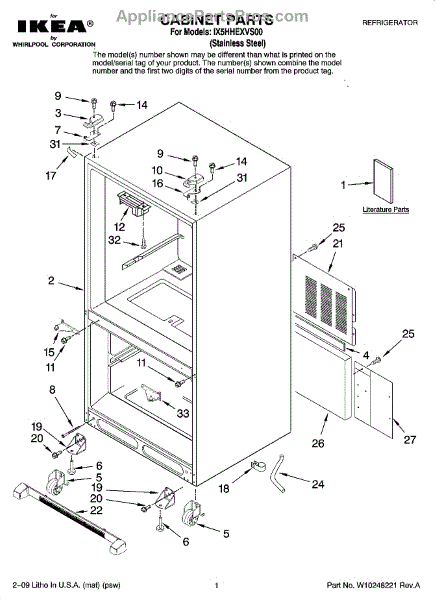

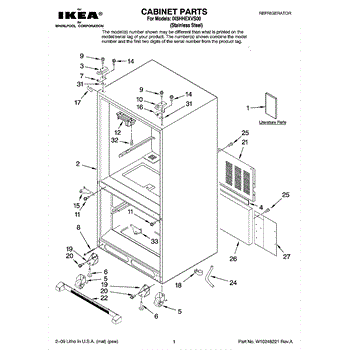

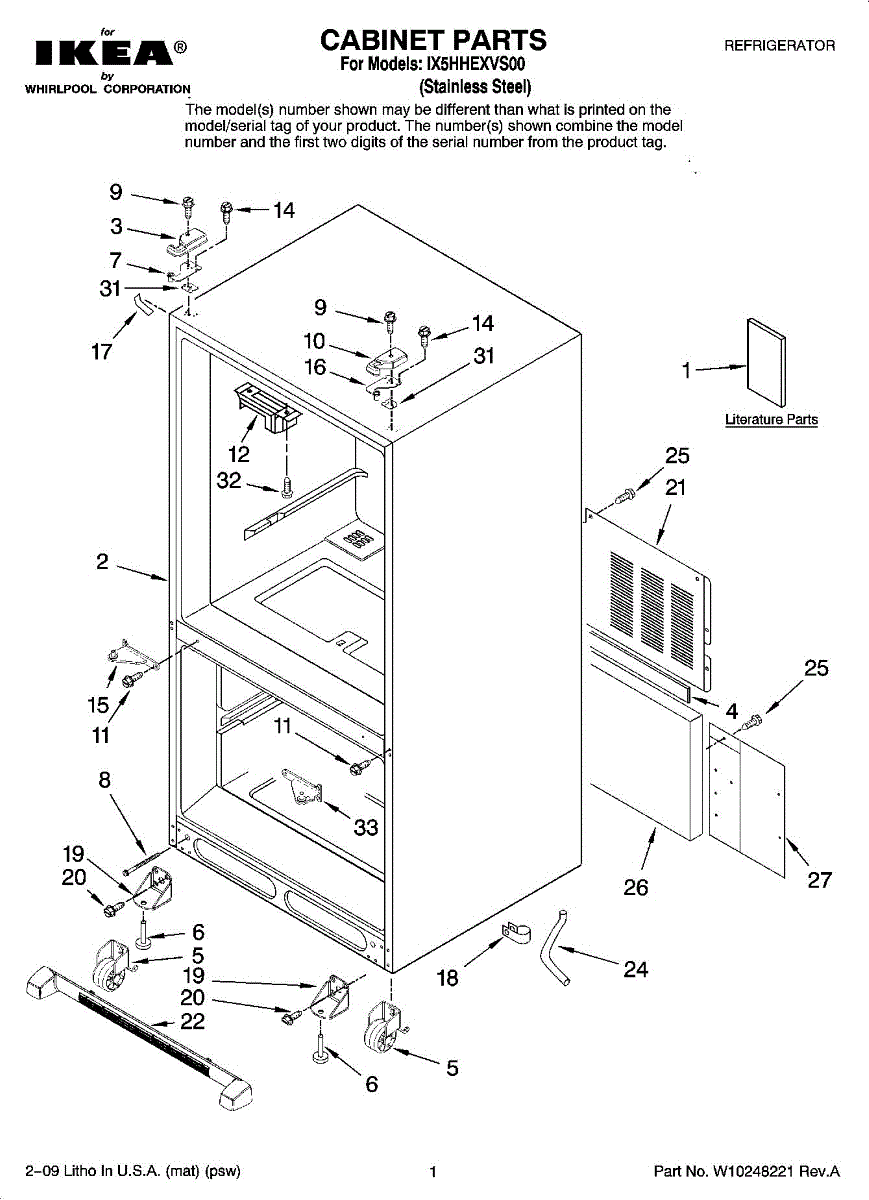

Parts for Whirlpool IX5HHEXVS00: 01 - Cabinet Parts

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement

This top hinge assembly secures and guides the refrigerator door at the cabinet top, restoring correct alignment for smooth opening and closing. Replace a worn or bent hinge to stop door sagging and improper sealing. What it does

• Supports the top of the refrigerator door and provides the pivot point for normal door movement
• Restores proper door alignment to prevent rubbing, gaps, and poor seal
• Reduces stress on the door and lower hinges caused by a bent or damaged top hinge
• Helps stop wind-up or binding when opening or closing the door

• Disconnect power and empty/secure the door before removing hinge fasteners to prevent injury or damage
• Support the door while replacing the hinge; two-person lift recommended for heavy doors
• Reuse or replace any hinge shims/screws only if explicitly specified by your model's parts list
• After installation, confirm door alignment and gasket seal; make minor adjustments as needed

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

The Refrigerator Pivot Block is an OEM part for Whirlpool refrigerators. It supports the door hinge, allowing the refrigerator door to open and close smoothly. The pivot block ensures that the door stays aligned and securely attached to the refrigerator frame.

Causes of a bad pivot block can include wear and tear over time, heavy use, or damage from accidental impacts. Misalignment or excessive force when opening and closing the door can also contribute to its failure.

Symptoms of a bad refrigerator pivot block include:

• The refrigerator door not opening or closing properly
• A misaligned door that doesn't seal correctly
• Unusual noises when the door is operated
• The door feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This door hinge secures and pivots a refrigerator door, restoring smooth opening and proper alignment to prevent gaps and uneven closing. Designed to match OEM form and fit for reliable operation. What it does:

• Provides a durable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and cooling performance
• Reduces door sag and uneven gaps that can cause leaks or rubbing
• Fits the original hinge location and mounting pattern for correct operation

• Support the door before removing the old hinge to prevent injury or damage
• Disconnect power to the appliance if required for access or to avoid electrical components
• Use basic hand tools; follow OEM instructions for torque and fastener sequence
• Inspect and repair before installation if hinge mounting holes or door alignment are damaged.

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

The Kickpanel is an OEM part for Whirlpool refrigerators.This part provides a finished look while protecting internal components such as the condenser coils and compressor from dirt and debris.

Causes of a bad kickpanel can include physical damage from impacts, wear and tear from regular use, or breakage during cleaning or maintenance.

Symptoms of a bad kickpanel include:

• Visible cracks or breaks in the panel
• The panel not fitting securely or becoming detached
• Increased noise levels from the refrigerator
• Accumulation of dirt and debris around the exposed area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement drain tube directs discharged water from the appliance to the household drain, helping restore proper drainage and reduce the risk of leaks. Designed to match OEM fit and routing for straightforward replacement. What it does:

• Channels drained water away from the appliance to prevent pooling and leaks
• Replaces cracked, split, or collapsed tubing that causes slow or no drainage
• Restores proper flow when water backs up or drains intermittently
• Works with factory clamps and fittings to maintain a secure seal

• Disconnect power and shut off water supply before beginning service
• Inspect surrounding fittings and clamps; replace any damaged hardware for a reliable seal
• Follow the appliance service manual for correct routing and clamp locations
• If you smell gas or detect significant water damage, stop.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This door hinge secures and pivots a refrigerator door, restoring smooth opening and proper alignment to prevent gaps and uneven closing. Designed to match OEM form and fit for reliable operation. What it does:

• Provides a durable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and cooling performance
• Reduces door sag and uneven gaps that can cause leaks or rubbing
• Fits the original hinge location and mounting pattern for correct operation

• Support the door before removing the old hinge to prevent injury or damage
• Disconnect power to the appliance if required for access or to avoid electrical components
• Use basic hand tools; follow OEM instructions for torque and fastener sequence
• Inspect and repair before installation if hinge mounting holes or door alignment are damaged.
