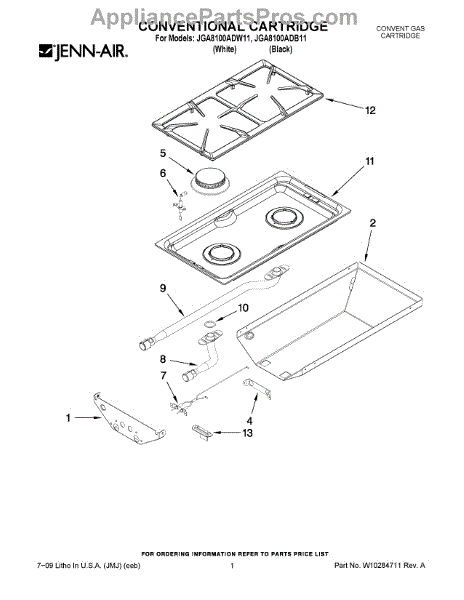

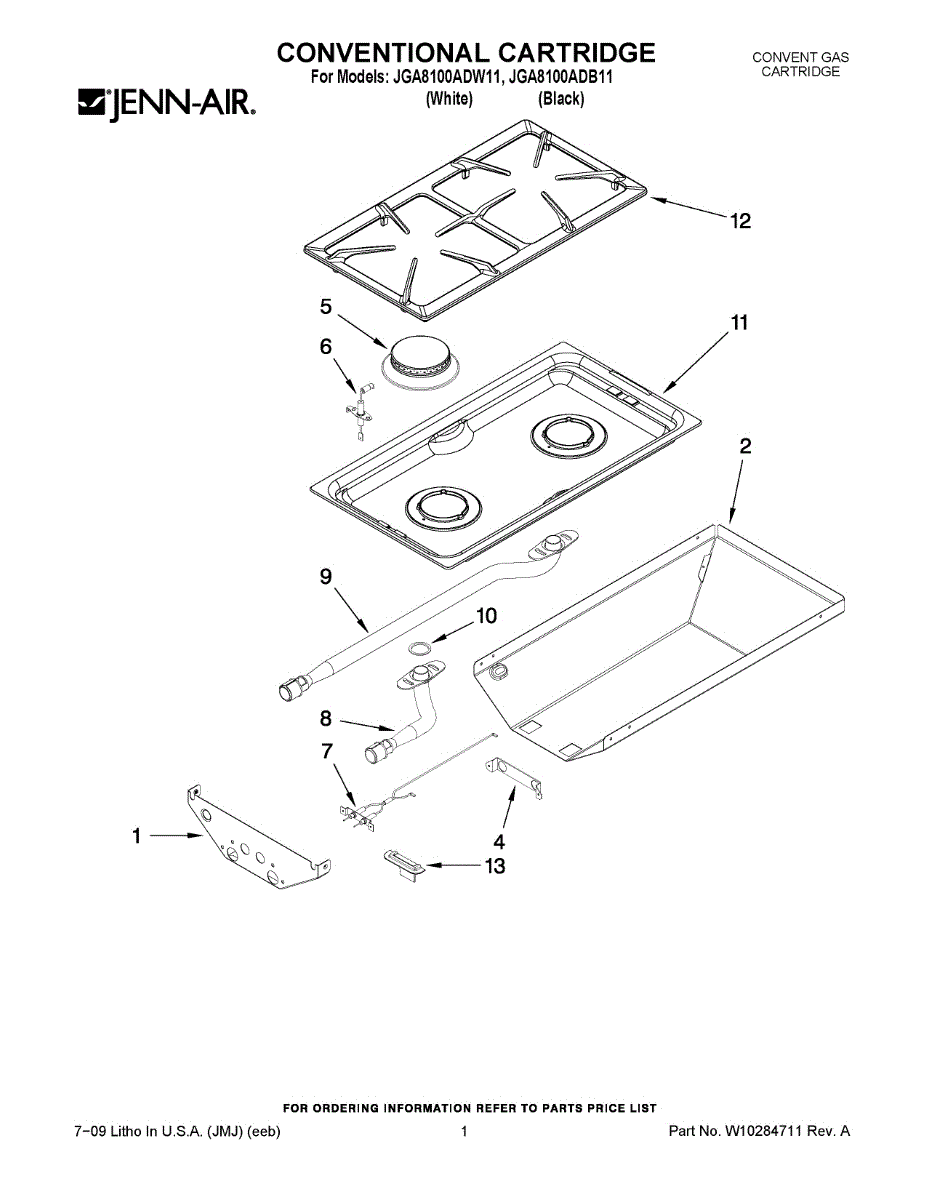

Parts for Maytag JGA8100ADW11: 01 - Conventional Cartridge Parts

This is a replacement spark electrode. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a burnt-out or faulty spark electrode in various models of gas stoves and ranges.Spark electrodes provide a spark that will catch the gas in order to ignite the burner. If the burners will not light, or the gas igniter glows but won't ignite, this part may be the issue. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any appliances. Please make sure that the stove is entirely disconnected from gas and power before starting the repair work. Proper tools may be required to install this part. For more accurate information on how and where to install this spark electrode, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this spark electrode is suitable for use on several different models of refrigerators manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable, non-corrosive materials and is sold individually.

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The front venturi is the front section of the burner venturi tube that mixes air with incoming gas for proper burner combustion. Replacing a damaged or clogged venturi helps restore reliable ignition and a steady flame. What it does:

• Directs and mixes air with gas before the burner to support stable, even flames.
• A worn, cracked, bent, or clogged venturi can cause weak flames, uneven heat, or difficulty lighting.
• Sits at the front portion of the burner venturi assembly and aligns gas flow into the burner head.
• Works with the rest of the burner components to maintain proper combustion characteristics.

• Turn off gas supply and unplug appliance before servicing; follow all local codes for gas work.
• Remove burner grates and burner head to access the venturi; handle carefully to avoid deforming the tube.
• Inspect surrounding burner parts and clean any debris before reassembly.
• After reinstalling, check for correct ignition and a steady flame; perform a leak check if gas lines were disturbed.

Rear venturi directs the gas/air flow from the valve to the burner for proper ignition and heating. Replacing a damaged or clogged venturi helps restore consistent flame and improve dryer heating performance. What it does:

• Channels and shapes the air/gas mixture to the burner assembly for reliable ignition.
• Helps maintain consistent burner flame and steady heating during operation.
• Commonly replaced when the dryer has weak or no flame, reduced heat, or intermittent heating.
• Fits the rear mounting location and mates to the burner/gas valve interface.

• Turn off the gas supply and unplug the dryer before beginning work; only service when the appliance is cool.
• Remove the dryer rear panel or access cover to reach the burner housing and venturi; handle internal components carefully.
• Inspect gaskets and seal surfaces; replace any damaged seals and check gas connections for leaks after reassembly.

This brass seal is used on range and cooktop tubing connections to create a tight, leak-resistant joint. Replace a deformed or worn seal whenever the line is serviced so the burner system operates safely. What it does:

• Forms a tight seal in a compression-style fitting between the tube and mating connector
• Helps prevent gas odors or hissing at the joint
• Can improve ignition and flame stability when a leaking connection is corrected
• Intended to be replaced when the connection is disassembled or the old seal is crushed/deformed

• Shut off gas supply and power before servicing; allow components to cool
• Inspect tubing and fitting surfaces; replace any nicked, bent, or out-of-round parts
• Align the tube squarely and tighten per OEM guidance—do not overtighten
• After assembly, leak-test the joint with an approved solution; if leaks persist, stop.

This is the replacement cooktop, also called the main top, for sealed-burner gas units. It forms the cooking surface around the burners to contain spills, restore appearance, and keep grates and burner parts seated securely for safe, even heating.

• Forms the main cooking surface and supports burner heads/caps and grates
• Sealed-burner design helps keep spills on top, protecting components below
• Maintains proper burner alignment and flame pattern
• Common symptoms: cracks, chips, dents, rust, or warping; wobbly grates or gaps around burner openings

• Disconnect power and shut off the gas supply before servicing
• Remove grates, burner caps, and the screws securing burner heads; lift off the old top
• Transfer/reconnect igniters and wiring as equipped; avoid pinching wires during reassembly
• Restore gas and power, verify ignition on all burners, and check for leaks

This replacement grate cartridge secures and centers a cooktop burner grate so cookware sits level and burners perform as intended. Durable design restores stable support for pots and pans on compatible gas ranges. What it does:

• Replaces a worn or broken grate cartridge that lets the grate rock or sit unevenly
• Helps keep the burner grate properly aligned over the burner for even cooking
• Prevents cookware from wobbling or shifting during use
• Restores proper fit where the grate attaches to the cooktop surface

• One grate assembly (cartridge) as shown

• Turn off and disconnect power and gas supply; allow the range to cool completely before servicing
• Remove the burner grate and lift out the old cartridge; align tabs and snap or seat the new cartridge into place
• Handle enamel-coated grates carefully to avoid chipping; use soft padding if needed during installation
