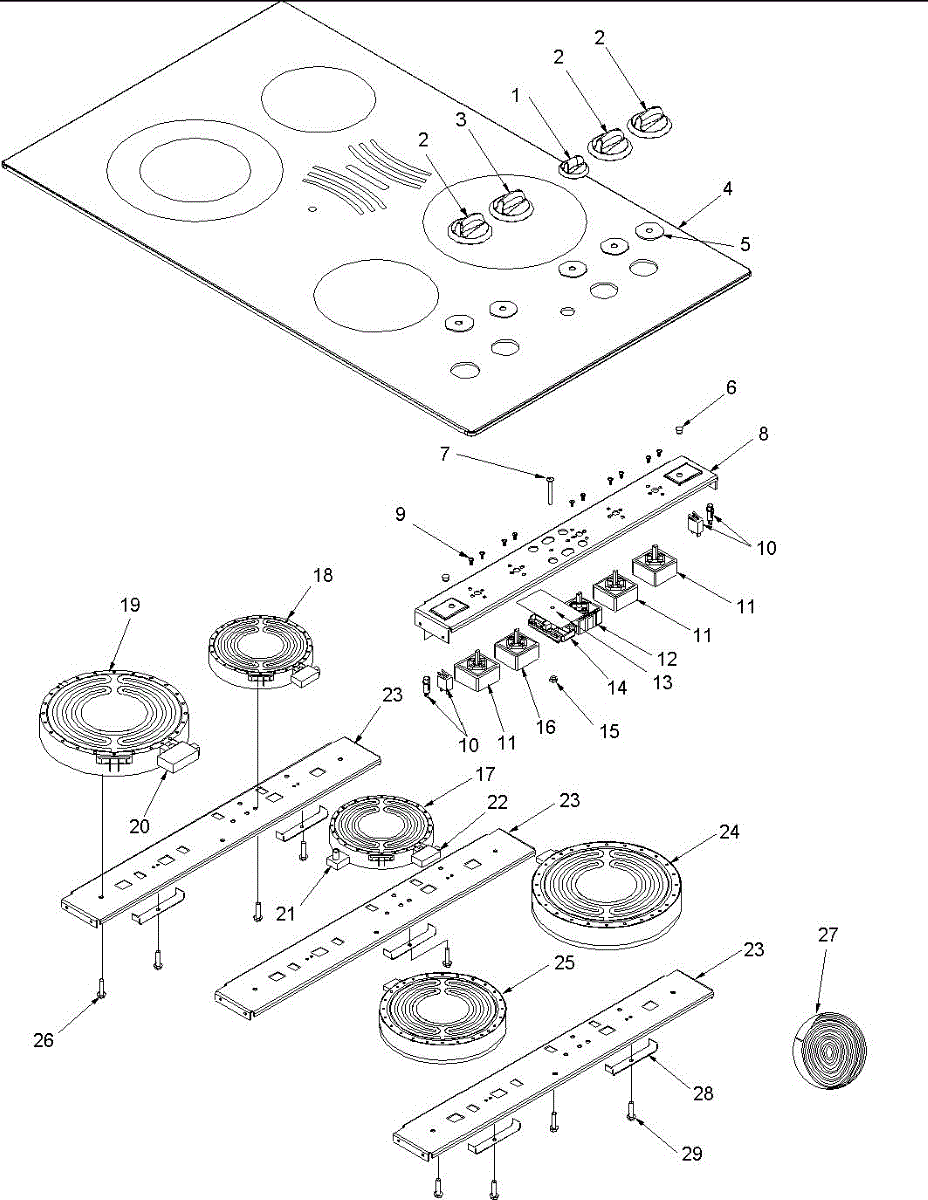

Parts for Amana AKT3630E / P1143717N E: 01 - Cooktop Assembly Parts

Size: 8-32 x 1/4 inch.

The infinite switch regulates power to your range or cooktop's surface element, letting you set heat from low to high. Replace a failed switch to restore dependable burner control and consistent cooking performance.

• Regulates on/off power cycling to the surface element based on the knob setting
• Helps resolve no-heat, stuck-on-high, won't-turn-off, or erratic/uneven heat issues
• Often controls the surface "on" indicator light circuit; failure may affect the light
• Installs behind the control knob and connects to the existing wire harness

• Disconnect power at the breaker; allow the appliance to cool completely
• Remove the knob and access panel to reach the switch
• Photograph wiring and transfer wires to the same labeled terminals (commonly L1, L2, H1, H2, P)
• Reassemble, restore power, and test multiple heat settings; check the element and wiring

A small fastening nut that secures the top pilot assembly on gas ranges and ovens, keeping the pilot tube and components properly positioned for reliable ignition. Use when the original nut is stripped, loose, or missing. What it does:

• Secures the top pilot/pilot tube to the burner assembly so the pilot remains correctly aligned.
• Helps maintain a stable pilot flame by keeping components from shifting.
• Commonly replaced when the pilot assembly is loose, the pilot won't stay lit, or there is visible wear on the nut.
• Simple replacement part that restores proper mechanical fastening for the pilot.

• Turn off gas supply and power to the appliance before beginning any work.
• Use the correct-sized wrench or socket to avoid rounding the nut; tighten just until secure — do not overtighten.
• Inspect pilot tube and surrounding fittings for damage or leaks when replacing this nut.

This dual infinite switch kit replaces the pair of infinite switches that control surface-burner heat on compatible electric ranges, restoring smooth, adjustable burner temperature and reliable heat response for proper cooking performance. What it does

• Replaces the infinite switches that regulate power to surface burners for precise heat control.
• Fixes symptoms like burners that won't heat, won't change temperature, or only operate on a single setting.
• Addresses intermittent or inconsistent burner output and erratic control behavior.
• Restores proper knob-response when the original switch fails or loses contact.

• Disconnect power at the breaker before accessing the range back or control panel to avoid shock.
• Handle wiring terminals carefully; match wires by color/position and secure connections firmly.
• Test burner operation after installation and reassemble panels per the service manual.

Restore reliable, even heat to a single cooking zone with this surface heating element. It replaces a failed top burner element on an electric range or cooktop so pots and pans heat consistently for everyday cooking. What it does:

• Supplies controlled heat to one cooktop burner zone
• Helps resolve: burner won't heat, intermittent heating, or very slow heat-up
• Can address uneven heating or visible damage to the element
• Replaces an open/failed element to restore normal cooking performance

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model's service manual; support the cooktop if lifting a glass top
• Note wire locations and transfer connections one at a time to the new element
• Secure the element with existing brackets/clips as designed, then test operation before reassembly

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even cooking performance and reliable heat for everyday pots and pans. What it does:

• Provides direct heat to cookware on the cooktop so burners reach cooking temperature
• Replaces a cracked, broken, or non-heating top burner element
• Fixes symptoms like a burner that stays cool, heats intermittently, or heats unevenly
• Works as a direct replacement for the listed part when the element is the failed component

• Disconnect power to the appliance at the breaker or unplug the range before starting any work
• Allow the cooktop and element to cool completely; handle carefully to avoid cuts from edges
• Reconnect wires to the matching terminals and secure the element in the appropriate retainer;

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a one inch piece of tape
