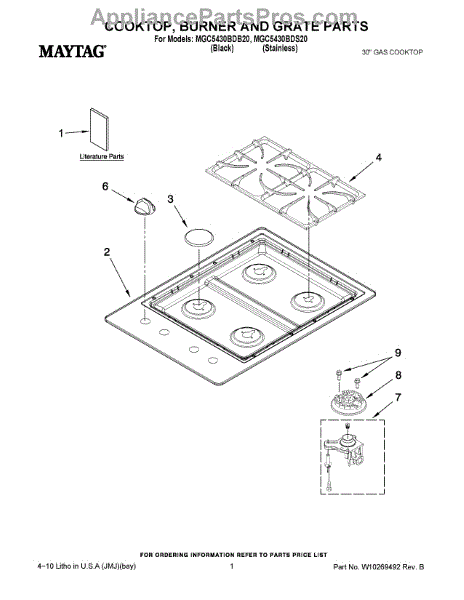

Parts for Maytag MGC5430BDS20: 01 - Cooktop, Burner And Grate Parts

The Cap-Burner (Black) is an OEM part for Whirlpool gas ranges and cooktops. This burner cap sits on top of the right rear burner head and helps distribute the flame evenly for efficient cooking. It also protects the burner head from spills and debris, ensuring proper functionality and longevity of the burner.

Over time, burner caps can become damaged or worn out due to constant exposure to high temperatures, spills, and regular cleaning. A bad burner cap can lead to uneven flames, poor cooking performance, and potential damage to the burner head.

Symptoms of a bad burner cap include:

• Uneven or irregular flame
• Flames that are too high or too low
• Difficulty igniting the burner
• Visible cracks or discoloration on the cap

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Cap (Black) is an OEM part for Whirlpool gas ranges. This cap sits on top of the burner head for the left rear and center, evenly distributing the flame for efficient cooking and protecting the burner head from spills and debris. It is designed to withstand high temperatures and ensure consistent heating performance. The caps fit the left and right front burners.

Common causes of a bad burner cap include chipping or cracking from thermal stress, rust or corrosion from spills, and wear from frequent cleaning.

Symptoms of a bad burner cap include:

• Uneven or weak flame distribution
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• The burner not functioning efficiently

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Measures about 2 inches in diameter. For white order WP74011276.

This orifice holder secures the burner orifice to the gas burner assembly, ensuring stable gas flow for reliable ignition and consistent flame performance. Use it to restore proper burner operation on compatible gas ranges and cooktops. What it does:

• Holds the burner orifice in the correct position so gas is metered properly to the burner
• Helps restore consistent flame height and shape when a worn or damaged holder causes poor combustion
• Common symptom linkage: burner won't light, weak or uneven flame, or inconsistent heating
• Works with the matching orifice size (12K) to maintain designed burner output

• TURN OFF gas supply and electrical power before beginning any service
• Remove burner parts and replace holder, then reinstall orifice and burner cap in correct order
• After reassembly, check for gas leaks at connections with a soapy-water test; do not use an open flame

This surface burner orifice holder channels gas from the valve to the burner and positions the orifice correctly for the 9.2K burner. Replacing a damaged holder restores proper gas flow, ignition, and consistent flame performance.

• Routes gas from the surface valve to the burner and houses the orifice
• Provides correct orifice alignment/seal for the designated 9.2K burner
• Helps ensure stable flame height and reliable ignition
• Typical failure symptoms: weak or uneven flame, delayed ignition, or gas odor near that burner

• Disconnect power and shut off gas; allow appliance to cool before servicing
• Remove burner cap and head to access, then support fittings with two wrenches when loosening/tightening to avoid stressing the manifold
• Transfer any reusable parts from the original assembly only as directed by your model's service information
• After installation, restore gas and check all connections for leaks with an approved leak-detection solution; verify flame and ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
