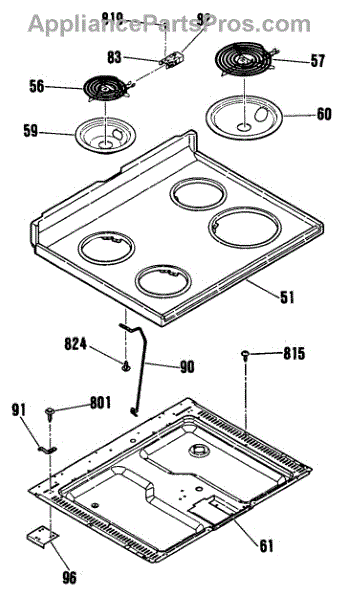

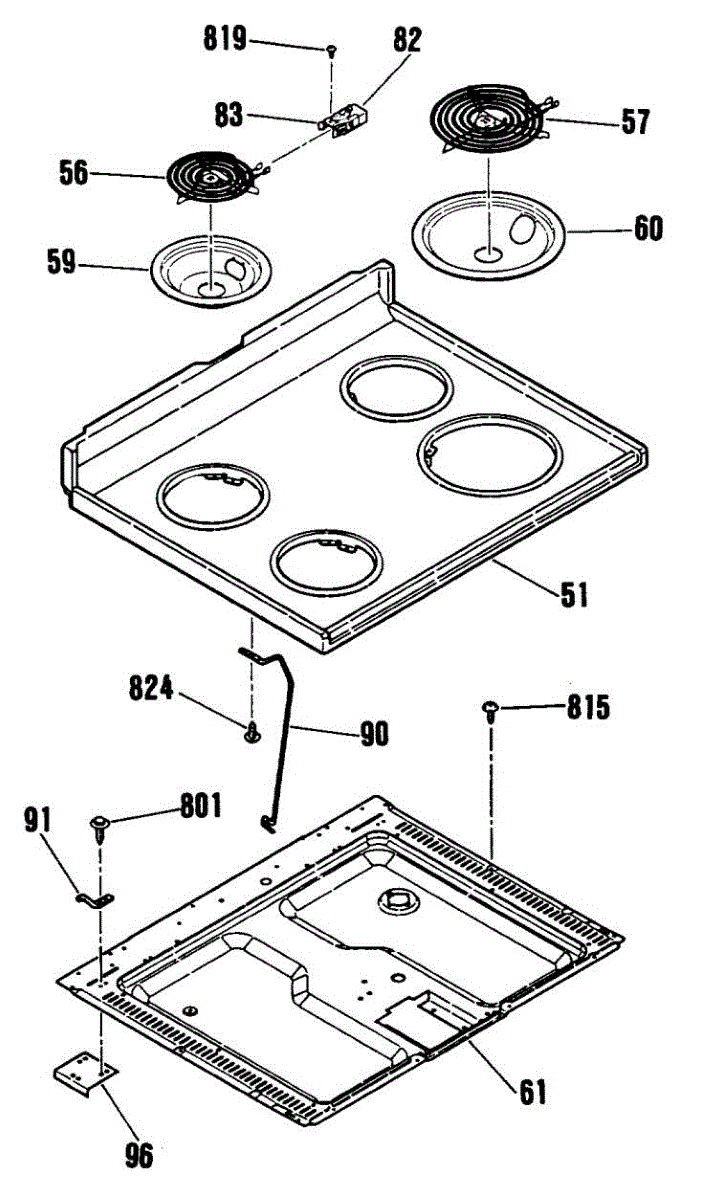

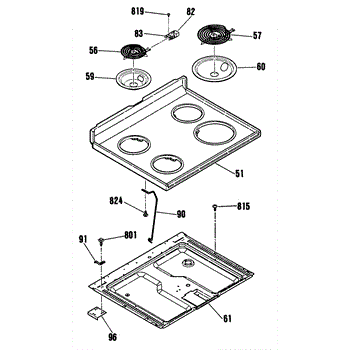

Parts for Ge RB754N4: 01 - Section1 Parts

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

ST10-16 X 7/16"

Nickel
