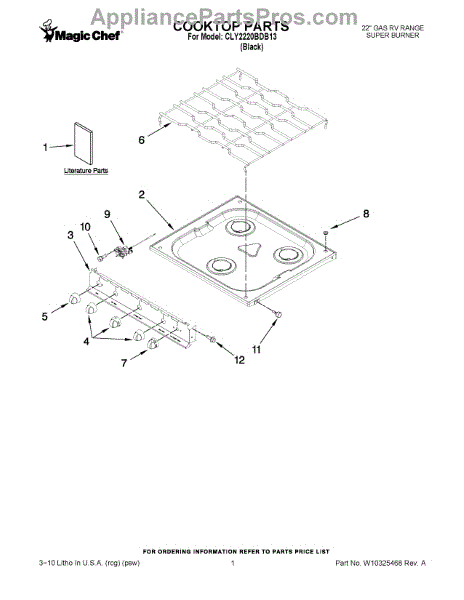

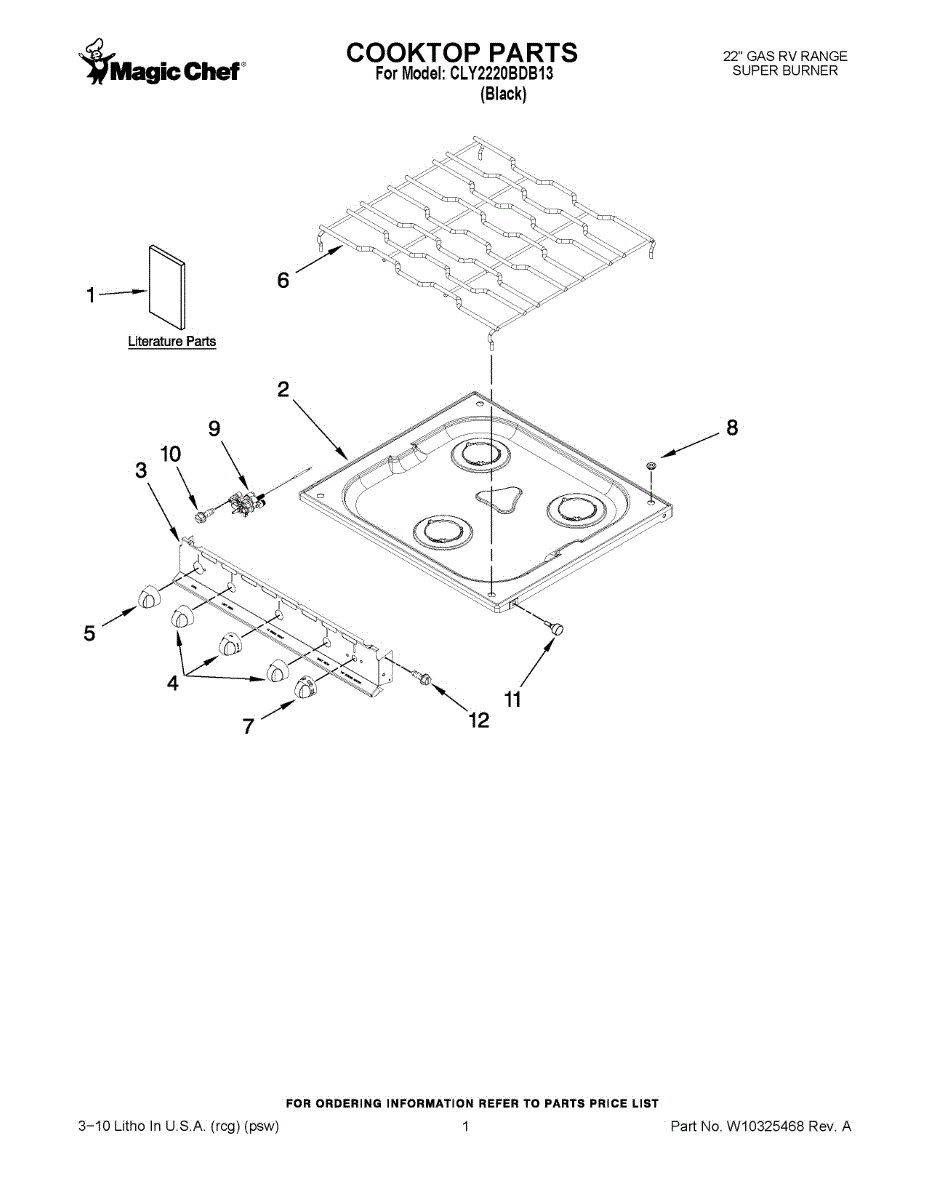

Parts for Maytag CLY2220BDB13: 01 - Cooktop Parts

Replace a worn, cracked, or missing surface burner knob to restore smooth, precise heat control on your cooktop. This direct-fit knob brings back easy ON/OFF operation and clear setting alignment for everyday cooking.

• Attaches to the surface burner valve stem to turn the burner on/off and adjust flame or heat level
• Common symptoms: knob cracked or stripped, spins freely or falls off, melted/discolored, or missing
• Restores proper pointer alignment and a clean, finished look
• Designed for the surface burner position; match style and shaft orientation to your original

• Allow the appliance to cool completely before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the stem orientation with the new knob and press straight on until fully seated
• Disconnect power or shut off gas before any work near controls

This thermostat knob is the control dial that lets you set temperature or cycle settings on compatible Whirlpool appliances. It restores a secure grip and clear position reference so you can select settings easily. What it does

• Replaces a missing, cracked, or stripped thermostat/control knob
• Provides a tactile grip and visible indicator for accurate temperature or cycle selection
• Helps resolve issues where the control is hard to turn or slips on the shaft
• Fits on the appliance's thermostat/control shaft to restore normal operation

• Disconnect power to the appliance before servicing to avoid electrical shock
• Pull the old knob straight off the control shaft; align the new knob's splines with the shaft and push on firmly
• If the knob is tight or stuck, use a non-marring pry tool and work gently to avoid damaging the control panel
• If the shaft or underlying control is damaged, replace the control assembly rather than forcing the knob

Color: black. Measures about 2 inches in diameter.

This silicone grommet fits into the burner grate to cushion and stabilize it on the cooktop. It helps prevent rocking and rattling while protecting the surface from metal-to-surface contact and scratches.

• Provides a cushioned interface between the grate and cooktop to reduce noise and wear
• Helps keep the grate level and securely positioned during use
• Minimizes vibration and metal-to-surface contact to protect the finish
• Worn or missing grommets can cause grate wobble, rattling, or scraping marks

• Turn off all burners and allow the cooktop to cool completely
• Remove the grate; pull out the old grommet and clean the recess
• Press the new grommet fully into the grate opening, aligning as shown in your model's diagram
• Reinstall the grate and verify it sits level and stable; replace multiple grommets if wear is uneven

This oven thermostat regulates your range's cooking temperature. It senses the oven cavity and switches the heat on and off to maintain your set point, helping restore accurate, consistent baking and roasting results.

• Regulates oven temperature by sensing heat and cycling the burner/element to hold the set point
• Symptoms of a failing thermostat include running too hot or too cool
• Food may bake unevenly, be undercooked/overcooked, or the oven may not reach the set temperature
• Preheat may take excessively long or temperature may swing widely
• Heat may not cycle off once the set temperature is reached

• Disconnect electrical power; for gas ranges also shut off the gas supply
• Allow the oven to cool completely before service and use proper PPE
• If your original uses a sensing bulb/capillary, route and secure it exactly as the original and avoid kinks or sharp bends
• After installation, verify temperature with an oven thermometer and perform user calibration only if your model supports it

This is a replacement thermostat mounting screw that secures the temperature control sensor for reliable positioning and consistent temperature sensing. A simple, low-cost fix when the existing screw is missing, stripped, or damaged. What it does:

• Secures the thermostat or temperature sensor to the appliance housing or bracket
• Keeps the thermostat sensor in correct contact/position for accurate temperature readings
• Prevents the sensor from shifting, which can cause temperature fluctuations or inconsistent operation
• Replaces stripped, corroded, or missing mounting hardware

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Use the correct screwdriver and match thread engagement; do not force or cross-thread the screw
• Tighten snugly but avoid overtightening to prevent damage to the thermostat or housing
• After installation, restore power and verify proper temperature control and operation
