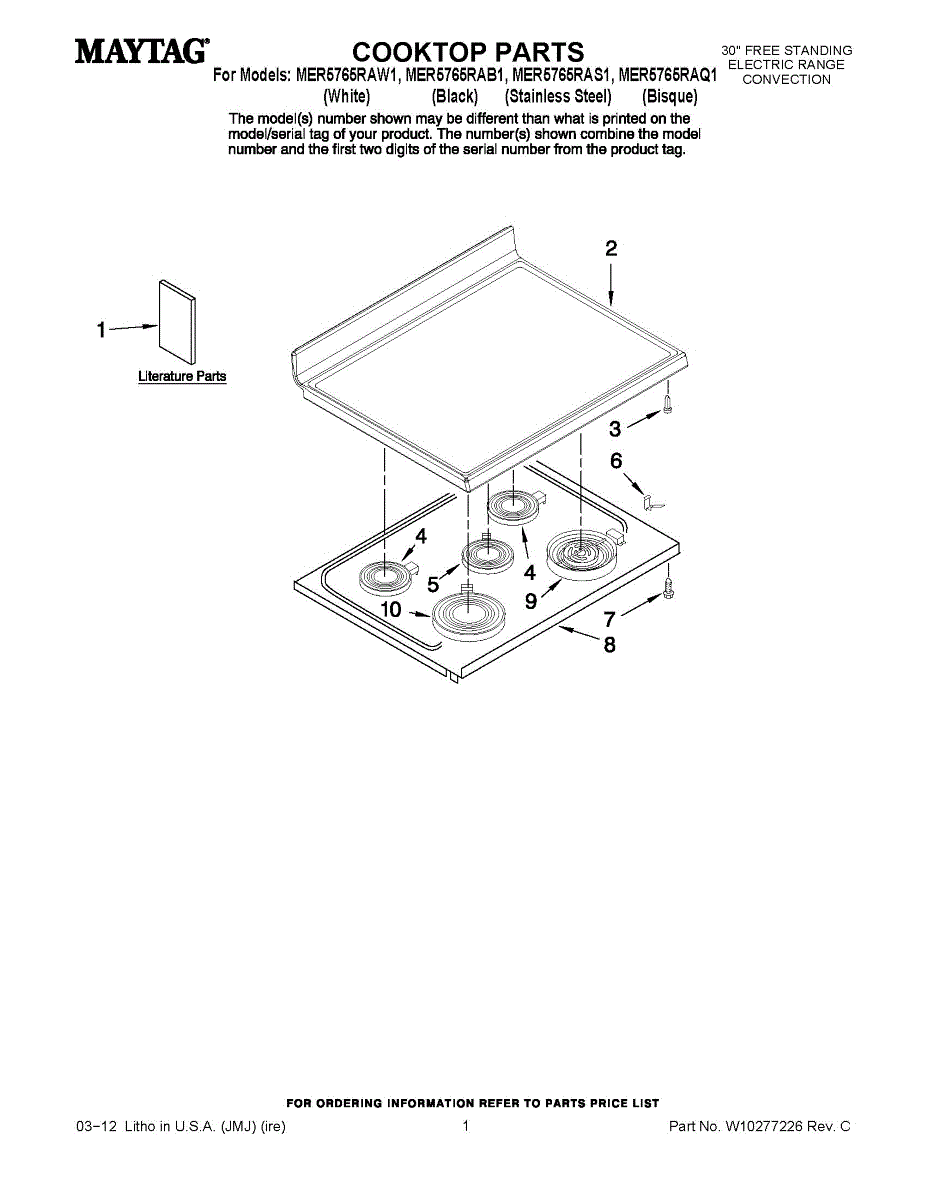

Parts for Maytag MER5765RAQ1: 01 - Cooktop Parts

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This surface heating element replaces a failed warm zone on an electric cooktop or range, restoring the low-temperature heating area used for keeping food warm. Designed to match OEM fit and function for compatible units. What it does:

• Provides the low-temperature "warm zone" heating needed to keep plates and dishes warm
• Heats at lower temperatures than main burners for gentle warming
• Commonly used when the warm area does not heat or maintain temperature
• Helps correct symptoms like a cold or intermittently heating warm zone, or uneven warming

• Disconnect power to the appliance before starting any repair
• Allow the cooktop to be completely cool and handle glass or ceramic surfaces carefully
• Follow your appliance's service manual for safe removal and installation; use basic hand tools
• Do not install if the cooktop glass is cracked or damaged—replace the glass top first

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

Size: 8-18 x 1/2 inch.

This surface heating element restores dependable heat on your electric range or cooktop. Replace a failed top burner to regain consistent boiling and simmering performance when one position stops heating, heats unevenly, or cycles unpredictably.

• Converts electrical power into heat for cookware on the cooktop
• Replaces a burned-out/open surface burner to restore normal operation
• Helps fix: no heat, intermittent heat, or uneven heating at a burner position
• Matches the original footprint and connections for proper fit and function

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; wear appropriate hand and eye protection
• Access the element per your service manual; note wire locations and transfer any mounting clips/brackets from the old part if present
• Seat terminals fully and secure the element before reassembly; test on low and high settings

The Surface Element is an OEM replacement part for Whirlpool ranges. It is responsible for generating heat on the cooktop, allowing for efficient and even cooking. This component is designed to provide adjustable heat levels to accommodate various cooking needs, from simmering to boiling.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat up
• Visible damage or wear, such as burns or warping
• Electrical issues, like sparking or short-circuiting

Causes for a malfunctioning Surface Element can be attributed to electrical failures, prolonged use at high temperatures, or physical damage due to spills and overflows.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
