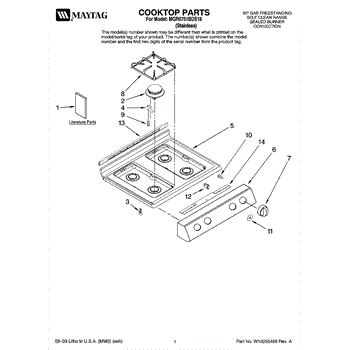

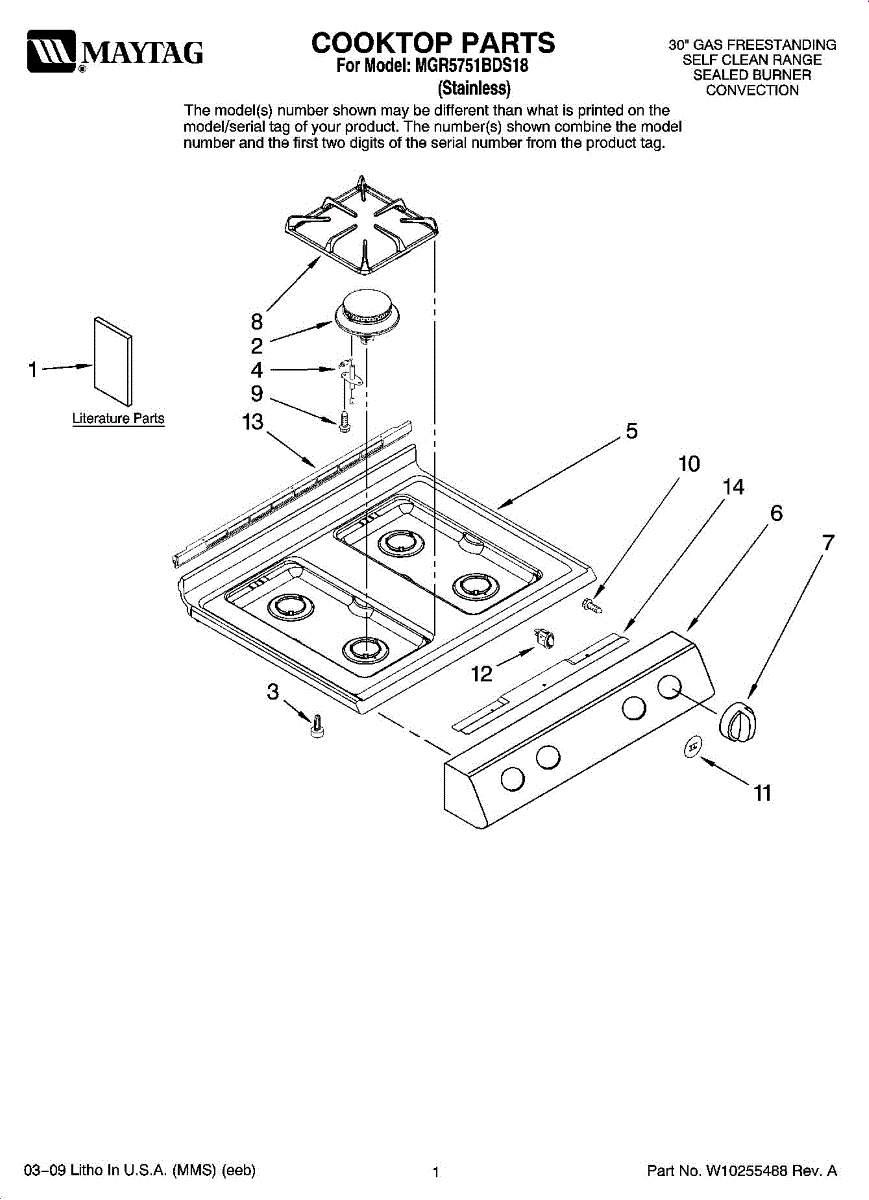

Parts for Maytag MGR5751BDS18: 01 - Cooktop Parts

Replacement burner seal assembly that creates a sealed barrier between a sealed gas cooktop burner and the cooktop surface, helping keep spills and debris out of the burner area and restoring stable burner seating. What it does:

• Forms a gasketed seal around the burner to limit spills, crumbs, and moisture from entering the burner box.
• Helps maintain proper burner seating for consistent flame shape and heat distribution.
• Replace if the seal is torn, flattened, warped, or shows heavy discoloration from spills or heat.
• Can reduce burner ignition or flame irregularities caused by debris or a damaged seal.

• Disconnect power and shut off gas supply before servicing; allow the cooktop to fully cool.
• Remove burner cap and head per your model's service instructions before replacing the seal.
• Clean the surrounding area of grease and debris, then press the new seal into place so it seats evenly.

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This sealed burner igniter is the spark electrode for a gas cooktop burner. It creates the ignition spark at the burner head so your surface burner lights reliably when you turn the control knob.

• Produces the high-voltage spark that ignites gas at a sealed surface burner
• Helps resolve a single burner that won't light or lights intermittently
• Common signs: no visible spark at that burner, continuous clicking without ignition, or a cracked/chipped ceramic insulator
• A shorted or misaligned electrode can cause the spark to jump to ground instead of the burner

• Disconnect power and shut off gas supply before servicing
• Remove the burner cap and head; lift the cooktop if needed to access the electrode
• Handle the ceramic insulator carefully; disconnect/reconnect the wire lead and reuse mounting hardware
• Align the tip toward the burner port and secure; verify a strong, consistent spark before reassembly

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace a damaged or unsteady cooking surface with this burner grate. It supports pots and pans at the proper height above the burner, restoring stable, level support on your gas cooktop or range when the original grate is worn or broken.

• Provides sturdy support for cookware over the surface burner
• Maintains the correct clearance between burner and pan for consistent heating
• Replaces grates that are cracked, bent/warped, or have worn feet causing wobble
• Helps prevent rocking or instability of pots and pans during cooking

• Allow the cooktop/range and grate to cool completely before handling
• Lift off the old grate; clean the surface; align and place the new grate over the correct burner
• Ensure the grate sits flat and stable—do not force into place
• Refer to your owner's manual for care and cleaning recommendations

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This rocker switch is a direct-replacement control button that restores reliable on/off input for the appliance. It replaces a worn or broken front-panel switch so controls respond correctly during normal use. What it does:

• Replaces a failed rocker/control switch used to send on/off or selection signals to the appliance's control circuitry
• Restores consistent electrical contact when the original switch is cracked, stuck, or intermittently working
• Commonly used when push/panel buttons no longer activate functions or display response is erratic
• Simple, single-function mechanical switch — no programming or calibration required

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• Access may require removal of the control panel; keep screws and fasteners organized for reassembly
• Verify switch orientation and wiring before final reassembly; match connectors to original terminals
