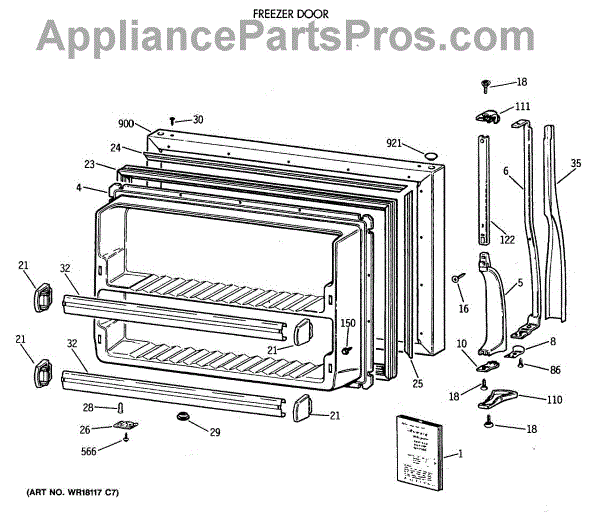

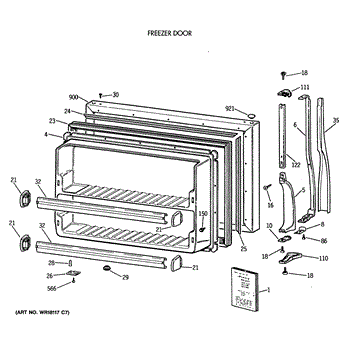

Parts for Ge MTX24GIXBRAA: 01 - Freezer Door Parts

This is the "Attention installer" warning label used to remind homeowners about important installation steps and safety checks before operating the appliance. It helps reduce installation errors and promotes safe, compliant setup. What it does:

• Identifies critical installation or safety instructions that must be followed
• Alerts installers to components, connections, or procedures that need attention
• Helps prevent improper setup that can lead to performance issues or safety risks
• Serves as a visible reminder to confirm final checks before using the appliance

• Clean and dry the application surface before attaching for best adhesion
• Peel and press the label firmly to remove air bubbles; avoid stretching the decal
• Place where it is clearly visible during installation but will not interfere with operation
• Remove old adhesive residue before applying the new label

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

Refrigerator and freezer door bar end cap. Used on both the right and left hand side. Color: white. Measures about 2-1/2 inches high by 3 inches deep.

Per Factory 29" Long Bar Cut To Fit.

Size: 8-32 TT FL 1/2 S.

The Ice Bucket is an OEM replacement part for GE refrigerator-freezers. It collects and stores freshly produced ice within the freezer compartment.  This bucket is made of white plastic and is approximately 13 inches in length and 9 inches wide at the widest point.

Causes of a bad ice bucket can include wear and tear over time, or damage to the bucket or its components due to mishandling or impact. Please note, this is just the ice bucket and does not include the auger or auger motor.

Symptoms of a bad ice bucket include:

• Cracks or breakage in the bucket
• Ice not dispensing properly
• Bucket not fitting securely in its compartment
• Visible damage or wear to the bucket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

2 wire insulator.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

Size: 8-32 t. Includes 12 screws.

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks
