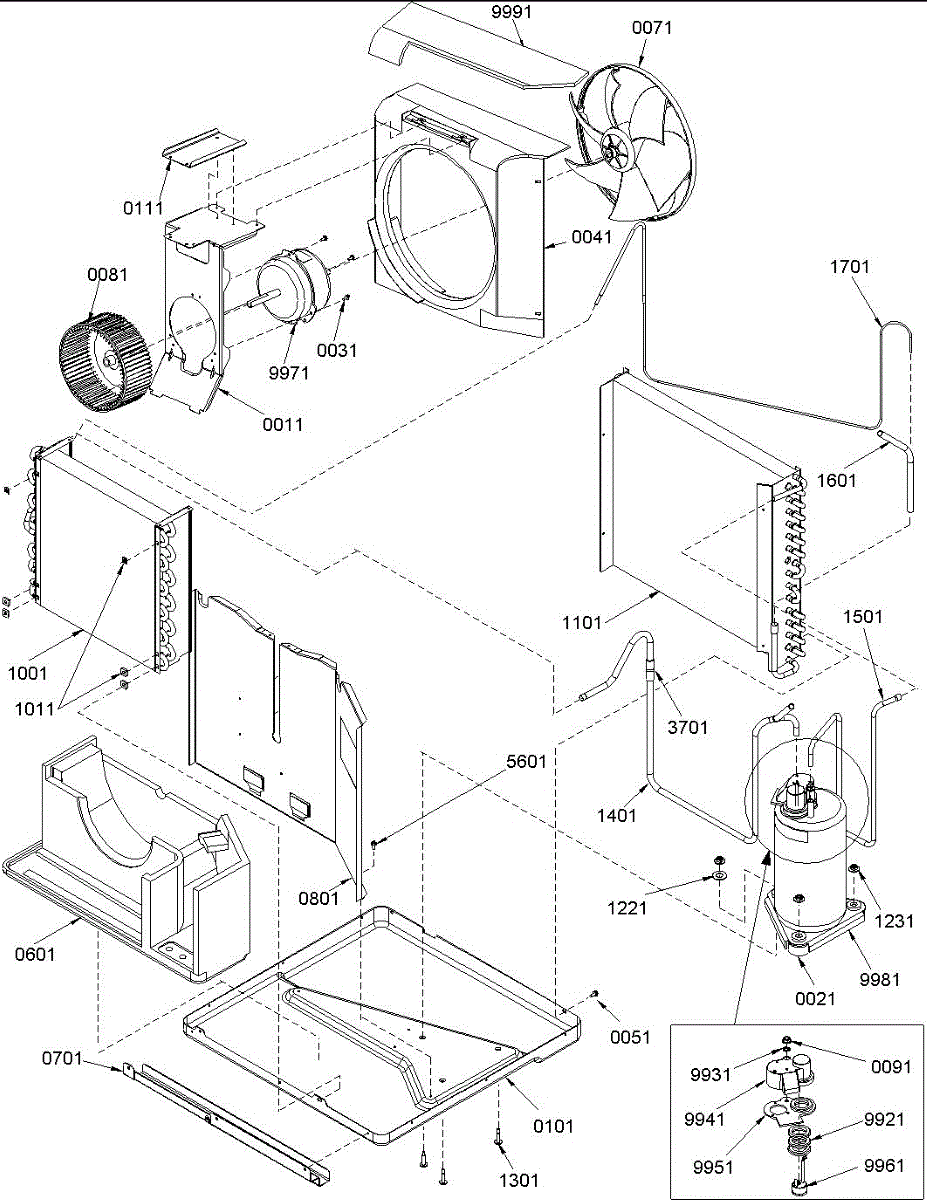

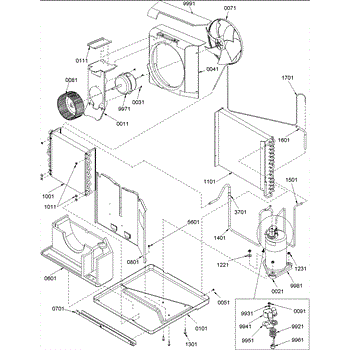

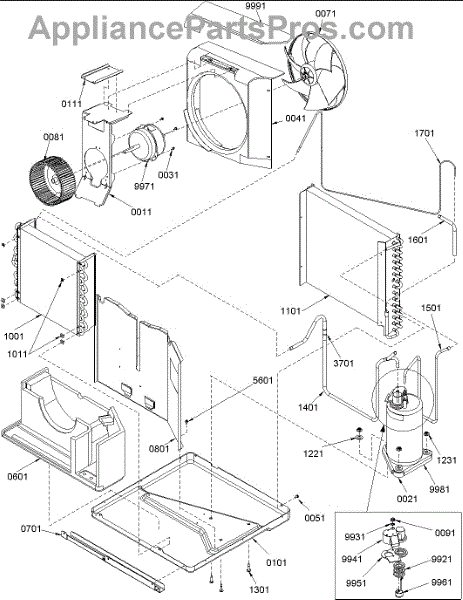

Parts for Amana 5M11TA / P1214601R: 02 - Chassis Assembly Parts

This rubber grommet protects and cushions wiring or components where they pass through a cabinet opening, helping prevent abrasion and reducing vibration noise. It restores a clean seal and keeps harnesses routed safely. What it does:

• Cushions and protects wires or hoses from sharp cabinet edges to prevent chafing
• Dampens vibration and movement where components pass through openings
• Helps maintain a simple seal around a harness or conduit to reduce drafts
• Keeps routing tidy to avoid contact with moving parts or hot surfaces

• Disconnect power to the appliance before beginning any repair
• Lubricate lightly with soapy water for easier installation; avoid petroleum-based solvents that can degrade rubber
• Use care with tools—work from both sides of the panel if accessible to avoid tearing the grommet

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This overload is a compressor protector that helps prevent compressor overheating and current overloads, allowing the compressor to start safely and run reliably. It replaces a worn or failed protector to restore normal compressor start behavior. What it does:

• Senses excessive current/temperature at the compressor and interrupts power to prevent damage
• Helps stop compressor from continuously running while stalled or overloaded
• Commonly used when the compressor hums but won't start, or when the fridge cycles erratically
• Works with the compressor's start device to enable proper motor start-up

• Disconnect power to the appliance before accessing the compressor or electrical components
• Typically mounted on the compressor body; remove the old unit and install the replacement in the same orientation
• Inspect the start relay and wiring while servicing; replace any damaged connectors or components
