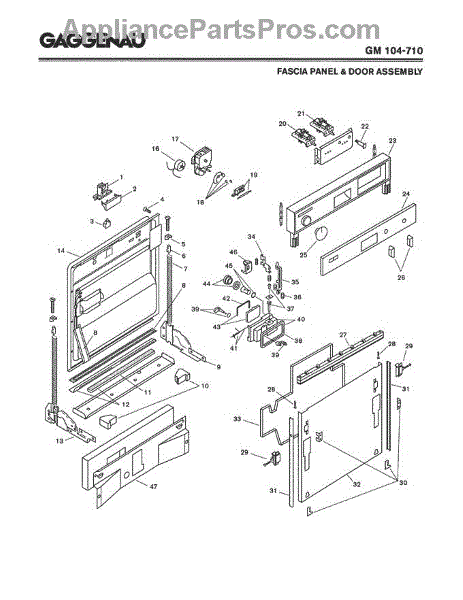

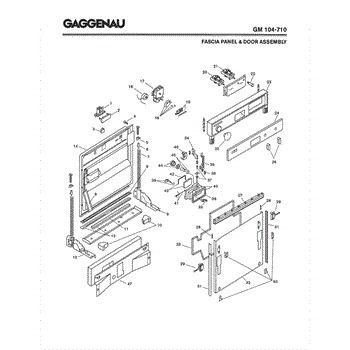

Parts for Gaggenau GM104-710: 02 - Fascia Panel & Door Assembly Parts

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This is the right side door hinge. For left side use 00086389.

This foam door seal cushions the appliance door and helps form a snug internal fit to reduce vibration and rattling. It's a simple replaceable gasket used where foam padding is required inside the door assembly. What it does

• Provides cushioning between door panels to reduce noise and vibration
• Helps maintain proper door alignment and fit during use
• Prevents metal-to-metal contact inside the door cavity
• Commonly replaced when foam is flattened, torn, or missing

• One foam door seal as pictured

• Install only with power disconnected and door supported to avoid injury
• Fitment typically requires removing the inner door panel or trim—handle panels and fasteners carefully
• Use appropriate tools and follow OEM disassembly steps to avoid damaging clips or finish

This is the left side door hinge. For right side use 00086391.

Color: Stainless steel.

This replacement wire harness connects key oven components and restores reliable electrical routing so controls, ignitors and sensors can communicate and receive power. Designed to match OEM connector locations and wiring paths. What it does:

• Routes power and signal connections between control boards, sensors and ignition components
• Replaces damaged or frayed wiring that can cause intermittent operation or loss of power to circuits
• Restores secure connector fit to stop loose connections, arcing, or error codes related to wiring
• Used when wiring is visibly burned, broken, or connectors are corroded and won't seat properly

• Disconnect all power (unplug appliance or switch off breaker) before beginning work
• Take photos of the original harness routing and connector orientations to ensure correct reinstallation
• Handle connectors carefully; do not force—use proper tools to release locking tabs

This timer motor drives the mechanical timer assembly so the appliance can advance through its programmed cycles reliably. It replaces a worn or failed motor to restore timed cycle rotation and sequencing. What it does:

• Rotates the timer/timer cam to advance the appliance through cycle steps
• Provides steady, low-speed synchronous drive for the timer mechanism
• Common symptom: timer will not advance or stops mid-cycle
• Common symptom: no motor hum or visible timer shaft movement

• One timer motor

• Disconnect power to the appliance before starting any work
• Access typically requires removing the control panel or console; keep fasteners organized
• Handle the timer shaft and any attached gears carefully to avoid misalignment
• Test motor operation before fully reassembling the control panel

This dosing device is the dishwasher detergent metering unit that controls and releases the correct amount of detergent during the wash cycle, helping restore normal detergent dispensing and wash performance. What it does:

• Meters and releases detergent at the programmed point in the wash cycle to ensure proper cleaning.
• Replaces a failed or blocked dosing unit that won't dispense detergent or dispenses inconsistently.
• Helps address common symptoms like detergent not being released, incomplete wash results, or dispenser-related error indicators.
• Interfaces with the dispenser assembly and wash program signals to time detergent release.

• One dosing device

• Disconnect power (and water, if applicable) before starting any repair.
• Handle the unit and any electrical connectors carefully to avoid damage.
• Test the appliance through a full cycle after installation to ensure proper dispensing and leak-free operation.
