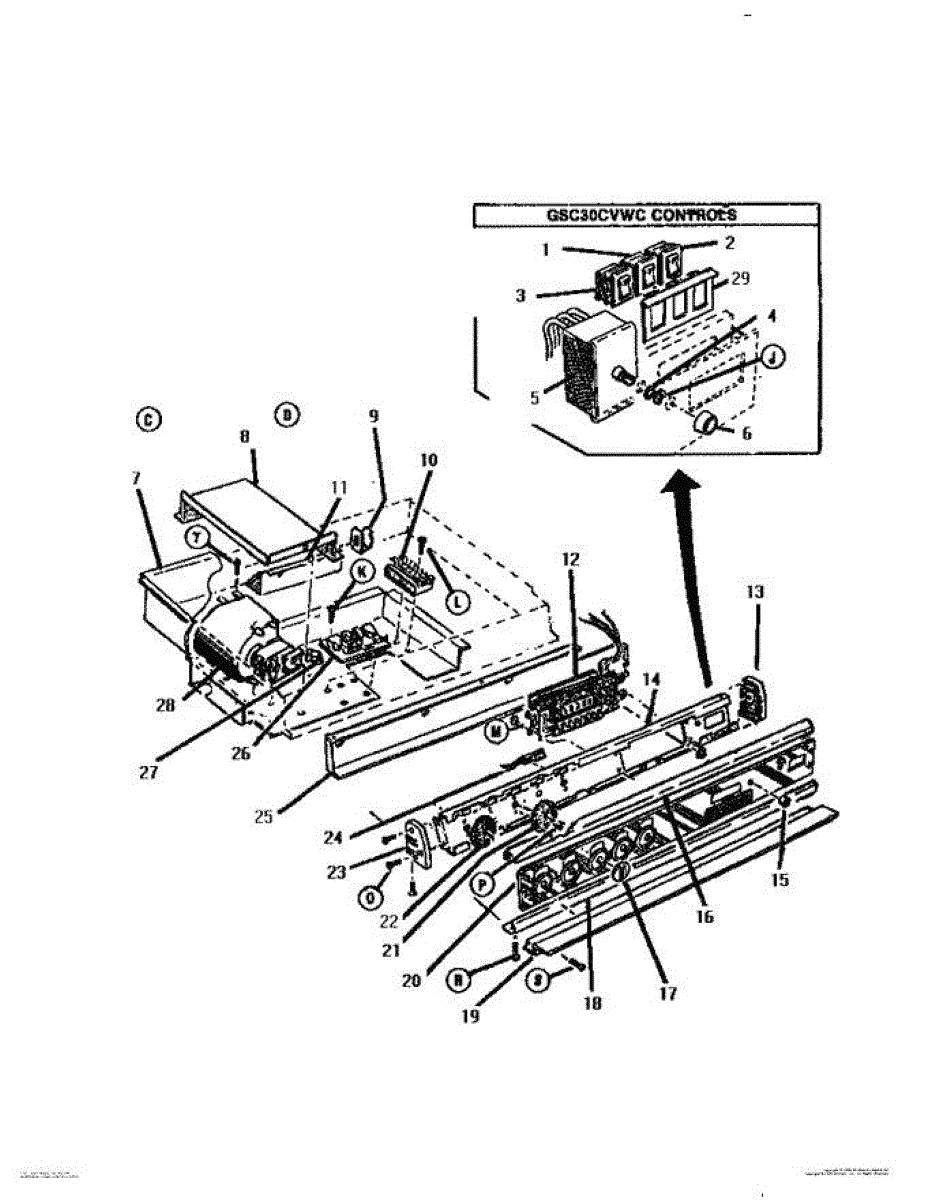

Parts for Thermador GSC30CVWC: 03 - Burner Box & Control Panel Parts

This switch mounting panel is the internal trim that secures and positions the control switches on a 30" range, keeping the controls aligned and stable for reliable operation. Replaces a cracked, loose, or damaged mounting panel. What it does

• Holds and aligns control switches so buttons and knobs operate smoothly
• Maintains correct spacing for switch actuators to prevent intermittent contact
• Restores a secure mounting point if the original panel is cracked, warped, or broken
• Can reduce switch wobble and prevent accidental switch misalignment or failure

• One switch mounting panel

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Remove the cooktop or control console per your model's service instructions to access the panel
• Keep fasteners and any trim pieces organized for reassembly; do not force switches into place

This white clock knob replaces a damaged or worn timer/control knob, restoring tactile control and clear position indexing for oven/timer dials. It matches the original fit and appearance for straightforward replacement. What it does:

• Provides a solid grip to turn the oven/timer control or clock mechanism
• Restores accurate knob indexing and detent feedback for proper settings
• Stops slipping or spinning caused by cracked or stripped knobs
• Helps avoid further wear on the shaft by replacing a degraded knob

• Pull off the old knob straight from the control shaft; press the new knob fully onto the shaft until seated
• Disconnect power or follow appliance safety instructions when accessing internal controls

This part has been discontinued by the manufacturer and is no longer available.

This P13 harness is a factory-style wire connector harness that delivers power and signal connections between components for proper appliance operation. It replaces a damaged or worn harness to restore reliable electrical connections. What it does:

• Connects control signals and power between the control board and downstream components
• Restores proper electrical continuity when original wiring is frayed, burned, or broken
• Can stop intermittent operation or faults caused by loose or corroded connectors
• Helps eliminate error codes or component failures tied to a bad harness

• Disconnect the appliance from power before servicing to avoid shock or damage
• Compare the replacement harness to the original to ensure matching connector types and pin orientation
• Carefully seat connectors until they click; avoid pulling on wires when disconnecting

This wiring harness connects the cooktop element to the range control, allowing the control board to power and regulate the heating element. Replacing a damaged harness restores proper electrical connection and element response. What it does

• Transfers power and control signals between the control board and a surface element
• Restores consistent element heating when a broken or burned wire prevents operation
• Prevents intermittent element response caused by loose or corroded terminals
• Helps eliminate visible arcing or heat damage at the connector end when worn

• One element control harness as pictured

• Disconnect all power to the appliance before starting repair to avoid shock
• Access may require removing the cooktop or control console; refer to your model's service instructions
• Inspect mating connectors and element terminals for damage; replace if corroded or melted
• Secure harness routing to avoid contact with hot surfaces and moving parts

This wiring harness connects the cooktop control module to the cooktop's electrical components, restoring reliable signal and power routing so burners and controls operate correctly. What it does

• Transfers power and control signals between the cooktop control/ignition module and cooktop components
• Commonly replaces damaged or burnt wiring that causes burners or controls to fail
• Can resolve intermittent power issues, non-responsive controls, or ignition failures linked to wiring
• Matches factory connector types and routing for correct fit and function

• One cooktop wiring harness (ESC30)

• Disconnect all power to the appliance before starting any repair
• Match connector shapes and wire colors to the original harness; do not force connections
• Route and secure the harness to prevent pinching or contact with hot surfaces
