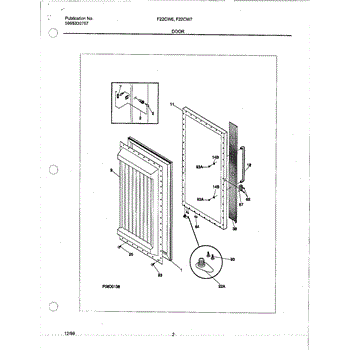

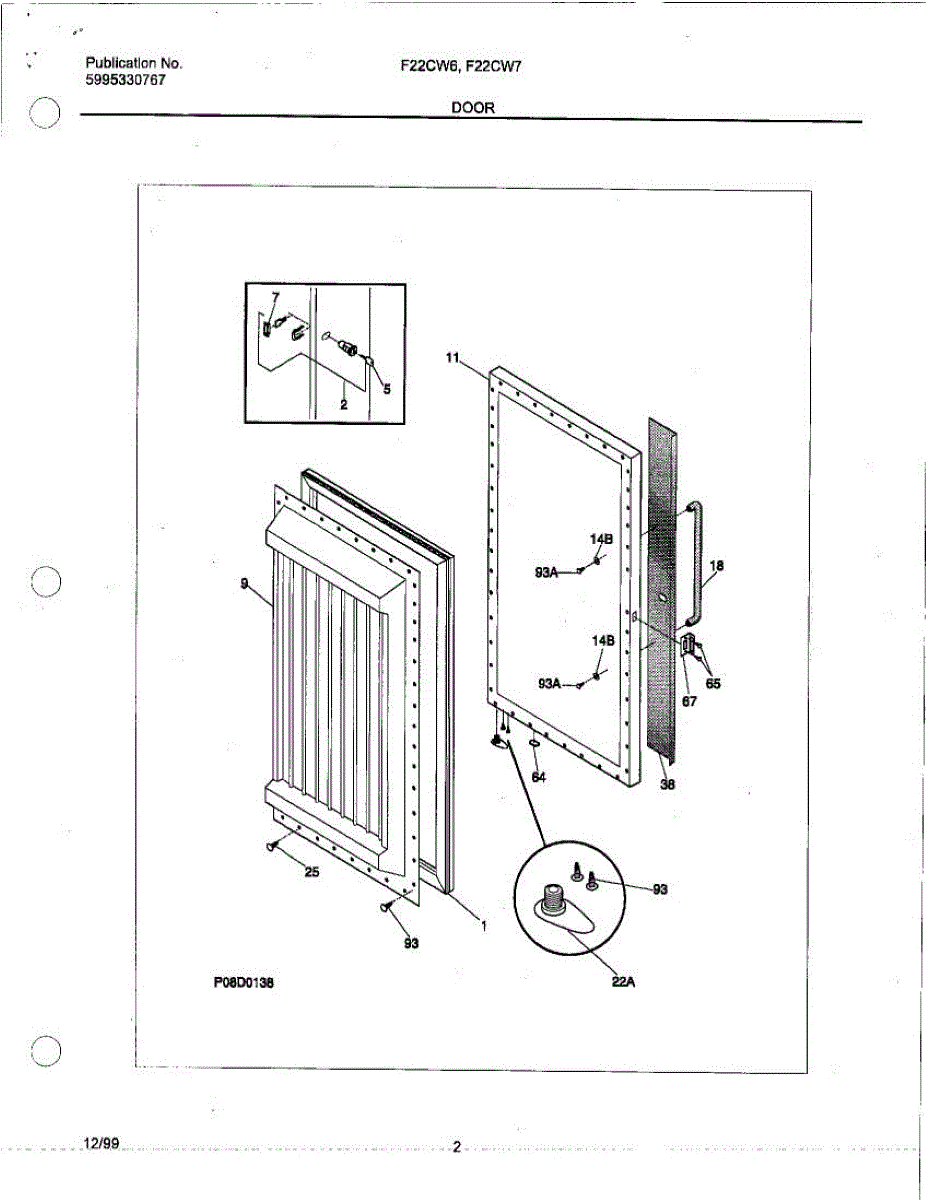

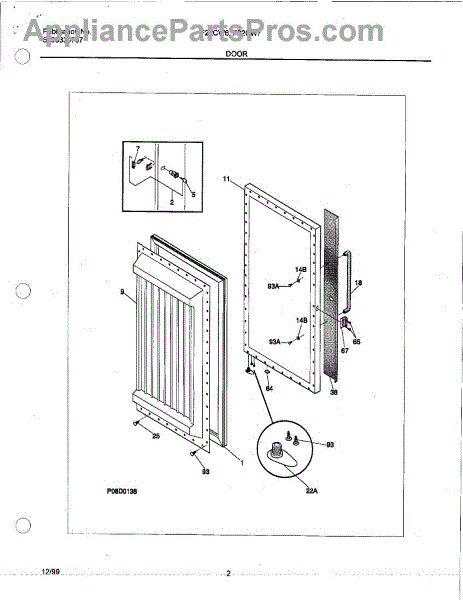

Parts for Frigidaire F22CW7: 03 - Door Parts

This gray door gasket restores a tight seal around the freezer door opening so cold air stays in and warm, humid air stays out—helping maintain proper temperature and reduce frost buildup when the original seal is worn or damaged. What it does:

• Seals the perimeter of the freezer door to prevent air leaks
• Helps minimize frost/ice accumulation and moisture around the door
• Supports consistent interior temperatures and performance
• Common signs of failure: tears, warping, gaps, frost buildup, sweating/condensation, and poor door sealing

• 1 gray door gasket

• Unplug the appliance before servicing
• Warm the new gasket (soak in warm water or gently heat) to relax folds for easier installation
• Install starting at the corners; ensure the gasket fully seats in the retainer all the way around
• After installation, check seal tension around the door; use low heat to help the gasket conform if needed

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

This motor kit drives the microwave's glass turntable to rotate food for even heating. Replacing a worn motor restores smooth, consistent turntable motion and helps prevent cold spots during cooking or reheating.

• Powers the turntable tray via the coupler to rotate food evenly
• Common failure signs: turntable not turning, intermittent or noisy rotation, or jerky movement
• Helps resolve uneven heating caused by a stalled or slipping turntable

• Unplug the microwave before service; high-voltage components can retain a charge
• Access is typically from the bottom; remove the turntable tray and coupler before disassembly
• Note wire orientation and shaft alignment; transfer any brackets as required
• Test rotation before reassembling the exterior panels

This door-activated light switch controls the interior lamp in your refrigerator or freezer. Replace it to restore dependable on/off lighting when the door opens and closes and prevent a light that stays on and warms the compartment.

• Activates the interior light when the door opens and switches it off when closed
• Helps resolve no interior light, light staying on, or a broken/stuck switch plunger
• Restores reliable visibility inside the compartment
• Direct replacement for the original switch connection

• Disconnect power before servicing
• Release the switch from the liner and gently pull it out
• Transfer wires to the new switch one at a time to maintain correct connections
• Seat the switch flush; restore power and verify the light turns off when the door closes

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement control knob restores simple, reliable operation for an appliance control so you can adjust heat, power or function settings with a secure grip. It replaces a cracked, loose or missing knob to make controls usable again. What it does

• Provides a secure grip to turn and set appliance controls.
• Replaces knobs that are cracked, worn, loose or missing.
• Restores basic user control over temperature, power or function settings.
• Helps prevent accidental slips when adjusting controls.

• Always disconnect power to the appliance before servicing electrical components.
• Remove the old knob by pulling it straight off the control shaft; align the new knob and push on until fully seated.
• Do not force the knob onto the shaft—if it won't seat easily, verify shaft type and orientation.

This temperature control thermostat senses cabinet temperature and cycles the cooling system to match your set point. Replace it to restore consistent, adjustable cooling when the original control is worn or unresponsive.

• Senses cabinet temperature and opens/closes internal contacts to regulate cooling
• Cycles the compressor to maintain the selected coldness
• Common symptoms of failure: too warm or too cold, runs continuously or won't start
• Temperature knob has little/no effect or causes erratic temperature swings

• Disconnect power to the appliance before servicing
• Photograph/label wiring; transfer leads one at a time to matching terminals
• Reinstall and secure the sensor/control in its original location; avoid sharp bends or damage
• Set to mid-range and allow up to 24 hours for temperatures to stabilize after replacement

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation
