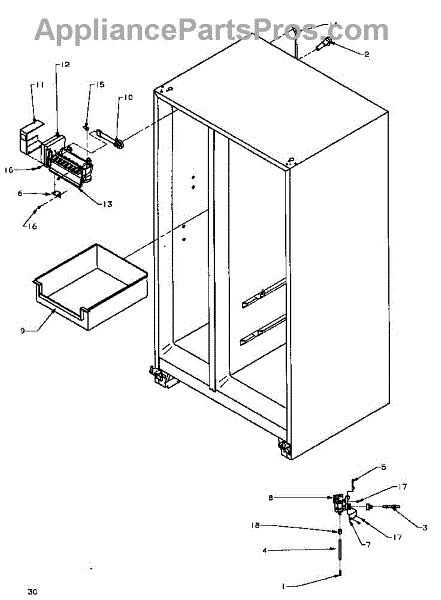

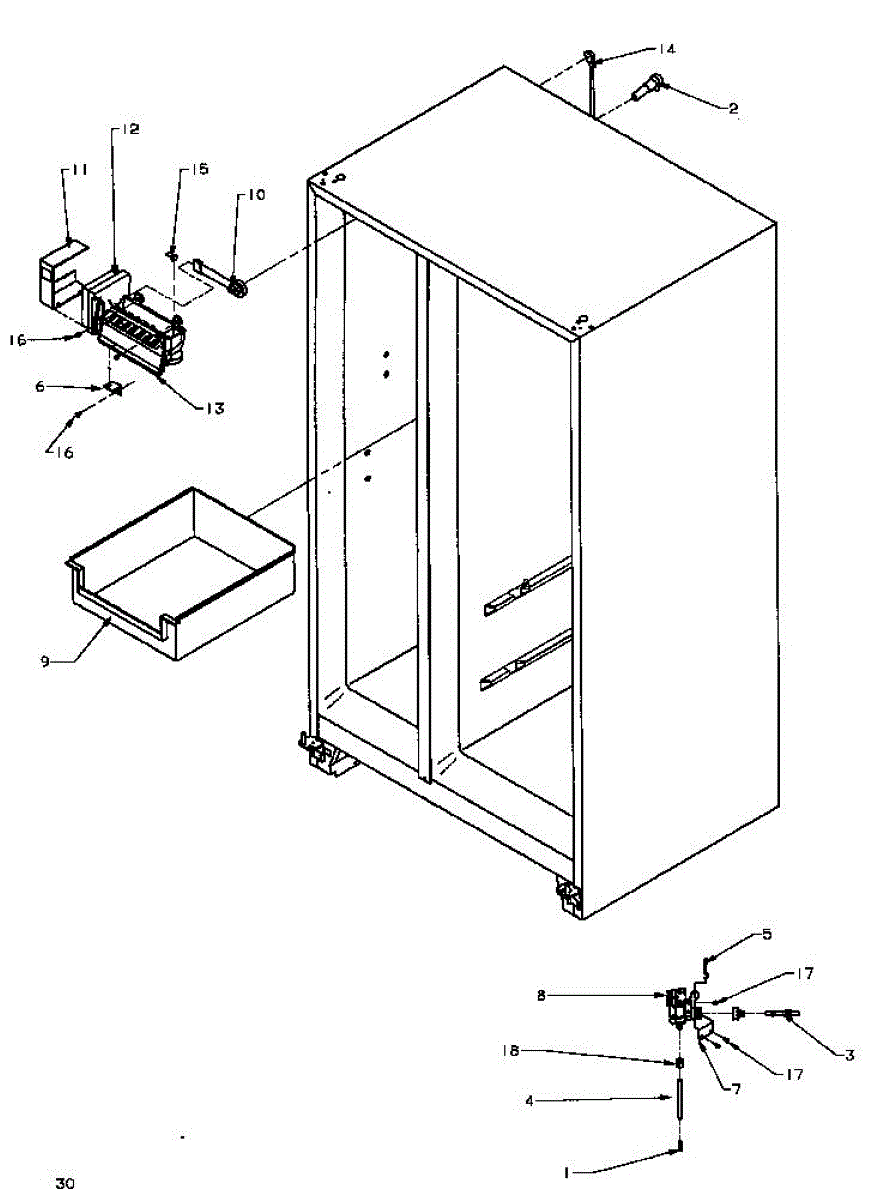

Parts for Amana SBI20QE / P1162905W E: 03 - Factory Installed Ice Maker Parts

This part has been discontinued and is no longer available.

Ice maker water line: 1/4x 8ft.

The Single Water Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water to the refrigerator’s ice maker and water dispenser, ensuring a consistent and reliable supply of water for ice production and dispensing.

Causes of a bad single water valve can include wear and tear over time, mineral buildup from hard water, or electrical malfunctions.

Symptoms of a bad single water valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Unusual noises when the water dispenser is activated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Use d7806208

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

Size: 1/4 inch. Nut for plastic water line.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks
