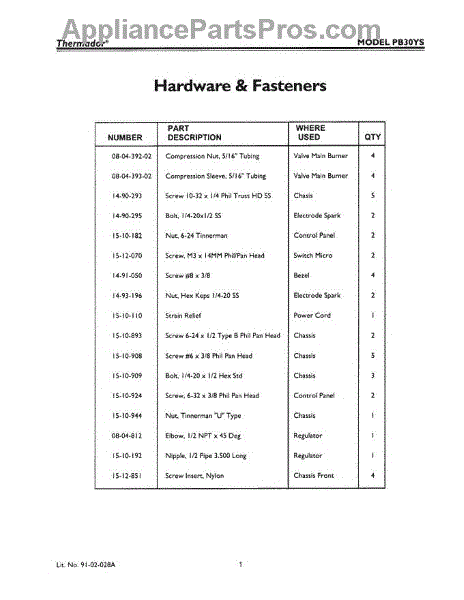

Parts for Thermador PB30YS: 03 - Hardware & Fasteners Parts

This Tinnerman C nut is a spring-steel speed clip that secures sheet-metal panels and components using a mating screw. It provides a captive thread where a tapped hole or weld nut isn't practical, helping restore proper fit and stop rattles. What it does:

• Provides a captive, reusable threaded anchor for self-tapping or machine screws
• Secures trim, access panels and internal brackets to sheet-metal edges or panels
• Stops panel movement and vibration-related noise when the original clip is damaged or missing
• Works where a conventional nut or stud cannot be used due to limited access

• Disconnect power and unplug the appliance before accessing panels or fasteners
• Position the clip over the panel edge or hole, then press or slide until it snaps into place
• Align the mating screw and thread carefully to avoid cross-threading the clip
• Use hand tools or pliers for placement; do not over-torque the screw once installed

This is a compression nut for 5/16-inch tubing. It secures the tubing to a compatible compression fitting to create and maintain a tight, reliable connection.

• Clamps 5/16-inch tubing onto a matching compression fitting when tightened
• Helps restore a secure seal at a leaking or loose compression joint
• Useful when threads are stripped, the original nut is cracked, or the connection won't hold tension
• Common signs include drips at the fitting, inability to tighten, or visible thread damage

• Shut off the supply and allow the system to depressurize before service
• Use appropriately sized wrenches; avoid overtightening to prevent damage
• Inspect the ferrule/olive and tubing end; replace if worn or distorted
• After installation, restore supply and check for leaks at the connection

Replacement 1/4-20 x 1/2 stainless steel bolt that secures appliance components and restores proper fit. Use when mounting hardware is missing, corroded, or loose to stop rattling and maintain alignment. What it does:

• Fastens panels, brackets and other appliance components to prevent movement and vibration
• Replaces missing, stripped, or corroded bolts that can cause loose parts or noise
• 1/4-20 thread with 1/2" length for applications requiring that fit (per part listing)
• Stainless steel construction helps resist corrosion in humid or wet areas

• Disconnect power and water (if applicable) and remove outer panels before servicing for safety
• Start threads by hand to avoid cross-threading, then tighten with the proper wrench or socket
• Do not overtighten; snug until secure and follow manufacturer torque specs if available

A hex keps nut (1/4-20) — a hex nut with an integrated locking washer — provides a secure, vibration-resistant fastening for appliance assemblies; stainless steel construction helps resist corrosion in wet or humid areas. What it does:

• Provides a locking nut solution for 1/4-20 bolts and studs; replaces stripped or damaged nuts to restore a secure connection.
• Integrated keps (locking) washer helps prevent loosening from vibration — useful when panels, brackets, or components wobble or rattle.
• Stainless steel material resists rust and corrosion in damp or high-humidity locations.
• Ideal for replacing missing or corroded hardware during repairs or reassembly.

• Use the correct size socket or wrench; tighten to the appliance manufacturer's specified torque where available and avoid overtightening.
• Disconnect power and shut off water supply when working near electrical or plumbing components.
• Inspect mating threads and replace damaged studs or bolts before installing this nut to ensure a proper, long-lasting fit.

This compression sleeve forms the sealing ring for a 5/16-inch tubing compression joint, restoring a watertight connection when used with a matching compression nut and fitting. Ideal for stopping leaks and restoring reliable water lines. What it does:

• Creates the compression seal on 5/16" tubing when installed with a compatible compression nut and fitting.
• Stops leaks or drips at compression-style water connections.
• Used on appliance water lines (ice makers, water inlets) and other 5/16" tubing joints.
• Replaces worn or damaged sleeves that fail to hold a tight seal.

• Shut off the water supply and relieve pressure before working on water lines.
• Inspect and cut tubing squarely; slide the sleeve onto the tube before threading the compression nut and fitting.
• Tighten the compression nut per the fitting manufacturer's instructions and check the joint for leaks.
• Replace the sleeve if damaged or deformed.
