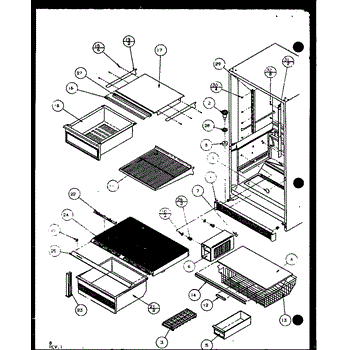

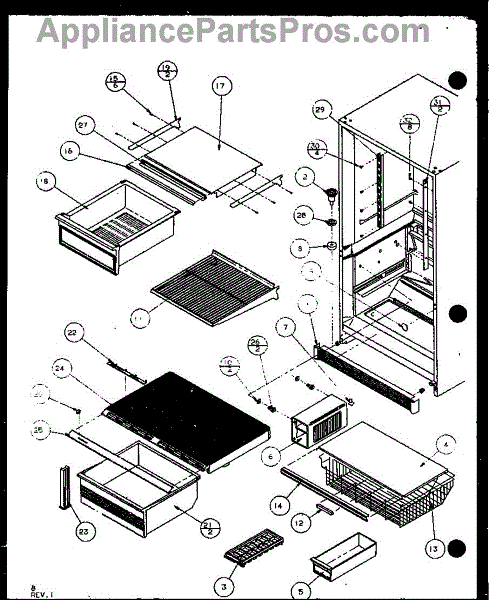

Parts for Amana BR20QBL / P1125501W L: 03 - Page 3 Parts

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run

A white plastic button plug that replaces a missing or damaged control-panel button cover. Restores the panel's appearance and helps keep the control area cleaner for reliable button use. What it does:

• Replaces a cracked, broken, or missing control-panel button plug
• Covers unused or damaged button openings to improve appearance
• Helps reduce dirt and moisture entry around the button area
• Snap-in design restores a flush, finished look to the control panel

• Typically snaps into the control panel—press evenly until fully seated
• No specialized tools required in most installations
• Disconnect power to the appliance before servicing

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)
