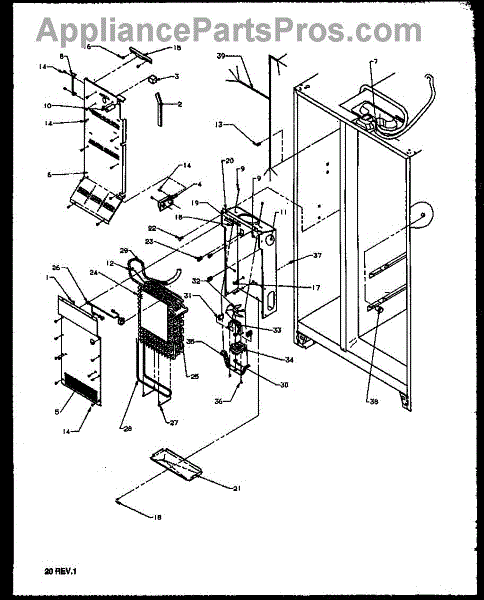

Parts for Amana 2599CIWEA / P1170601W L: 04 - Evap And Air Handling Parts

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Size: 8-32 x .312 inch.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This defrost thermostat helps control the refrigerator/freezer defrost cycle by sensing evaporator temperature and allowing the heater to run when frost removal is needed. Replaces a failed thermostat to restore normal defrost operation. What it does:

• Closes when the evaporator is cold so the defrost heater can run, then opens when the coil warms to stop defrosting
• Helps prevent excessive frost and ice buildup on the evaporator coil
• Common symptom: visible frost or ice on evaporator, excessive frost buildup, or defrost heater running constantly/ not at all
• Works with the defrost system to maintain efficient cooling performance

• One defrost thermostat

• Disconnect power to the appliance before starting any repair
• Mount on or near the evaporator coil as originally installed; secure wiring away from moving parts
• Inspect the harness and connector for damage; replace if corroded or brittle
• Test for continuity with a multimeter to confirm thermostat function before and after installation

This defrost heater warms the evaporator coil during the automatic defrost cycle to melt frost and clear airflow. Replacing a failed heater helps prevent ice buildup and restores more consistent cooling performance throughout the refrigerator. What it does

• Heats the evaporator during defrost cycles to melt accumulated frost
• Keeps airflow paths clear so temperatures stay stable
• Helps prevent frost-clogged coils that reduce cooling
• Common signs of failure: heavy frost on the back wall/evaporator cover, weak cooling, evaporator fan hitting ice, or ice returning soon after a manual defrost

• One defrost heater

• Disconnect power before servicing; wear cut-resistant gloves
• Access is behind the freezer's rear evaporator cover; remove shelves/bins and the panel
• Defrost heavy ice before removal to avoid damaging the coil or insulation
• Transfer any original mounting clips/insulators and route wires exactly like the original; avoid bending the heating element

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator fan motor drives airflow across the evaporator coils and circulates chilled air throughout the cabinet. Replacing a weak or noisy motor restores proper air circulation, helping stabilize temperatures and overall cooling performance.

• Circulates air across the evaporator and distributes it between the freezer and fresh-food sections
• Helps maintain even temperatures and consistent cooling
• Common symptoms: fan not running or intermittent, loud humming/squealing/rattling from the freezer area
• Presents as weak airflow from vents or a warm refrigerator section while the freezer seems colder

• Disconnect power before servicing to avoid electrical shock
• Access the motor behind the rear freezer panel; remove shelves/bins and panel as needed
• Transfer the existing fan blade, bracket, grommets, and wiring connectors from the old motor if required
• Match wire orientation, secure the motor, ensure the blade spins freely and blows the correct direction before reassembly

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer
