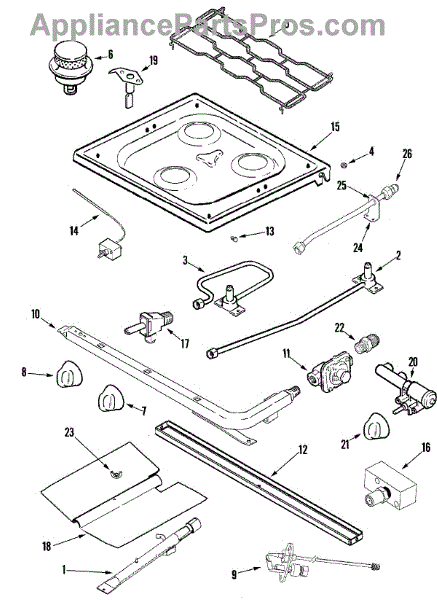

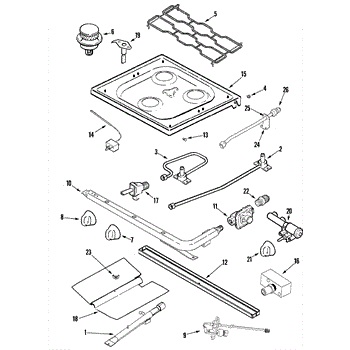

Parts for Amana ALY2289BDB: 04 - Top & Gas Controls Parts

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This silicone grommet fits into the burner grate to cushion and stabilize it on the cooktop. It helps prevent rocking and rattling while protecting the surface from metal-to-surface contact and scratches.

• Provides a cushioned interface between the grate and cooktop to reduce noise and wear
• Helps keep the grate level and securely positioned during use
• Minimizes vibration and metal-to-surface contact to protect the finish
• Worn or missing grommets can cause grate wobble, rattling, or scraping marks

• Turn off all burners and allow the cooktop to cool completely
• Remove the grate; pull out the old grommet and clean the recess
• Press the new grommet fully into the grate opening, aligning as shown in your model's diagram
• Reinstall the grate and verify it sits level and stable; replace multiple grommets if wear is uneven

This burner seal assembly replaces the cooktop burner gasket that sits between the burner and the cooktop surface to help keep spills and debris out of the burner opening and keep the burner seated correctly. What it does:

• Seals the gap around a surface burner to help prevent food and liquid from getting under the cooktop
• Helps the burner sit flush and stable on the cooktop surface
• Reduces the need to lift burners when cleaning by containing spills at the cooktop level
• Can help prevent ignition issues caused by debris buildup around the burner area

• Disconnect power and turn off the gas supply before starting any service
• Remove the burner head and clean the mounting area before installing the new seal to ensure a proper fit
• Press the seal into place around the burner opening so it sits flat and even; avoid stretching or twisting the gasket

Replace a worn, cracked, or missing surface burner knob to restore smooth, precise heat control on your cooktop. This direct-fit knob brings back easy ON/OFF operation and clear setting alignment for everyday cooking.

• Attaches to the surface burner valve stem to turn the burner on/off and adjust flame or heat level
• Common symptoms: knob cracked or stripped, spins freely or falls off, melted/discolored, or missing
• Restores proper pointer alignment and a clean, finished look
• Designed for the surface burner position; match style and shaft orientation to your original

• Allow the appliance to cool completely before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the stem orientation with the new knob and press straight on until fully seated
• Disconnect power or shut off gas before any work near controls

This thermostat knob is the control dial that lets you set temperature or cycle settings on compatible Whirlpool appliances. It restores a secure grip and clear position reference so you can select settings easily. What it does

• Replaces a missing, cracked, or stripped thermostat/control knob
• Provides a tactile grip and visible indicator for accurate temperature or cycle selection
• Helps resolve issues where the control is hard to turn or slips on the shaft
• Fits on the appliance's thermostat/control shaft to restore normal operation

• Disconnect power to the appliance before servicing to avoid electrical shock
• Pull the old knob straight off the control shaft; align the new knob's splines with the shaft and push on firmly
• If the knob is tight or stuck, use a non-marring pry tool and work gently to avoid damaging the control panel
• If the shaft or underlying control is damaged, replace the control assembly rather than forcing the knob

This pilot burner supplies the standing pilot flame for the right-side surface burners on standing-pilot gas ranges. Replacing a clogged or damaged pilot restores consistent ignition and a stable flame for reliable burner lighting.

• Provides the small, continuous flame that lights the right-side surface burners when their valves are opened
• Helps maintain correct pilot flame size and positioning for dependable crossover ignition
• Safe symptom clues: pilot won't stay lit, weak/yellow flame, intermittent or no lighting of the right-side burners, needing a match to light
• Physical damage or blockage from spills/debris can impair operation

• Disconnect power and shut off gas before servicing; allow the appliance to cool
• Access the pilot area; note routing and orientation before removal
• After reconnecting, check all gas connections with an approved leak-detection solution
• Adjust the pilot flame to manufacturer specifications and re-light pilots as required

This oven thermostat regulates your range's cooking temperature. It senses the oven cavity and switches the heat on and off to maintain your set point, helping restore accurate, consistent baking and roasting results.

• Regulates oven temperature by sensing heat and cycling the burner/element to hold the set point
• Symptoms of a failing thermostat include running too hot or too cool
• Food may bake unevenly, be undercooked/overcooked, or the oven may not reach the set temperature
• Preheat may take excessively long or temperature may swing widely
• Heat may not cycle off once the set temperature is reached

• Disconnect electrical power; for gas ranges also shut off the gas supply
• Allow the oven to cool completely before service and use proper PPE
• If your original uses a sensing bulb/capillary, route and secure it exactly as the original and avoid kinks or sharp bends
• After installation, verify temperature with an oven thermometer and perform user calibration only if your model supports it

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: black. Measures about 2 inches in diameter.

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
