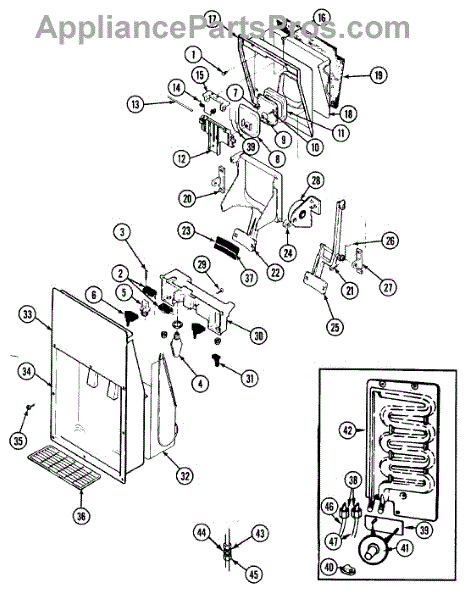

Parts for Admiral GT18X9D3A: 06 - Ice & Water Dispenser Parts

This part has been discontinued by the manufacturer and is no longer available.

The manufacturer no longer makes the duel socket as shown in the photo. It has been replaced by a single socket

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This part has been discontinued by the manufacturer and is no longer available.

Color: Stainless steel

Color: Stainless steel

Color: Stainless steel

This part has been discontinued by the manufacturer and is no longer available.

This genuine replacement screw secures appliance panels and trim so covers, consoles, and components stay firmly in place for safe, quiet operation. It replaces worn or missing fasteners to restore proper fit and reduce vibration and rattling. What it does:

• Secures control panels, trim pieces, or access panels to the appliance frame
• Keeps panels aligned to prevent gaps and light leaks
• Reduces vibration-related noise from loose panels or components
• Helps maintain safe operation by keeping covers and guards properly attached

• The replacement screw shown/listed

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start the screw by hand to ensure proper thread engagement, then tighten securely but do not overtighten

This part has been discontinued by the manufacturer and is no longer available.

Size: 1/4 inch. Nut for plastic water line.

This part has been discontinued by the manufacturer and is no longer available.

Size: 1/4 inch. Nut for plastic water line.

Size: 5/16 to 1/4. Universal John Guess Push On

Compression nut for 5/16" plastic water line.

Ice maker water line: 1/4x 8ft.

This thick water tube routes water between components to supply the dispenser or ice/water systems and helps prevent kinks or pinching for reliable flow. Use it to restore proper water delivery and reduce leaks from damaged tubing. What it does:

• Channels water between supply points and internal components to enable dispensing and ice production
• Thick-walled design resists kinking and abrasion for more consistent flow
• Can address symptoms like intermittent water flow, reduced dispensing, or visible tubing damage
• Helps stop leaks when replacing cracked, split, or hardened tubing

• Shut off the appliance power and water supply before replacing tubing
• Inspect and replace any worn clamps or seals; tight, leak-free connections are required
• Use basic hand tools; avoid sharp bends or pinch points when routing the tube

Ice maker water line: 1/4x 8ft.
