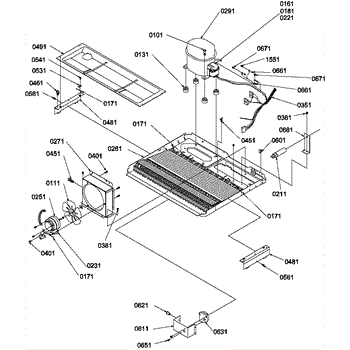

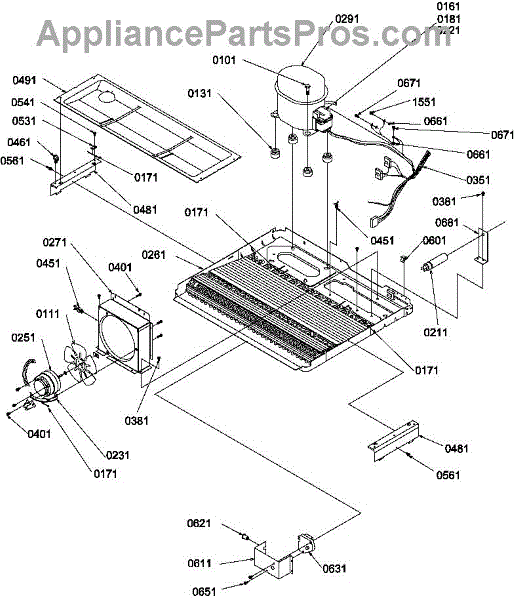

Parts for Amana SG521SBL / P1197002W L: 08 - Machine Compartment Parts

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

A replacement start device that helps the refrigerator compressor start reliably so the cooling system can run. Fits units that use a separate start relay-style device on the compressor. What it does

• Provides the initial boost/current path the compressor needs to start spinning.
• Commonly used when the compressor hums but the fridge doesn't cool or cycles on and off.
• Can fail intermittently, causing clicking, long run times, or no-compressor-start symptoms.
• Works as the electrical start aid for reciprocating refrigeration compressors.

• One start device (single compressor start relay-style unit)

• Disconnect power to the appliance before accessing the compressor or electrical connections.
• Match the part to the compressor terminals and handle the device by the housing to avoid terminal damage.
• Inspect wiring and the condenser/compressor area for overheating or damage while replacing the device.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This timer mounting bracket secures the appliance timer assembly to the cabinet so the timer stays aligned and stable during operation. Replaces a worn or broken bracket to restore proper timer support and reduce vibration. What it does:

• Holds the timer/timer motor firmly in place on the control panel or chassis
• Prevents the timer from shifting or rattling during cycles
• Helps maintain proper gear alignment for accurate cycle timing
• Commonly replaced when bracket is bent, cracked, or missing mounting studs

• One timer mounting bracket

• Basic hand tools required; disconnect power before beginning repair
• Inspect related fasteners and the timer housing for additional damage
• Handle the timer assembly carefully to avoid damaging wiring or connectors

Kit, defrost timer (230 vac)

Screw: 8-16 x 3/8 inch.

Size: 8-32 x .312 inch.
