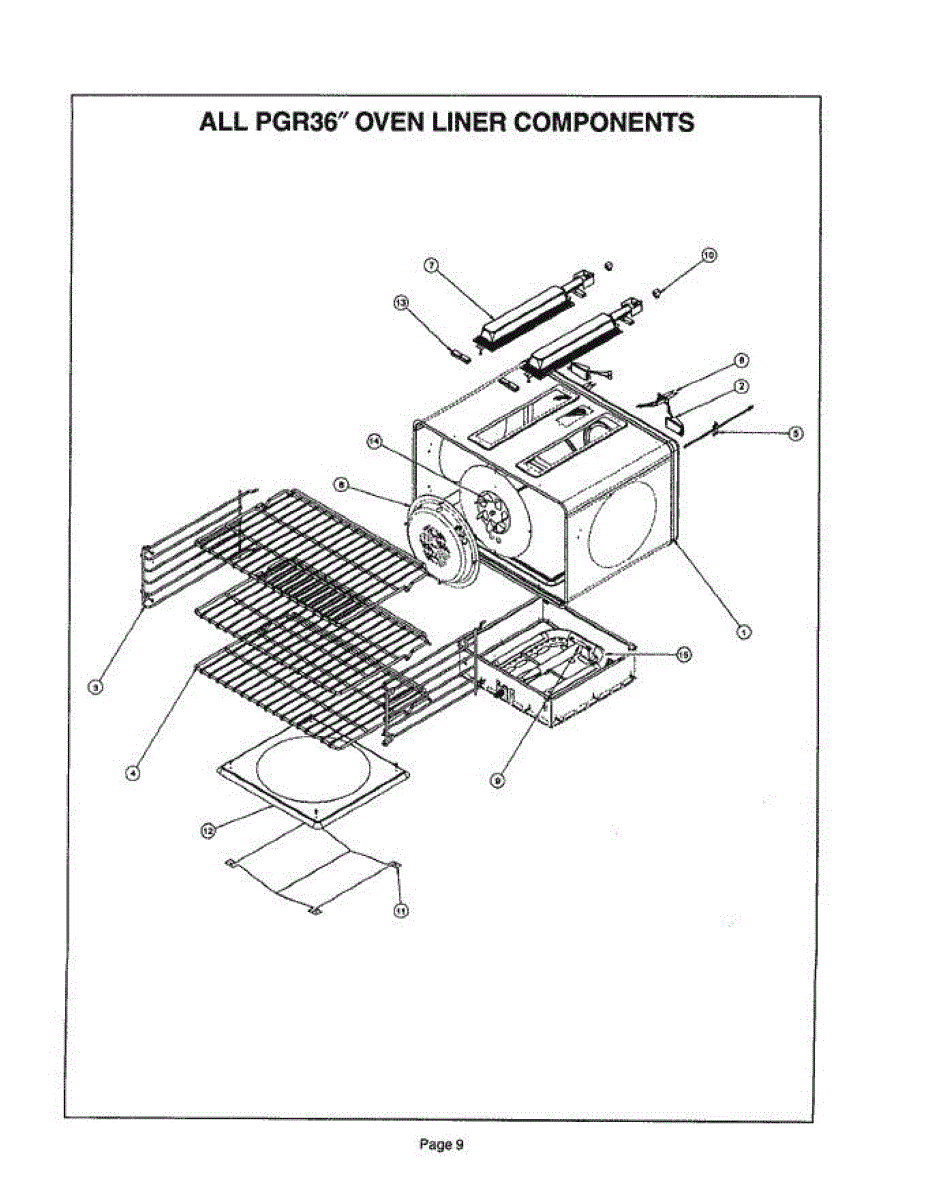

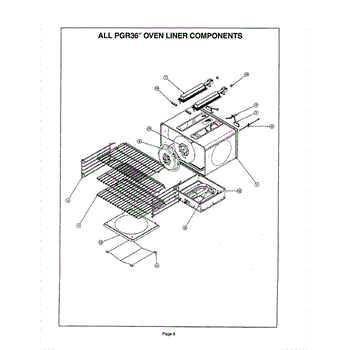

Parts for Thermador PGR366ZS: 08 - Oven Liner Parts

The temperature sensor is an electronic probe that monitors internal appliance temperature and reports it to the control so it can regulate operation. Replacing a failed sensor restores more accurate temperatures and can clear temperature-related error codes. What it does:

• Senses internal temperature via resistance changes and sends the signal to the electronic control
• Helps the control reach and maintain the set temperature during operation
• Common failure symptoms: too hot/cold, won't reach set temp, long/short cycles, temperature error codes
• Can cause preheat to stall or the unit to shut off early (model dependent)

• Includes: 1 temperature sensor

• Disconnect power at the breaker before servicing
• Location and access vary by model; typically mounts with screws or a clip and connects to a 2-wire harness
• Handle the connector and wiring carefully; route and secure away from hot or moving parts
• After installation, clear stored errors and run a test cycle to proper readings

This fan cover protects the appliance's blower assembly and directs airflow to maintain proper ventilation. It helps prevent debris from reaching the fan and supports efficient air movement for reliable operation. What it does:

• Shields the blower/fan from dust, lint, and loose debris that can interfere with airflow
• Directs and channels airflow for consistent ventilation and cooling of internal components
• Helps reduce noise by enclosing the fan area and stabilizing the blower assembly
• Commonly replaced when cracked, damaged, or warped after impact or wear

• One fan cover

• Inspect surrounding seals and mounting tabs before installation; replace any broken clips
• Power off and disconnect the appliance before accessing internal components
• May require basic tools (screwdriver, socket) and removal of adjacent panels for access

A Trident-style surface burner head that directs gas to the cooktop burner for an even, controlled flame. Replaces a worn or damaged burner head to restore consistent heating and safe operation. What it does:

• Directs and shapes the gas flame for proper cooking heat
• Restores even flame pattern when the original burner is warped or clogged
• Helps eliminate weak or irregular flames caused by damaged ports
• Works with the burner base and cap to maintain stable ignition

• Turn off the appliance and shut off gas/electric power before servicing
• Remove grates and burner cap, then replace the burner head; reassemble in reverse order
• Clean mating surfaces of debris or corrosion before installation for proper fit

This bottom cavity cover replaces the removable floor panel under the oven cavity to protect internal components and help contain spills for easier clean-up. It restores the oven's lower interior surface for safe, tidy operation. What it does:

• Covers and protects the oven cavity floor and components from drips, crumbs, and direct heat exposure
• Helps keep the lower oven area clean and makes wiping up spills simpler
• Supports proper airflow path and component protection when installed
• Commonly replaced when the original cover is dented, warped, or damaged

• One bottom cavity cover

• Turn off and disconnect power to the appliance before starting any repair
• Allow the oven to cool completely; use gloves to handle sharp edges
• Installation typically requires removing the oven racks and sliding the cover into position; keep fasteners if present

This OEM replacement part is a motor assembly for ovens. The motor assembly is the main motor that powers the oven fan which is responsible for maintaining and adjusting the temperature in an oven. If the oven is no longer heating properly, turning on, or maintaining temperature, then the motor assembly will need to be replaced.To replace this part, make sure that the oven is unplugged. After it has been powered off, proceed to pull the oven out and away from the wall. Once moved, uninstall the back panel of the oven by removing the panel's mounting screws. After detaching the back panel, locate the motor housing on the back of the oven. Unthread the screws that hold the housing in place. Once removed, locate the mounting brackets that hold the motor in place and remove the screws that attach to the motor. Pull the old motor out of its place and install the new motor. Reinstall the back panel and restore power to the appliance.This genuine replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador brand ovens.

This spark igniter is the burner electrode that creates the high-voltage spark to light the gas. Replacing a worn igniter restores quick, reliable ignition and helps eliminate repeated clicking or having to light the burner manually.

• Generates a spark at the burner to ignite gas during lighting
• Typical symptoms: burner won't light, no visible spark at that burner, intermittent or delayed ignition, or needing a match to light
• Replaces a cracked, fouled, or heat-damaged electrode that no longer sparks reliably
• Provides the ignition spark only; gas flow is managed by the valve

• Disconnect power and shut off gas before servicing
• Remove grates/caps and access the burner; note wire routing and mounting
• Transfer mounting hardware from the old igniter; handle the ceramic insulator gently and keep the tip clean
• Reassemble, restore power/gas, and verify proper spark and burner ignition
