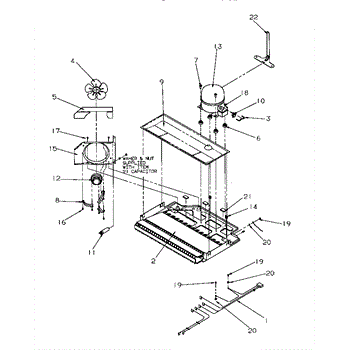

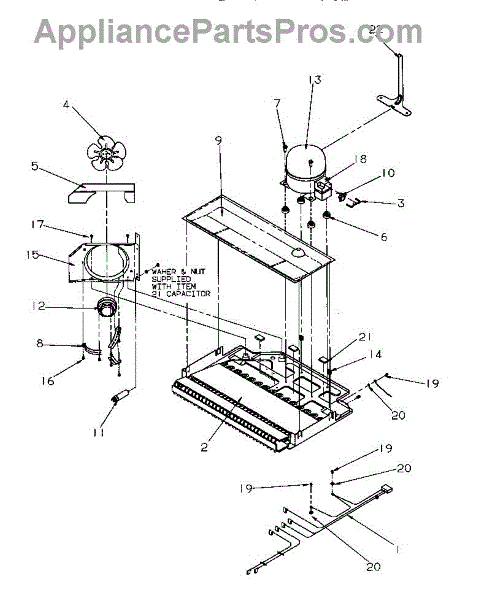

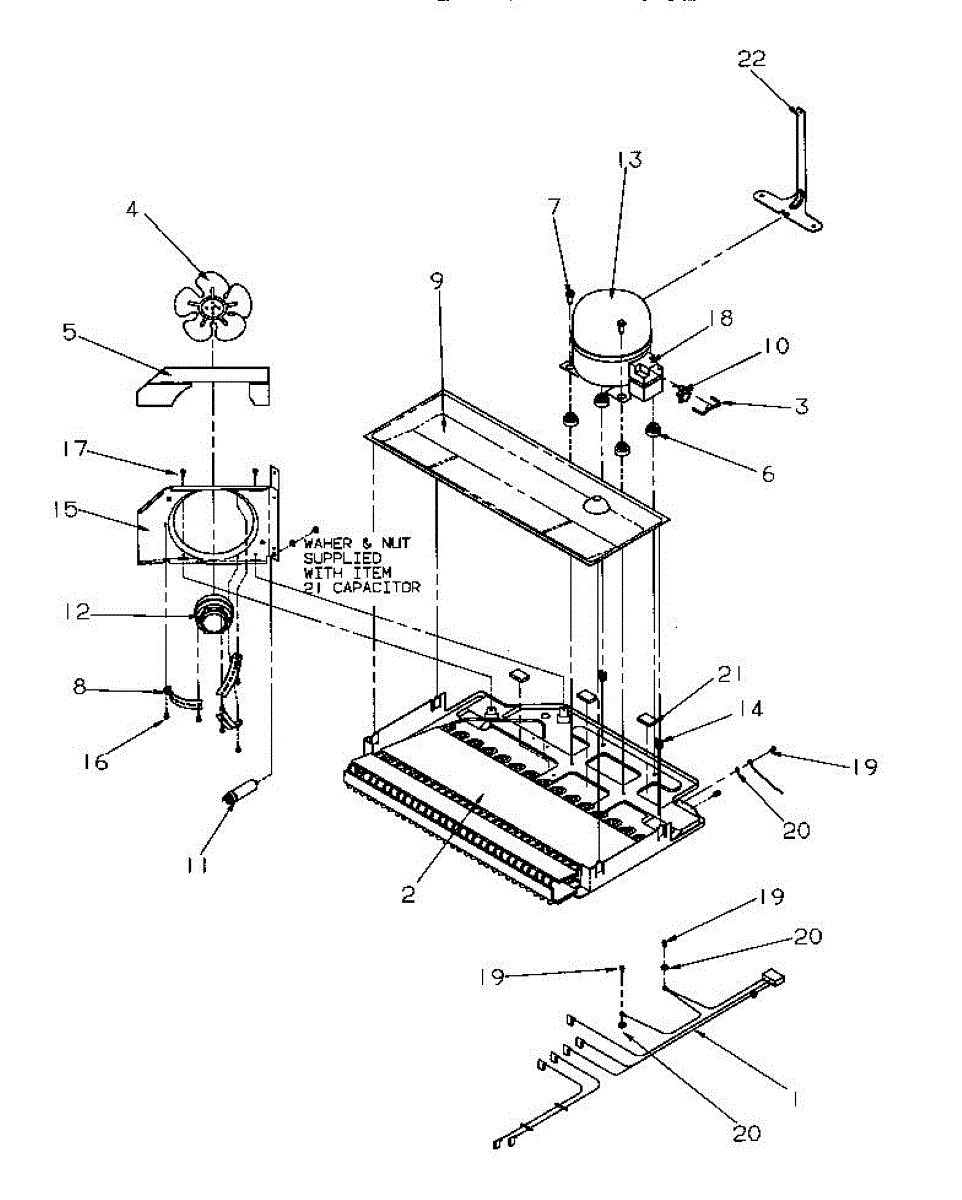

Parts for Amana TR522SW / P1182701W W: 09 - Machine Compartment Parts

This machine compartment wiring harness connects the washer's internal controls and components, restoring electrical communication for reliable operation. Replaces a damaged or frayed harness to help eliminate intermittent power, control, or motor issues. What it does:

• Carries power and signals between the control assembly and internal parts (motors, valves, sensors)
• Restores lost or intermittent connections caused by burnt, cut, or corroded wires
• Helps stop symptoms like no-spin, no-agitate, control errors, or machines that won't start
• Provides factory-style connector ends for a direct, secure fit

• Always unplug the appliance before accessing internal wiring or panels
• Route harness along original clips and secure all connectors fully to avoid loose contacts
• Inspect mating connectors and component terminals for damage before installation

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

A replacement start device that helps the refrigerator compressor start reliably so the cooling system can run. Fits units that use a separate start relay-style device on the compressor. What it does

• Provides the initial boost/current path the compressor needs to start spinning.
• Commonly used when the compressor hums but the fridge doesn't cool or cycles on and off.
• Can fail intermittently, causing clicking, long run times, or no-compressor-start symptoms.
• Works as the electrical start aid for reciprocating refrigeration compressors.

• One start device (single compressor start relay-style unit)

• Disconnect power to the appliance before accessing the compressor or electrical connections.
• Match the part to the compressor terminals and handle the device by the housing to avoid terminal damage.
• Inspect wiring and the condenser/compressor area for overheating or damage while replacing the device.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Screw: 8-16 x 3/8 inch.
