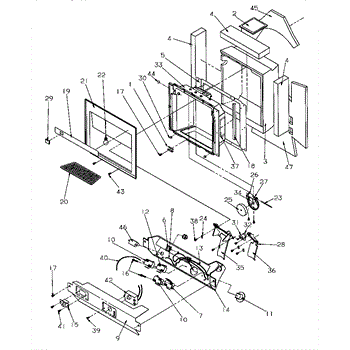

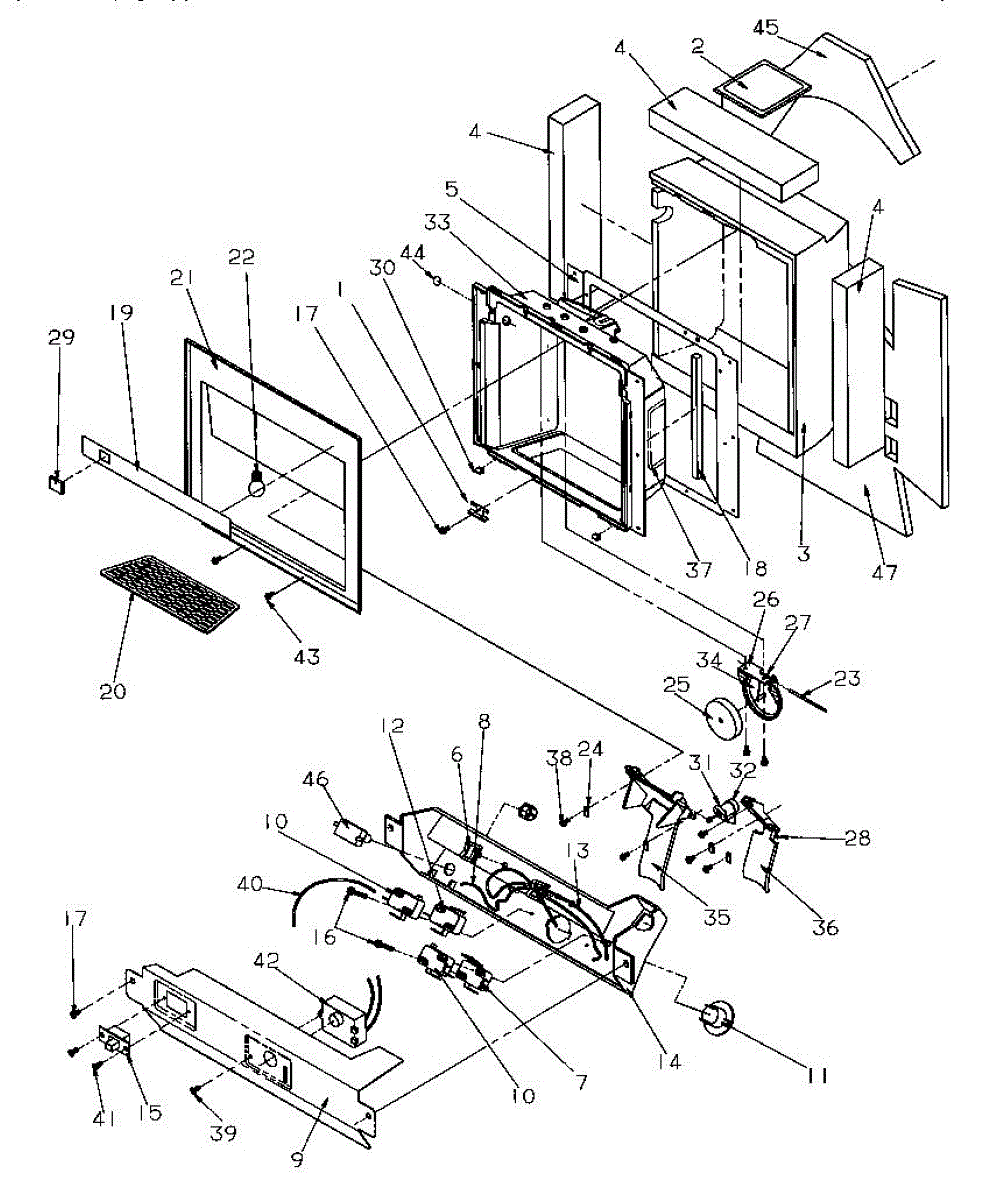

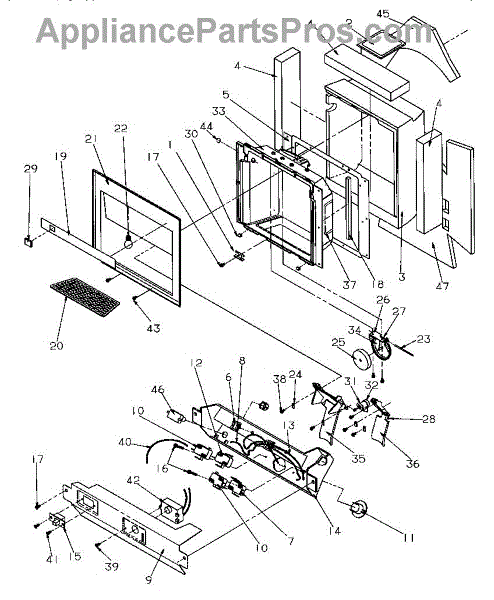

Parts for Amana SRDE27S3E / P1190601W E: 10 - Ice And Water Cavity Parts

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Light Bulb is an OEM part for Whirlpool refrigerators. This part illuminates the water and ice dispenser area, providing visibility and ease of use, especially in low light conditions.

Over time, the light bulb can fail due to normal wear and tear, electrical surges, or damage from vibrations and impacts.

Symptoms of a bad light bulb include:

• The dispenser area not lighting up when activated
• Flickering or dim lighting
• The bulb failing to turn on consistently

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This part has been discontinued and is no longer avaialble.

This dispenser insulation replaces the foam spacer that fits around the refrigerator dispenser housing to help control moisture and temperature at the dispenser opening. Restores proper sealing and reduces visible condensation or frost buildup. What it does:

• Provides thermal and moisture barrier around the dispenser opening to limit condensation and frost.
• Helps maintain proper airflow/temperature at the dispenser area for consistent performance.
• Reduces the chance of water dripping or pooling near the dispenser trim.
• Supports correct fitment of the dispenser assembly to prevent gaps that collect moisture.

• Disconnect power to the appliance before starting any service.
• Access typically requires removing the dispenser trim or door panel—follow the OEM service manual for step-by-step guidance.
• Handle foam/insulation carefully to avoid tearing; ensure full contact and alignment with surrounding housing.
