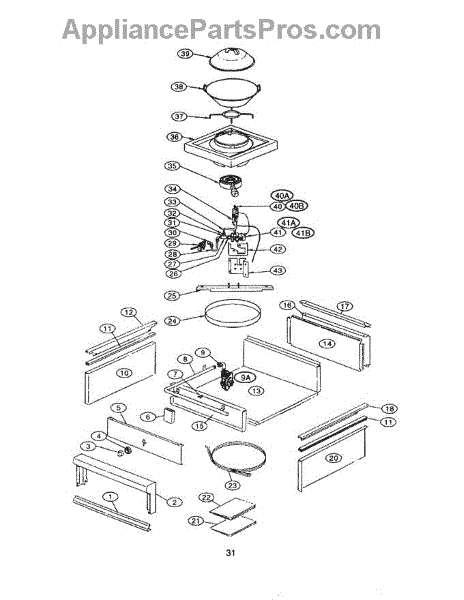

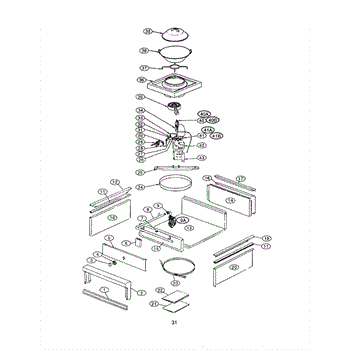

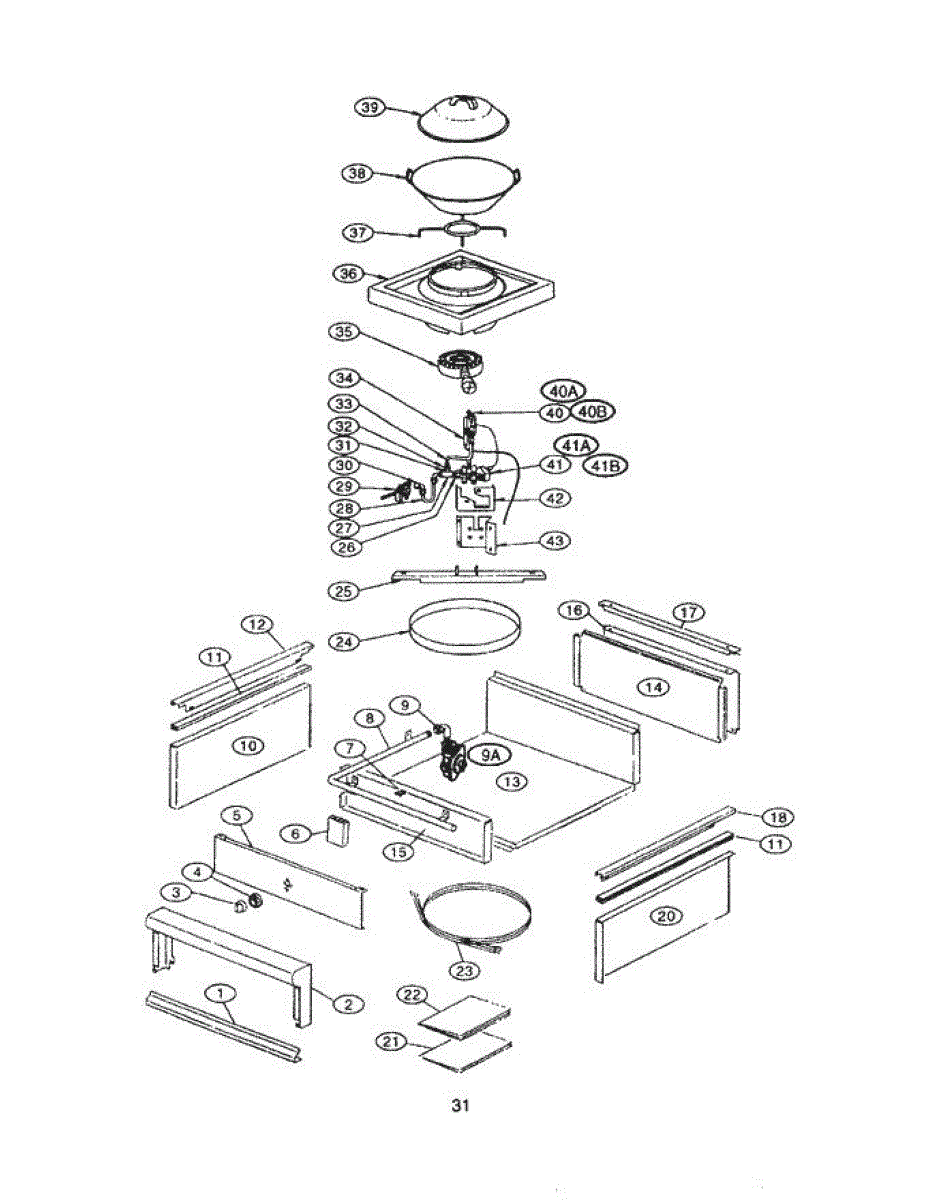

Parts for Thermador GP24WKS: 30 - Burner Box Parts

The Re-Ignition Spark Module is an OEM replacement part Bosch ranges. It is an electronic component that generates sparks to reliably light the burners on a gas cooktop. Consistent sparking is necessary for fully lighting the burner flames and facilitating safe and efficient cooking operation.

Causes of a bad spark module can include normal component wear over time or damage from exposure to moisture or other contaminants. Improper cleaning methods could potentially impact performance.

Symptoms of a bad spark module include:

• Burners not lighting or sparking when the knob is turned
• Unreliable or intermittent lighting requiring multiple attempts
• Burner flames that emit an inconsistent or unstable pattern
• Sparks appearing outside of the burner ring pose a safety risk

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore model

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation

This side-trim gasket seals the edge of the appliance door/trim to help maintain a clean fit and reduce rattling or light air leakage. It restores the door edge seal for a neater appearance and improved closing performance. What it does:

• Seals the door side trim to help reduce noise and prevent light air or moisture intrusion
• Helps maintain proper alignment and fit of the door trim for smooth opening and closing
• Replaces worn, torn or compressed trim gasket that can cause rubbing or gaps
• Supports overall door aesthetics by restoring a continuous seal line

• One side-trim gasket

• Basic trim removal may be required
• Inspect mating surfaces and remove old adhesive or debris before installing the new gasket
• Use gentle pressure to seat the gasket; avoid stretching or over-tensioning
• Disconnect power to the appliance before doing any service that exposes electrical components

This valve access cover protects the appliance valve area from debris and accidental contact while allowing service access when needed. It keeps wiring and valve components shielded and helps maintain safe, reliable operation. What it does:

• Shields the water/valve area and nearby wiring from dust and foreign objects
• Provides an access point for servicing or replacing the valve without removing larger panels
• Helps prevent accidental contact with valve components during normal use
• Reduces risk of minor water intrusion reaching valve components

• One valve access cover

• Disconnect power and shut off the water supply before servicing
• Remove any retaining screws or clips, align cover tabs, and reinstall fasteners securely
• Inspect surrounding seals and mounting points; replace cover if cracked or warped

This 90° elbow fits fluid/gas lines, providing a compact right-angle connection between a 3/8" male NPT fitting and a 5/16" tubing. It helps route lines neatly and prevent kinks in tight appliance spaces. What it does:

• Creates a sealed right-angle transition from 3/8" male NPT to 5/16" soft or hard tubing
• Used where space requires a compact turn in water, refrigerant, or drainage lines
• Can reduce stress on hoses and tubing that would otherwise bend sharply
• Common replacement when fittings leak, vibrate, or become corroded

• Inspect mating threads and tubing for damage; replace any worn seals or ferrules before installing
• Hand-start threads to avoid cross-threading, then tighten with appropriate wrench — do not overtighten
• Use thread sealant or tape only if specified for the application; follow appliance manufacturer guidance
• Disconnect power and water/gas supply and relieve system pressure where applicable before servicing

This part has been discontinued and is no longer available.
