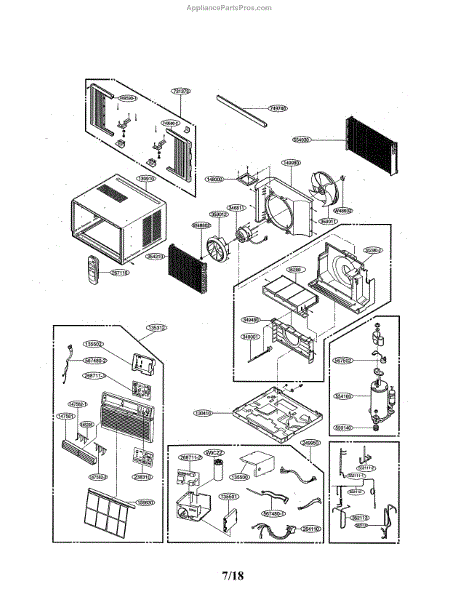

Parts for Lg LW1016ER/00: Air Conditioner Parts

This capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy as needed. Replacing a failing capacitor restores proper motor performance and can stop intermittent operation. What it does:

• Provides the electrical phase shift needed for the motor to start and maintain rotation
• Commonly linked to symptoms such as humming, motor not starting, intermittent spin, or reduced performance
• Supports stable motor operation under load to prevent stalling
• Works as a direct-fit electrical component when matching the correct part number

• One capacitor

• Disconnect power to the appliance before servicing to avoid shock
• Discharge the capacitor before handling; use insulated tools and follow safety procedures
• Inspect wiring and connectors for damage and replace any faulty harnesses

This clamp secures a line or connection inside your appliance, maintaining a tight fit under vibration. Replacing a fatigued clamp helps prevent leaks or disconnections and keeps components anchored so the system operates reliably.

• Holds a line/fitting firmly to keep the joint sealed and secure
• Helps prevent leaks or disconnections at hose/tube connections
• Resists vibration that can loosen fittings during operation
• Replace if bent, weakened, or corroded, or if the connection repeatedly loosens

• Disconnect power and, if applicable, shut off water supply before service
• Note clamp orientation and routing; seat the clamp just behind the fitting bead/stop
• Use the correct tool for your clamp style to compress or tighten evenly
• After reassembly, restore utilities and test for leaks or movement

This cabinet assembly is the outer housing that supports and protects your appliance's internal components, restoring structural integrity and exterior appearance. It replaces a damaged or worn cabinet to help keep parts aligned and secured. What it does:

• Provides the main outer shell that holds internal parts in place and shields them from dust and damage
• Restores proper alignment for doors, panels, and control interfaces affected by a bent or cracked cabinet
• Helps stop rattling, vibration, and unusual noise caused by loose or damaged housing
• Improves the appliance's exterior look when the original cabinet is dented, cracked, or corroded

• Disconnect power and any fuel lines before starting service to avoid shock, burns, or injury
• Cabinet replacements often require panel and control removal; keep fasteners organized for reassembly
• Use appropriate tools and support the cabinet during removal—some steps may require a second person
• Follow the appliance's service manual for model-specific instructions and torque specifications

Restore full remote control function with this replacement remote controller assembly. Replaces a damaged or unresponsive remote PCB and button cluster so the unit responds reliably to power, volume, input and menu commands. What it does:

• Replaces the internal circuit board and button interface that transmit IR/remote signals.
• Fixes symptoms like unresponsive or intermittent buttons, no power or no signal from the remote.
• Restores control of common functions such as power, volume, input selection and menu navigation.
• Useful when buttons are stuck, the remote was dropped, or the internal electronics are damaged.

• Remove batteries and disconnect power from the appliance before replacing the assembly.
• Handle the PCB by its edges to avoid damage from static or oils; keep small screws and clips organized.
• Reassemble the remote housing carefully to avoid pinching ribbons or misaligning buttons.

The Display PCB Assembly is an OEM part for LG microwaves. Located behind the control panel, it houses the critical electronic components that power the display screen and control functions. The PCB assembly is designed to interface the control inputs and outputs with the microwave's operational systems.

Causes of a failing PCB can include moisture damage, component failure due to power surges, or cracks/breaks from accidental impact over time.

Symptoms of a bad Display PCB Assembly include:

• Black or non-responsive touchscreen
• Inability to power on or select cooking presets
• Erratic control behaviors such as random button presses
• Recurring electronic or operational error codes

This OEM LG replacement part is also compatible with Sears/Kenmore microwave models.

This is the main electronic control board for the appliance. It manages and coordinates power to key components, helping the unit run correctly and respond to user settings.

• Regulates and distributes power to compressors, fans, valves, and other loads
• Interprets sensor and user input to control cooling and defrost cycles
• A failed board can cause no power, no cooling, unresponsive controls, or intermittent operation
• Resolve issues like lights/fans not running or error codes related to control faults

• Disconnect power before servicing; capacitor discharge may be required
• Handle the board by edges and avoid touching components to prevent ESD damage
• Photograph/wire-note all connections before removal; move connectors over one by one
• Mount securely and verify all harnesses are fully seated before restoring power

This is an axial fan blade that is used on air conditioners. The axial fan blade helps move the air around to increase circulation. The replacement process is very easy and can be completed within about 15 to 30 minutes. Pliers will be needed.A new axial fan blade may be needed if the fan is cracked, broken, or damaged in any way. Please note that this component is just the fan blade itself, not the motor. If there are any issues with the operation of the fan, it will more than likely involve the motor itself rather than the axial fan blade.This axial fan blade is a genuine LG part and is an OEM part sourced directly from the manufacturer. It is sold individually. This particular axial fan blade is compatible with air conditioners that are manufactured by either the LG brand or the Kenmore brand.

This multi harness is a factory-style wiring harness that connects multiple electrical components to deliver power and control signals, restoring reliable electrical communication for the appliance. What it does:

• Routes power and signal connections between control boards, sensors, switches and motors
• Replaces damaged or broken wiring that can cause intermittent or no power to components
• Common symptoms: appliance won't start, controls unresponsive, intermittent operation, or error codes related to communication
• Restores proper electrical connections when original harness shows wear, frayed wires, or connector damage

• Disconnect power to the appliance before starting any work
• Handle connectors gently; match connector shapes and colors for correct installation
• Route harness along original wire channels and secure with clips or ties—avoid sharp edges and heat sources

This multi-wire harness connects the control and several components inside your appliance, carrying power and signals through factory-molded connectors. Replace a damaged harness to restore reliable electrical connections and eliminate intermittent or dead component behavior. What it does:

• Distributes power and control signals between the appliance's control and multiple components via keyed connectors
• Restores secure connections when original wires or plugs are burned, loose, or damaged
• Maintains proper routing and strain relief to help prevent chafing, shorts, and intermittent faults
• Symptoms include intermittent operation, a component not running, failure to start, error codes, or visible heat damage/burnt odor from the wiring

• 1 multi-wire harness assembly

• Disconnect power to the appliance before servicing; turn off water or gas if applicable
• Photograph routing and connector locations before removal; transfer any clips/ties/retainers from the old harness
• Seat connectors fully; do not pull on wires—work by the connector bodies and match keyed plugs carefully
• Route away from sharp edges, moving parts, and hot surfaces; secure with all original clips and tie-downs

The Installation Curtain Kit is an OEM part for LG window air conditioners. This kit contains the side and rear curtains necessary for the proper installation of the AC unit in a window.

Causes of a bad installation curtain kit can include deterioration of curtain material over multiple seasons of use, exposure to weather elements like sun or rain damage, or accidental tearing or punctures.

Symptoms of a bad installation curtain kit include:

• Gaps around the AC unit allowing hot or cold air into the home
• Curtains unable to adequately cover the entire window opening
• Difficulty securing the AC unit firmly in place
• Increased energy costs due to lack of insulation

Replace yours today with this genuine OEM LG kit to ensure correct and long-lasting installation. This curtain kit replacement part is also compatible with Frigidaire, GE, and Kenmore window air conditioners.
