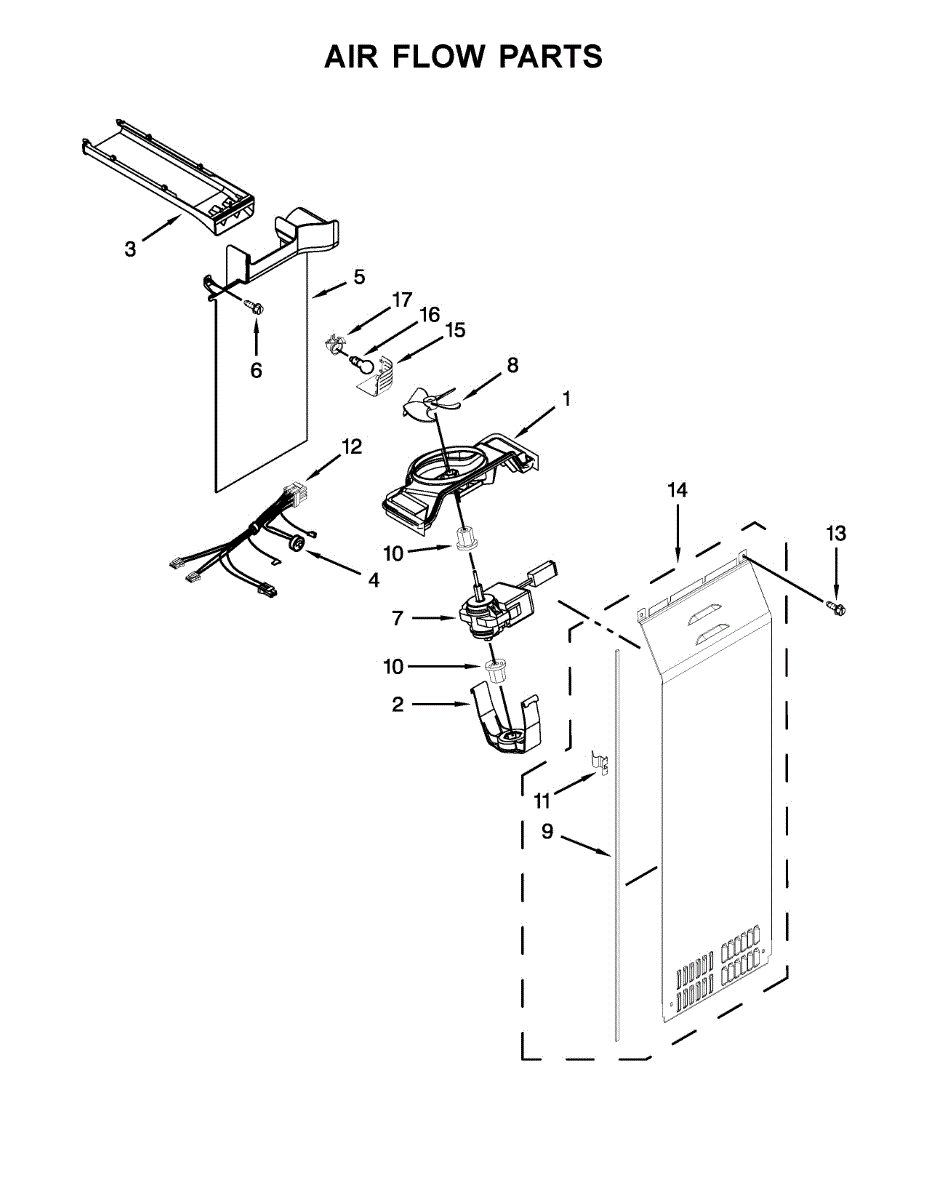

Parts for Whirlpool WRS586FLDW03: Air Flow Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

Instruction sheet included.

Size: 8 x 1/2 ab.

The Motor-Evap DC is an OEM part for Whirlpool refrigerators. As the evaporator fan motor, it is responsible for circulating air within the refrigerator compartment.

Causes of a bad evaporator fan motor can include normal wear and tear over time, overheating due to inadequate ventilation or dust buildup restricting airflow, or failure due to power surges or spikes.

Symptoms of a bad evaporator fan motor include:

• Inadequate or inconsistent air circulation and cooling within the refrigerator
• Frost or ice buildup due to stagnant air
• Unpleasant odors from lack of air movement
• Abnormally high energy usage
• Strange noises emanating from the cooling system

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This motor grommet cushions and secures the appliance motor to the cabinet, helping reduce vibration and noise for smoother operation. It's a direct-fit rubber mounting grommet used where the motor meets the frame. What it does:

• Absorbs motor vibration to reduce noise and movement
• Protects the motor mounting studs and surrounding sheet metal from wear
• Helps maintain proper motor alignment for reliable operation
• Commonly replaced when rubber is cracked, torn, or deteriorated

• Disconnect power before beginning any service.
• Access and remove the motor mounting hardware or panel to reach the old grommet.
• Replace with the new grommet, ensuring it is fully seated on the motor stud and in the mounting hole.
• Reinstall hardware, restore panels, and test the appliance for secure, quiet operation.

This small retainer clip secures components in place to prevent shifting, vibration, or wire movement during appliance operation. Replacing a fatigued or missing clip restores a firm hold and helps eliminate rattles or intermittent connections.

• Holds parts, panels, or wiring securely to their mounting points
• Helps reduce vibration, noise, and wear from loose components
• Common fix when a panel, trim, or harness won't stay attached
• Symptoms can include rattling, loose wiring, or parts popping free

• Unplug the appliance before servicing; shut off water or gas if applicable
• Note original clip orientation and location before removal
• Use needle-nose pliers if needed to compress/position the clip
• Do not overtension; seat fully without deforming mating parts

The Wire Harness is an OEM part for Whirlpool refrigerators. It is made up of bundled electrical wires that connect and transmit signals between different refrigerator components like lights, temperature controls, fans, and more.

Causes of a bad wire harness include short circuits due to damaged insulation, loose or disconnected wires, or wires breaking due to normal wear and tear over time.

Symptoms of a bad wire harness include:

• Lights or temperature displays not working properly
• Fans or other mechanical parts failing to run
• Strange electrical smells or sounds coming from the refrigerator
• Components like icemakers or water dispensers malfunctioning

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Bulb-Light is an OEM part for Whirlpool refrigerators. This bulb is designed to illuminate the interior of your refrigerator, making it easier to see and organize the contents.

Symptoms of a failing refrigerator light bulb include:

• Dimming or flickering of the light
• Light not turning on when the refrigerator door is opened
• Inconsistent performance, with the light turning on and off intermittently

Causes of light bulb failure in refrigerators generally involve the bulb reaching the end of its useful life, loose connections in the light socket, or issues with the refrigerator’s door switch that controls the light.

This OEM part is also compatible with other Whirlpool brand appliances, such as Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
