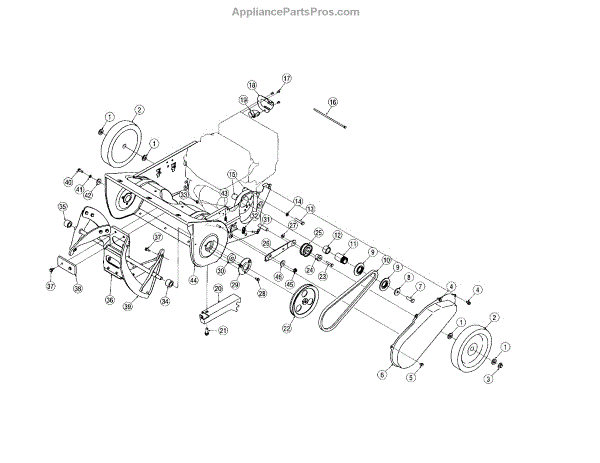

Parts for Craftsman 247887050: Auger And Housing Parts

This replacement part is an engine, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This is a complete engine and is found in many different types of lawn mowers. The engine is arguable the most important part in and machine as it allows the entire appliance to operate. In many cases, the appliance is out of commission if the engine does not work.A new engine might be needed if the current one is not starting, or stops during use. If the user notices sounds or unfamiliar noises coming from inside the engine it might be time to replace it. There are many things that could be wrong inside the engine, be sure to check more specific parts to ensure that the entire engine needs to be replaced rather than only one smaller part. This is a genuine OEM part sourced directly from the manufacturer. This engine is sold individually.

The wheels of a lawnmower and other lawn care equipment take a lot of abuse, even on well cared for machines. They can wear down over time, making it difficult to maneuver the equipment. Eventually, it may be necessary to replace the wheels if they are no longer rolling properly or if they have cracked. This wheel is eight inches in diameter and is easy to replace in just a few minutes. This OEM replacement wheel is sold individually and is compatible with many different types of lawn and garden equipment. These include lawnmowers, snowblowers, tillers, edgers, and log splitters. The wheels work with a range of brands, including Craftsman, Mastercut, Montgomery Wards, Sears, Bolens, MTD, Yard Machines, and Cub Cadet. Keep in mind that this is an individual wheel, so be sure to get as many as needed for the equipment.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.

This is a gasket kit that contains a variety of parts utilized in many kinds of lawn and garden equipment. Each of the parts in the kit is created to seal two surfaces inside the equipment. The components in the kit include a carburetor insulator plate, a carburetor gasket, a carburetor insulator gasket, two carburetor gasket plates, an exhaust pipe gasket, a valve cover gasket, and an oil drain plug washer. If a lawn and garden tool is leaking fuel, air, or oil, these parts can be used to replace the faulty component.A socket wrench or small monkey wrench and a screwdriver will be needed to replace any parts included with the gasket kit. Make sure the lawn equipment is on a flat surface and the spark plug wire has been disconnected. Disassemble any needed components to reach the gasket or other part that needs to be replaced. Put in the new component and reassemble before use.This is an authentic OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual kit. The external gasket kit is designed to be used with snowblowers manufactured by Yard-Man, Huskee, MTD, Yard Machines, Troy-Bilt, Cub Cadet, and Craftsman.

This replacement part is a cylinder head assembly. The cylinder head assembly covers the engine head cylinder and houses the cylinder valves. Over time, the cylinder head assembly can become damaged due to excessive wear and tear. If the engine is no longer running as efficiently as it once did, the cylinder head assembly might need to be replaced. Luckily, this is a fairly simple repair.Before beginning, make sure the engine of the mower has cooled. Once cool, begin by lifting up the hood or engine cover and detach it. Remove the air filter cover. Lift out the air filter. Using a three-eighths socket or wrench remove the blower housing mounting bolts. Detach the oil drain tube and lift off the blower housing. Unthread the bolts that secure the intake manifold and detach the breather tube. Set the carburetor assembly aside. Then unthread the spark plug. Remove the mounting bracket and unthread the exhaust manifold bolts. Pull the manifold free of the muffler. Unthread the valve cover mounting bolts. Pry the cover off with a putty knife and be prepared for some oil to spill. Once the cover is off use the three-eights inch socket wrench to remove the old cylinder head mounting bolts. Pull the old cylinder assembly out of its place and replace it with the new assembly.This genuine OEM part is compatible with MTD brand lawnmowers.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This is a simple hex washer screw that can serve a range of purposes in various types of lawn and garden equipment from well-known manufacturers. The piece will help to fasten various pieces of the machine together. It features a washer that is built into the hex screw, which will provide a larger surface area. This can help reduce damage to the connecting pieces and provide a strong connection.The hex washer screw is made from durable metal and can last for a long time. However, it may still need to be replaced if it becomes damaged or if it is lost when making other repairs on the machine. Wear work gloves when making repairs to any machine.The hex washer screw is sold individually. It is a genuine OEM replacement part and can work with many machines from MTD, Craftsman, Troy-Bilt, and Ryobi.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is an idler pulley assembly for a snowblower or tiller. The idler pulley works together with other pulleys to drive the belt system in an engine. It regulates the belts connecting to the crankshaft to produce movement in various engine accessories. This is a genuine OEM part and is sold individually. This part is compatible with Craftsman, Cub Cadet, Huskee, Troy-Bilt, and Yard Machines. Over time, the pulley components wear down and begin to slip. Damaged bearing devices can also cause wear on the pulley, causing the engine to fail. To replace an idler pulley in a snowblower, remove the ignition key and disconnect the spark plug. Using a socket wrench, remove the mounting bolts securing the belt cover. If required, loosen the tension. Use a ?-inch socket to remove the lower bolts. Pull off the cover and use the wrench to remove the bolt from the pulley. Remove the old part and transfer the bushing into the new part. Position the new pulley, thread the bolt, and tighten. Per model, either realign the auger drive linkage on the bolt and slide on the push nut to secure, or realign and reset the tension spring. Then, recover and reattach.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

This is a snowblower auger assembly that serves as a replacement for broken or damaged augers. The auger features rotating blades that collect snow and send it to the snowblower's chute. If the auger is not working properly, the machine will not work effectively and may have trouble throwing snow. It could also be dangerous if the auger were to break when the machine is in use.The auger may need to be replaced for any number of reasons. It could become damaged or broken, or it may have blades that are worn out over many seasons of use. Replacement will help to ensure the snowblower returns to its normal capabilities. To replace the auger, a 1/2-inch socket, 3/8-inch socket, 7/8-inch socket, and a 9/16-inch socket will be needed.This auger fits many models for MTD, Yard-Man, Husky, Yard Machines, and Troy-Bilt snowblowers. The auger is sold individually. This is a genuine OEM replacement part sourced from the manufacturer.

This rubber pad is a replacement part used on snowblowers. The pad works in conjunction with the auger assembly and moves the snow through the machine and out of the chute. It is held in place with a hex washer screw. The rubber pad undergoes a substantial amount of stress when it is being used. Owners will want to check it for wear and tear. This should be done at least once per season. If there are signs of damage or if the pad has broken, it should be replaced right away. The replacement is fast and simple. It is advised to replace all of the rubber components in the auger at the same time. The genuine OEM replacement rubber pad for snowblowers is sold individually. The compatible brands include Craftsman, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Bolens, Yard-Man.

The snowblower auger paddle is designed for use with various single-stage 21 MTD snow throwers and blowers. This part may also be referred to as the spiral crescent. This paddle is attached to the auger, which rotates when the engine is started. As the auger rotates, the paddle will pick up and throw the snow out of the way. This part may get damaged by debris or some type of accident, or it can wear down over time. Replace a broken or worn out snowblower paddle with a genuine OEM replacement paddle. This is an OEM replacement part from MTD that fits various models of snowblowers. It can be used with compatible models from Yard Machines, Yard-Man, Troy-Bilt, Husky, Ryobi, Bolens, and MTD machines. There are over 150 models in total that this paddle can work with. It is made out of durable rubber and comes sold individually. There are two screws at each end required for mounting, which are sold separately.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.
