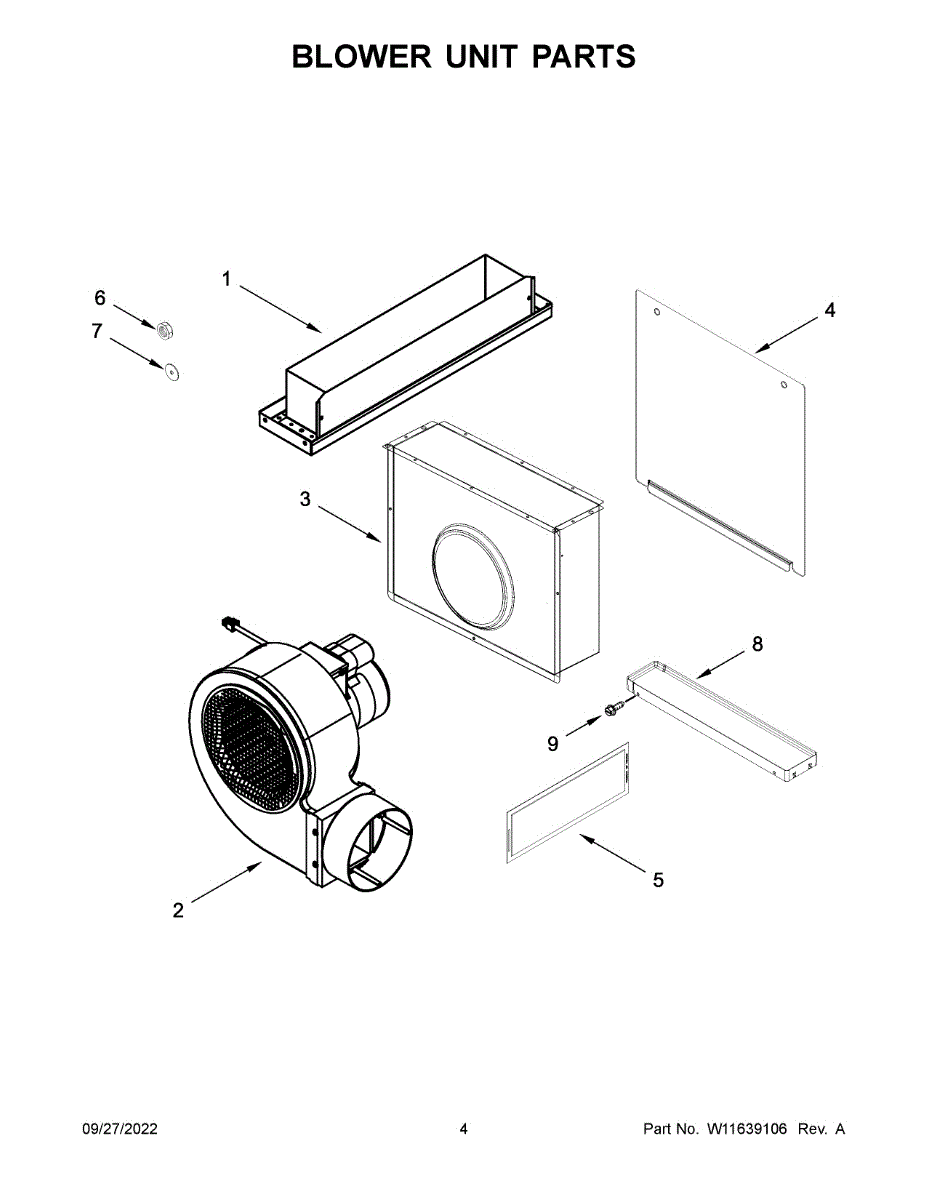

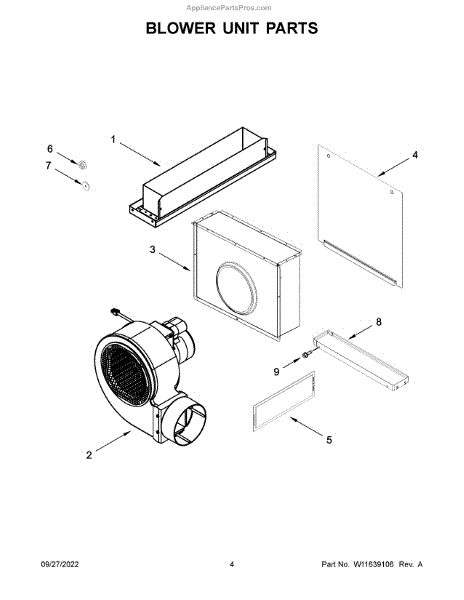

Parts for Kitchenaid KCGD500GSS05: Blower Unit Parts

This plenum-air is the replacement air plenum that routes and directs airflow for proper oven/vent ventilation, helping maintain consistent temperature and safe exhaust flow. It restores correct airflow where the original plenum is cracked or damaged. What it does:

• Directs heated air and exhaust between the oven cavity and ventilation channels to support proper airflow.
• Helps prevent uneven cooking or baking caused by disrupted air circulation.
• Reduces risk of overheating or smoke caused by restricted or broken airflow paths.
• Restores the oven's designed exhaust flow when the original plenum is bent, cracked, or missing.

• Disconnect power (and gas, if applicable) before beginning any repair.
• Handle carefully; metal edges may be sharp. Wear gloves and eye protection.
• Verify alignment with adjoining ducts and ensure seals and mounting points are secure.
• Use the original fasteners or OEM-replacement hardware; do not force-fit or overtighten.

The Blower Motor is an OEM replacement part for Whirlpool cooktops that feature a downdraft ventilation system. It is responsible for exhausting smoke, odors, and steam from your cooking area. It provides powerful and efficient ventilation, keeping your kitchen fresh and free from unwanted cooking odors.

A bad blower fan assembly can occur due to regular use, mechanical failures, or motor malfunctions. If you notice symptoms such as weak airflow, excessive noise, or the fan not working at all, it may be time to replace the blower fan assembly.

Symptoms of a bad blower fan assembly include:

• Weak airflow
• Excessive noise
• Fan not working at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Air Duct is an OEM part for Whirlpool cooktops. It is responsible for venting heat and combustion gases out of the oven cavity during and after the cooking process. The air duct is designed to withstand high temperatures while rapidly expelling air and fumes through the outlet vent.

Symptoms of a bad air duct include:

• Smoking or burning smells from the oven
• Incomplete combustion resulting in inefficient heating
• Reduced airflow causing decreased cooking power

Over time, continued exposure to heat can cause cracks, warping, or damage to the air duct.

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vent Access Cover is an OEM part for Whirlpool cooktops. It is the rear ventilation cover located at the back of the oven cavity. This cover plays an important role in properly directing the exhaust of combustion gases and ventilating heated air outside of the home.

Causes of a bad vent cover can include damage from impact, warping due to overheating, or broken mounting points interfering with a tight seal.

Symptoms of a bad vent cover include:

• Incomplete combustion of fuels resulting in efficiency and safety issues
• Reduced airflow and ventilation compromising the oven function
• Gaps or openings that allow exhaust recirculation or intrusion of debris

 This OEM Whirlpool vent cover is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Grease Filter is an OEM part for Whirlpool downdraft cooktops. It is responsible for removing grease and other cooking residue from the air before it is circulated back into the kitchen.

Causes of a bad grease filter include excessive grease buildup that prevents proper airflow and filtration. Grease filters should be cleaned regularly according to the manufacturer's recommendations.

Symptoms of a grease filter that needs replacement include:

• Reduced or inefficient airflow while in use
• Visible grease buildup or clogging of the filter screens

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Size: 1 inch.

This replacement drip tray catches and channels excess water beneath the appliance to help prevent puddles and floor damage. It restores the original drain path so condensate and minor leaks drain safely away. What it does:

• Collects and directs water away from the appliance base to prevent pooling on the floor
• Helps contain leaks from defrost or drain systems to limit damage to surrounding areas
• Can reduce musty odors and water stains caused by trapped moisture
• Fits into the appliance base to restore original water collection and drainage

• One drip tray

• Disconnect power to the appliance before servicing
• Remove lower access panels or kickplate as needed to access the tray
• Align the tray with the chassis rails or mounting tabs and slide or snap into place
• Inspect surrounding seals and drain paths; if you find corrosion or other damage, replace those parts as needed.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
