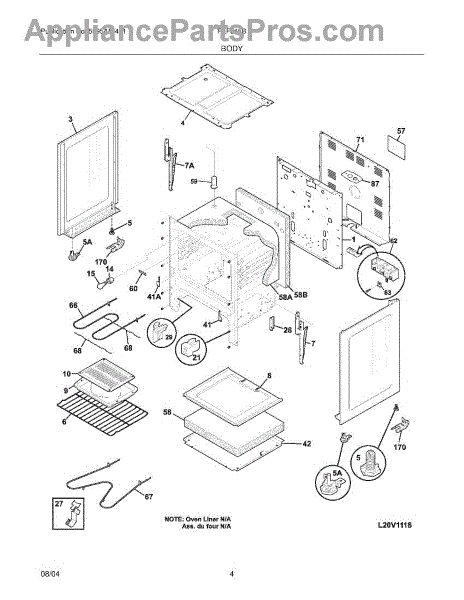

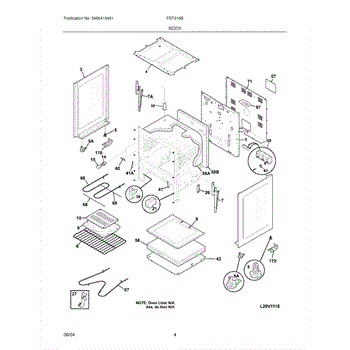

Parts for Frigidaire FEF316BQD: 05 - Body Parts

This burner box is the structural pan beneath the cooktop that supports the surface burner components and shields internal parts from heat and spills. Replacing a damaged box restores proper burner alignment and a stable, secure cooking surface.

• Provides a rigid housing under the cooktop for burner heads, igniters, and related hardware
• Helps contain spills and protect wiring and insulation from heat exposure
• Keeps burners aligned so they sit level and openings match the main top
• Common failure signs: rust-through, cracks, or warping; stripped/broken mounting points; burners wobble or won't secure properly

• Disconnect power and shut off the gas supply before servicing.
• Remove the main top; document locations and transfer burners, igniters, grommets, and brackets to the new box.
• Handle sheet-metal edges carefully; wear cut-resistant gloves.
• After reassembly, restore gas and power, verify ignition, and leak-test any disturbed gas connections.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

The Leveling Leg Assembly is an OEM part for Frigidaire ranges. This part provides stability by allowing users to adjust the height of the range, ensuring it is level and balanced on the floor.

Causes of a bad leveling leg assembly can include wear from frequent adjustments, damage due to heavy loads, or breakage from accidental impacts.

Symptoms of a bad leveling leg assembly include:

• The range being uneven or wobbling
• Difficulty in leveling the range using the legs
• Noise or movement when the range is in use
• Doors not aligning properly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

A small replacement retainer clip that secures trim, panels or components in place to restore proper alignment and stop rattles or loosening. Fits original mounting points for a factory-style repair. What it does:

• Secures refrigerator trim, panels or small components to prevent movement and noise
• Keeps parts aligned so doors and drawers fit and operate smoothly
• Helps maintain grille, kickplate or interior trim attachment where clips are used
• Simple, non-electrical part — no wiring or calibration required

• Basic hand tools usually required; access the clip location before removal
• Remove any panels gently to avoid damaging surrounding trim or fasteners
• Replace only the worn or broken clip; align part fully before snapping into place
• Disconnect power to appliances with electrical components before starting work

This chassis support is a replacement mounting bracket that helps secure the appliance cabinet and internal components for proper alignment and stability. It restores structural support to reduce movement and rattling. What it does:

• Secures the appliance chassis or cabinet to maintain correct alignment
• Stabilizes internal components to reduce vibration and noise
• Helps prevent gaps, sagging trim, or misaligned panels
• Supports proper door and drawer operation by keeping the frame square

• One chassis support mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Use basic hand tools; fasteners may need basic-sized screwdrivers or nut drivers
• Wear gloves to protect hands from sharp sheet-metal edges

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

The Front Drawer Glide is an OEM replacement part for Frigidaire ranges and ovens. It facilitates the smooth opening and closing of the storage drawer typically located at the bottom of the range.

Symptoms of a faulty Front Drawer Glide include:

• Difficulty in opening or closing the drawer smoothly
• The drawer becoming stuck or jammed in its track
• Excessive noise or grinding sounds when operating the drawer
• Visible signs of wear, damage, or misalignment in the glide mechanism

Causes of needing to replace the front drawer glide can include normal wear and tear over time, physical impact or mishandling, or exposure to excessive heat or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and oven models.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Oven wrapper insulation that surrounds the oven cavity to retain heat, protect outer panels, and improve temperature stability—helping reduce exterior heat and support more consistent cooking results. What it does:

• Wraps the oven cavity to reduce heat transfer to the cabinet and outer panels.
• Helps maintain internal oven temperatures for more even baking and cooking.
• Damaged or missing insulation can allow outer surfaces to run hot, cause longer preheat times, or contribute to uneven cooking.
• Reduces the risk of heat-related damage to surrounding cabinetry and components.

• Disconnect power and allow the appliance to cool completely before servicing.
• Handle insulation with care; avoid compressing or tearing the material during installation.
• Reinstall using original mounting clips or hardware; verify proper fit around the oven cavity before replacing panels.

This oven back insulation panel fits behind the oven cavity to help contain heat and protect rear components. It replaces missing or damaged insulation to help restore normal oven heating behavior and reduce heat transfer to surrounding areas. What it does:

• Limits heat loss from the rear of the oven cavity to help maintain cooking temperature
• Helps reduce excessive heat transfer to rear components and cabinetry
• Use when insulation is torn, compressed, burned, or when the oven takes noticeably longer to preheat
• Helps prevent heat-related damage to wiring, electronics, and nearby parts

• Disconnect power to the appliance before starting any repair
• Access may require pulling the range/oven away from the wall and removing a rear access panel
• Wear gloves and a dust mask when handling old insulation; avoid compressing or tearing the replacement
• Follow OEM instructions for securing insulation with the original clips/adhesive or fasteners

This oven insulation surrounds the oven cavity to retain heat and protect nearby components and cabinetry. Replacing a burnt or deteriorated insulation blanket restores temperature stability and helps keep exterior surfaces cooler on your range during cooking.

• Minimizes heat loss for more consistent baking temperatures
• Shields wiring, controls, and adjacent cabinets from excessive heat
• Damaged insulation can cause long preheat times or trouble maintaining set temperature
• Exterior panels or control area may feel unusually hot, or a burnt odor may persist after spills

• Disconnect power at the breaker; shut off gas
• Allow the appliance to cool completely before service
• Access typically requires pulling the range and removing outer panels; note original routing and retainers for reassembly
• Handle insulation carefully; wear gloves, eye protection, and a dust mask to avoid irritation from fibers

This terminal block kit restores a secure, heat-resistant connection point for your appliance's incoming power. Replacing a damaged block helps prevent intermittent power loss and further heat damage from loose or burnt terminals.

• Provides an insulated junction for incoming power leads
• Restores a tight, reliable connection between supply wires and internal wiring
• Helps resolve no power, intermittent power, or visible heat damage at the terminal area
• Replaces cracked, melted, or burned blocks to protect wiring and performance

• Disconnect power at the breaker and verify no voltage is present before servicing
• Label/photograph existing wiring; move one conductor at a time to the new block and tighten terminals securely
• Inspect the cord and wire ends; replace any burnt, brittle, or damaged conductors or lugs before reassembly
• Reinstall covers/strain relief as applicable and verify connections are secure before restoring power

This support plate secures internal components and provides a stable mounting surface to reduce vibration and keep parts aligned. It restores proper fit and helps stop rubbing, rattling, or loose-panel symptoms. What it does

• Provides a flat, stable mounting surface for adjacent components
• Holds parts in correct position to prevent movement and noise
• Helps maintain proper clearances so panels and assemblies fit without rubbing
• Can be replaced if bent, cracked, or missing fasteners that cause vibration or loose parts

• Disconnect power before servicing to avoid shock or injury
• Verify plate orientation and fastener locations before removing old part
• Use existing screws if undamaged; replace damaged fasteners for secure fit
• Handle edges carefully; wear gloves to avoid cuts during install

The Broil Element is an OEM replacement part for Frigidaire ovens. It is located at the top of the oven cavity and is responsible for providing the high heat required for broiling. This element heats up quickly and evenly to cook food from above, giving it a crisp and browned finish.

Over time, the broil element can degrade due to the high temperatures it operates under, as well as normal wear and tear from repeated use. Electrical surges or physical damage from cleaning or moving oven racks can also cause the element to fail. These factors can lead to the element no longer heating up properly or becoming completely non-functional.

Symptoms of a bad broil element include:

• The broiler not heating up or heating unevenly
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when attempting to use the broiler
• The oven taking longer to broil food or not achieving the desired browning effect
• The element not glowing red-hot during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bake Element is an OEM replacement part for Frigidaire ovens that provides the heat necessary for baking. Located at the bottom of the oven, the bake element heats up when electrical current flows through it, converting electricity into heat. This heat is then distributed throughout the oven cavity to cook or bake the food evenly.  Measures approximately 19 ¼ inches x 17 ¾ inches

Causes of a bad bake element can include visible damage such as blistering, cracking, or splitting of the element itself. Over time, exposure to high temperatures can lead to material fatigue and eventual failure. Electrical issues, such as a short circuit or a power surge, can also damage the element, preventing it from heating properly.

Symptoms of a bad Bake Element include:

• Oven not heating to the set temperature
• Uneven cooking or baking results
• Visible damage to the element

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Support for broil heating element.

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This small push-in plug button caps the opening in an oven bottom to keep the cavity clean and finished-looking. It prevents food and debris from falling into the oven base and restores a secure, even interior surface. What it does:

• Covers and seals the hole in the oven bottom to prevent debris buildup
• Helps maintain a finished appearance and reduces hotspots around openings
• Stops loose items from dropping into the oven base and interfering with components
• Simple, low-profile cap designed for a snug, friction-fit installation

• Turn the oven off and allow it to cool completely before installing
• Press the plug button firmly into the opening until it seats flush
• Use a non-marring tool if needed to avoid scratching the oven surface
• Replace with the correct OEM part if the plug does not fit securely or is damaged

Size: 8-18ab x 0.5 inch.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

0.6 fluid ounces

Size: 8-32t x 0.500 inch. Color: Black.
