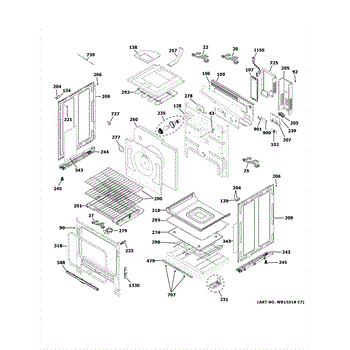

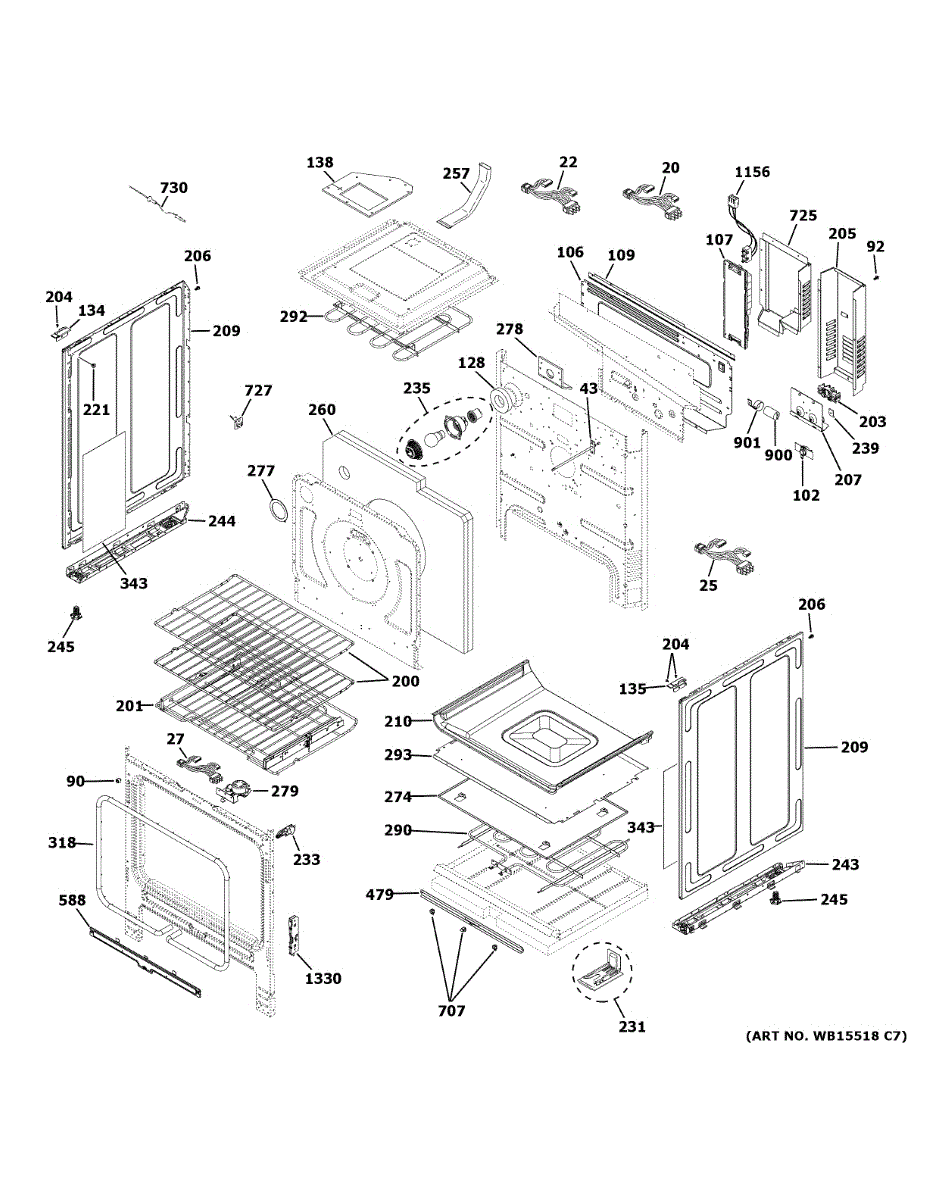

Parts for Ge CES700P3M2D1: Body Parts

The Oven Sensor Kit is an OEM replacement part for GE ranges. It contains critical sensors that monitor the oven's temperature, functions, and safety features during the cooking process. An accurate and fully functioning sensor kit is essential for reliable oven performance.

Causes of a bad oven sensor kit can include failures in individual sensors due to prolonged use and heat exposure over time. Electrical issues affecting communication between sensors and the control board may also require sensor replacement.

Symptoms of a bad oven sensor kit include:

• The oven not heating or cooling as expected
• Inability to properly select or maintain temperature settings
• Error codes or failure messages appearing
• Safety features like the door lock not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement front frame bumper that cushions and supports the appliance's front frame or door trim, helping reduce vibration and prevent metal-on-metal contact—restoring a secure, quiet fit for the door or trim assembly. What it does:

• Cushions the front frame/door trim to prevent wear, chipping, and metal rubbing.
• Helps align and stabilize the door/frame for proper closing and fit.
• Reduces rattling and vibration noise during operation.
• Commonly replaced when the door feels loose, rubs against the cabinet, or makes noise.

• Disconnect power to the appliance before beginning any repair.
• May require removal of the door trim or front panel—use basic hand tools and keep fasteners organized.
• Seat the bumper fully in its mounting location; avoid forcing or deforming the part.

This high-limit thermostat cuts power when oven temperatures climb above safe limits, protecting the appliance from overheating. Replacing a failed limit switch restores normal heating control and safety. What it does

• Opens the heating circuit when internal temperatures exceed the safe threshold to prevent overheating.
• Acts as a safety cutoff in the oven's temperature control system.
• Common symptoms of a failing part: no heat, intermittent heating, or the oven shutting off unexpectedly.
• Replaces the appliance's factory high-limit/limit switch to restore proper safety operation.

• Always disconnect power at the breaker before diagnosing or replacing the part.
• Avoid bending the thermostat or stressing terminals; secure the part to the mounting bracket per service literature.

This is a replacement RC17 machine control and relay mounted on its metal frame assembly. It restores control and relay switching functions so the appliance can complete selected cycles and manage timed operations. What it does:

• Replaces the main RC17 control board and attached relay that switch motors, pumps, or heaters during cycles
• Restores proper cycle sequencing and timed transitions between wash/spin/heating or motor stages
• Commonly used when the appliance won't advance cycles, won't start certain functions, or has intermittent operation tied to the relay
• Matches the original frame-mounted relay configuration for direct fit and stable mounting

• Disconnect power before attempting replacement to avoid shock or component damage
• This assembly typically mounts to the control housing; retain screws and grounding connections during swap
• Handle the control board by edges and avoid touching circuit contacts or components

This induction duct gasket seals the air/heat duct on compatible induction ranges to help maintain proper airflow and reduce heat or steam leakage. It restores the factory seal for safer, more reliable cooktop operation. What it does:

• Seals the duct path beneath the cooktop to help direct hot air and exhaust where intended
• Reduces heat and steam escape that can cause nearby panels to overheat or discolor
• Helps prevent smoke, burning smells, or combustion of debris that may collect in gaps
• Supports proper cooling/venting of internal components for consistent performance

• Disconnect power to the appliance before starting any repair
• Remove cooktop or access panels to reach the duct area
• Clean mating surfaces of old gasket material, grease, and debris before installing the replacement
• Use appropriate hand tools and avoid sharp bending or crushing the gasket during placement

This is the flat wire shelf that slides into your oven's side supports to hold bakeware at the right height. Replace a bent or missing rack to restore safe, stable, and adjustable cooking space.

• Provides a sturdy, level surface for pans and dishes at multiple rack positions
• Slides in and out for easy loading and checking of food
• Helps position food correctly for even baking, roasting, or broiling
• Common symptoms: rack is warped, wobbly, missing, or difficult to slide

• Allow the oven to cool completely; wear gloves to protect hands.
• Pull the old rack to the stop, tilt the front up to clear the stop, and remove.
• Align the new rack with both side rails; insert the rear first, lower the front, and slide fully in.
• Refer to your owner's manual for recommended rack positions and any self-cleaning guidance.

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This terminal block bracket secures the oven/range terminal block to the appliance chassis, keeping power connections stable and reducing strain on wiring. It restores a firm mounting point for safe electrical connections. What it does:

• Holds the terminal block in place so power wires stay securely connected
• Helps prevent wire movement that can cause loose connections or arcing
• Restores proper alignment for terminal screws and wire routing
• Addresses issues like intermittent power, sparks at the terminal area, or a loose-feeling connection

• Disconnect all power at the breaker or unplug the appliance before starting
• Remove outer panels or access covers to reach the terminal area; keep hardware for reassembly
• Inspect terminal block and wiring for damage; replace any frayed or burnt wires before reassembly
• Tighten terminal screws to manufacturer torque and ensure bracket seats flush against the chassis

This bottom oven cavity is the lower oven enclosure that holds racks, cookware, and heating components, restoring a sealed cooking chamber for reliable baking and roasting. It replaces damaged, dented, or corroded lower oven tubs. What it does

• Replaces the lower oven enclosure to restore a sealed cavity for even heating and safe cooking.
• Helps eliminate issues like heat loss, uneven cooking, or smoke from damaged inner surfaces.
• Supports oven racks and heating element mounting locations so accessories align correctly.
• Restores proper airflow and clearance inside the lower oven for consistent temperature performance.

• This part may require removal of surrounding panels and disconnecting electrical components.
• Always disconnect power to the appliance before starting work to avoid shock or injury.
• Check existing fasteners, gaskets, and insulation — replace any damaged items separately as needed.
• Handle carefully to avoid damaging finish or any attached mounting tabs during installation.

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven back insulation panel replaces worn or missing insulation behind the oven cavity to help contain heat, improve cooking performance, and protect surrounding cabinetry from excess heat. Fits as the rear cavity insulation panel. What it does:

• Replaces damaged or missing rear oven insulation that can cause heat loss and uneven baking.
• Helps reduce exterior cabinet heat and hot spots around the oven.
• Limits heat transfer to adjacent components for safer operation.
• Can reduce cooking inconsistencies tied to poor cavity insulation.

• One oven back insulation panel

• Disconnect power (and gas if applicable) and allow the appliance to fully cool before starting.
• Access may require removing the oven from the cabinet or removing the rear access panel.
• Handle insulation with gloves; avoid compressing or bunching the material when installing.
• Reinstall all screws, clips, and panels; test oven function after reassembly.

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

This automatic latch secures the appliance door during operation and releases it when the cycle finishes, helping the appliance run safely and reliably. It replaces a worn or broken latch to restore proper door closure. What it does:

• Secures the door so the appliance can start and complete cycles
• Releases the door at cycle end for unloading
• Commonly used when the door won't stay closed, the appliance won't start, or cycles stop unexpectedly
• Fits into the door/latch assembly location and interfaces with the door strike

• One automatic door latch

• Disconnect power before attempting any repair to avoid shock or injury
• Access usually requires removing the appliance door or front panel; keep fasteners organized
• Test door operation after installation to ensure latch engages and releases smoothly
• If other door components are damaged, inspect and replace them as needed for reliable operation

This bake element assembly replaces a failed oven bottom heating element to restore normal baking and roasting heat. Fits electric ovens that use a separate lower bake element and connects to the oven's element terminals. What it does

• Heats the oven cavity during bake cycles to provide even cooking and browning.
• Replaces a burned-out or visibly broken element that no longer glows when the oven is on.
• Can fix symptoms such as no heat on Bake, undercooked or unevenly baked food, or a visibly damaged element.
• Works as the lower/bake heating element that powers on during standard baking functions.

• One bake element assembly.

• Disconnect power to the appliance before starting any work; lock out or switch off at breaker.
• Removal typically involves accessing the oven cavity, disconnecting the element wires from terminals, and removing mounting screws; follow your oven's service instructions.
• Handle the element carefully to avoid bending or damaging the heating tube; do not install if element is cracked.

This panel side foil is a decorative side trim that restores the appliance's finished appearance and helps protect the cabinet edge from everyday wear. It's a direct-replacement exterior trim piece. What it does

• Covers and protects the outer edge of the appliance panel or door to maintain a clean, finished look
• Hides scratches, nicks, or peeled paint along the panel edge
• Restores consistent appearance after panel or door repair or replacement
• Keeps the cabinet edge sealed from light contact and minor abrasion

• One panel side foil

• High-level replacement: remove the outer panel or door to access the existing foil before installing the new piece
• Use care to avoid scratching the new foil during installation; soft cloths and non-marring tools recommended
• If adhesive or fasteners are present on the original, remove old adhesive residue and follow OEM attachment method

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This capacitor holder is the molded mounting retainer that secures a dryer/motor capacitor in place, preventing movement and ensuring stable connections for reliable motor and control operation. What it does

• Holds the capacitor firmly in the appliance cabinet to prevent vibration and contact with other components.
• Keeps capacitor terminals accessible and positioned for secure electrical connections.
• Helps stop intermittent motor starts or noise caused by a loose or shifting capacitor.
• Provides the correct fit and alignment for compatible OEM capacitors and wiring harnesses.

• One capacitor holder mounting retainer

• Disconnect power to the appliance before beginning work.
• Discharge the capacitor fully before handling to avoid shock.
• Use basic hand tools; inspect surrounding wiring and fasteners and replace any damaged components.

A receiver hinge that secures and supports an oven door hinge pin to keep the door aligned and operating smoothly. Replaces a worn or broken receiver to restore proper door fit and movement. What it does

• Accepts and retains the oven door hinge pin so the door opens and closes correctly.
• Supports door weight to prevent sagging or uneven alignment.
• Helps the door latch and seal properly for safe, consistent operation.
• Commonly replaced when the door drops, rubs, or will not stay closed.

• One receiver hinge

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the oven door or access panel per the service manual for safer installation.
• Use basic hand tools; check hinge pins and mating hardware for wear and replace if needed.
